Camshaft Position Sensor Replacement - Bank 1 (Right Side) Intake

Camshaft Position Sensor Replacement - Bank 1 (Right Side) Intake

Removal Procedure

1. Turn the ignition OFF.

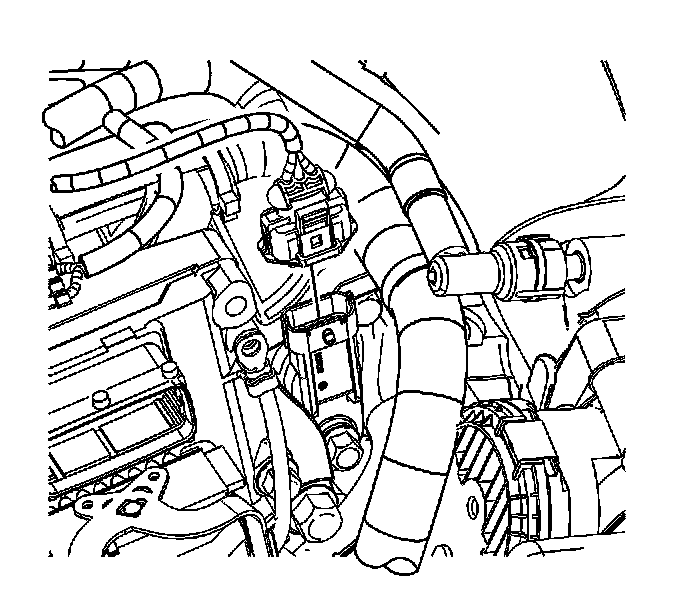

2. Remove the camshaft position (CMP) sensor electrical connector.

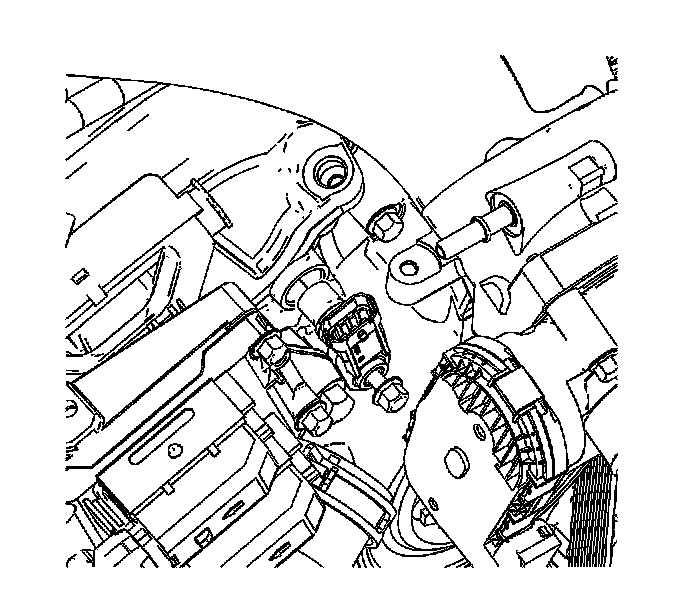

3. Remove the CMP sensor bolt.
4. Remove the CMP sensor.



Installation Procedure





1. Install the CMP sensor.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the CMP sensor bolt.

Tighten the CMP sensor bolt to 10 N.m (89 lb in).





3. Install the CMP sensor electrical connector.
