Camshaft Position Sensor Replacement - Bank 1 (Right Side) Exhaust

Camshaft Position Sensor Replacement - Bank 1 (Right Side) Exhaust

Removal Procedure

1. Turn the ignition OFF.

Important: Do not remove the engine control module (ECM) from the ECM bracket.


Do not remove the ECM redundant ground wire from the ECM.


2. Remove the ECM bracket bolts and reposition the ECM bracket in order to provide access.

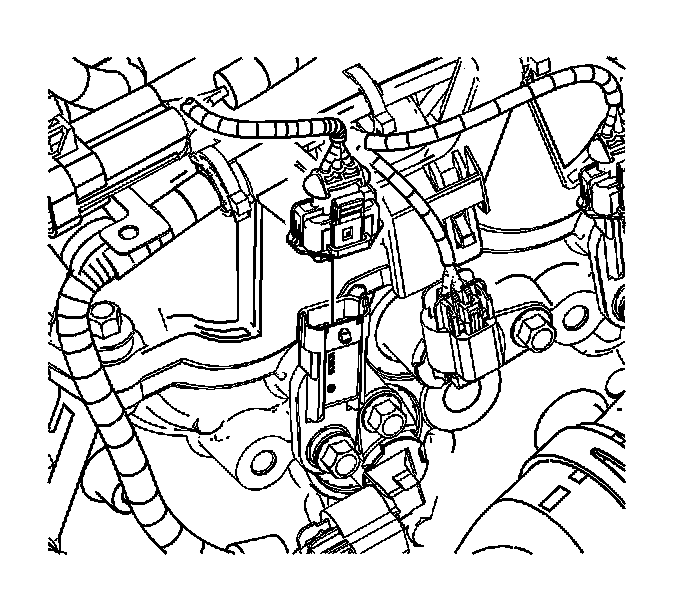

3. Remove the camshaft position (CMP) sensor electrical connector.

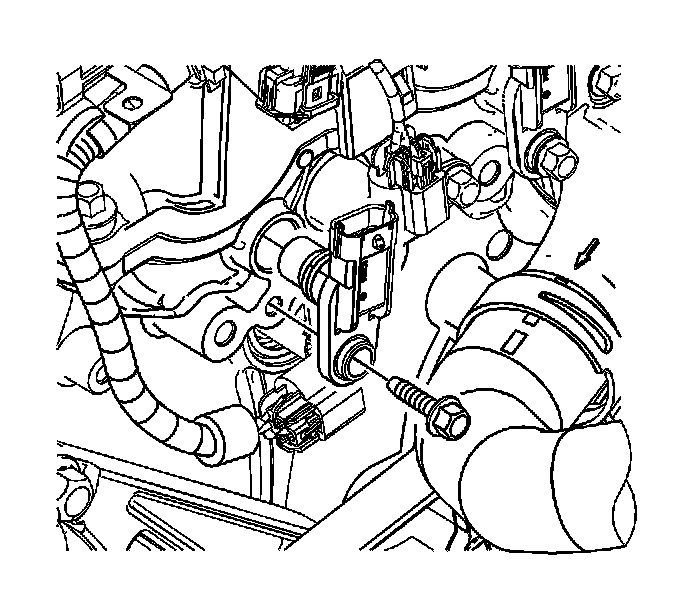

4. Remove the CMP sensor bolt.
5. Remove the CMP sensor.



Installation Procedure





1. Install the CMP sensor.

Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the CMP sensor bolt.

Tighten the CMP sensor bolt to 10 N.m (89 lb in).





3. Install the CMP sensor electrical connector.
4. Install the ECM bracket with the ECM. Refer to Engine Control Module Replacement (Service and Repair).
