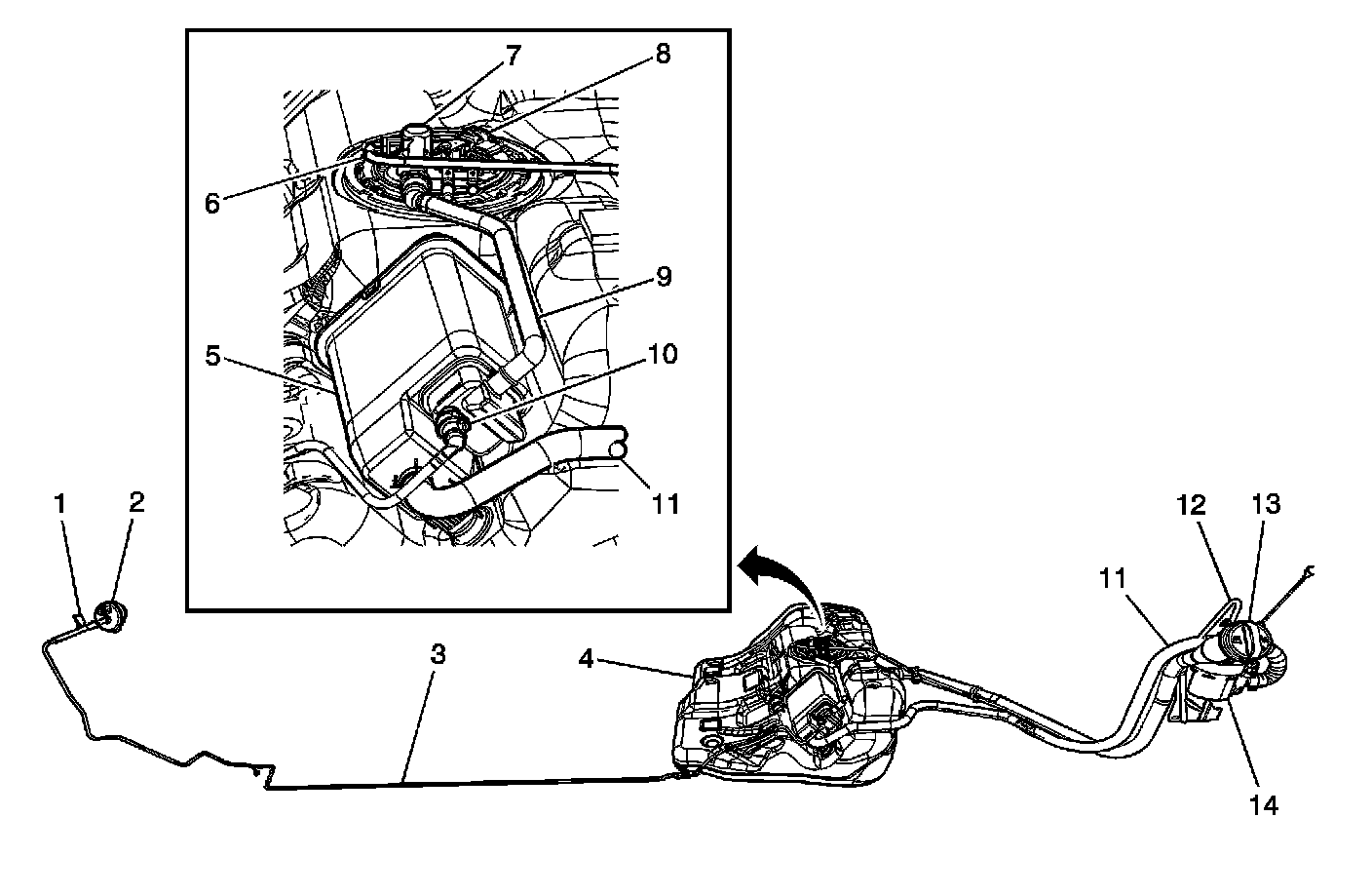

Evaporative Emissions Hose Routing Diagram

Evaporative Emissions Hose Routing Diagram




1 - Evaporative Emission (EVAP) Service Port Connection
2 - EVAP Purge Solenoid
3 - EVAP Purge Hose/Pipe
4 - Fuel Tank
5 - EVAP Purge Canister
6 - Fuel Filler Pipe Vapor Recirculation Hose
7 - Fill Limit Vent Valve (FLVV)
8 - Fuel Tank Pressure (FTP) Sensor
9 - EVAP Vapor Hose/Pipe from FLVV to Canister
10 - EVAP Purge Hose/Pipe Connection to Canister
11 - EVAP Hose/Pipe from Vent Valve Solenoid to Canister
12 - Fuel Filler Pipe Vapor Recirculation Hose
13 - Fuel Filler Cap
14 - EVAP Vent Valve Solenoid
