Camshaft Position Actuator Timing Marks

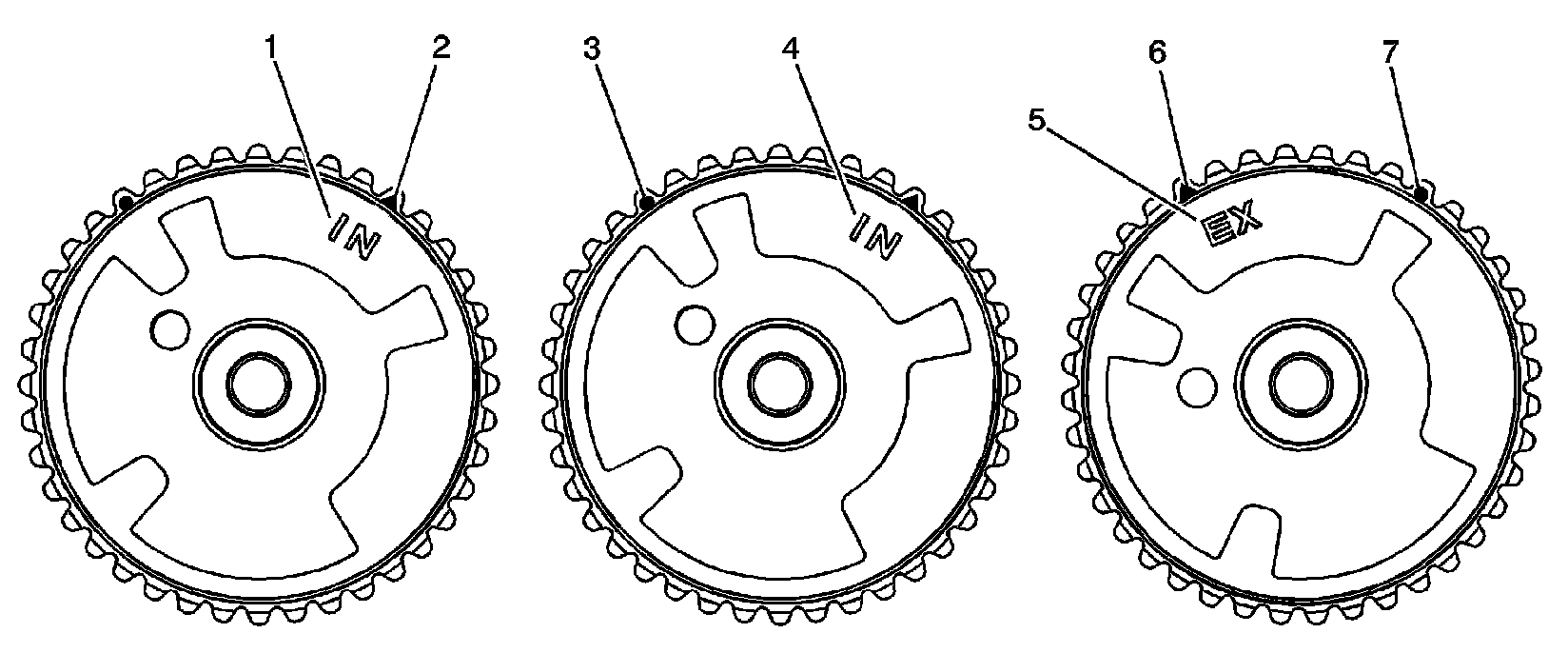

CAMSHAFT POSITION ACTUATOR TIMING MARKS






1. Right Intake Camshaft Position Actuator Identifier
2. Right Intake Camshaft Position Actuator Right Side Timing Mark - Triangle
3. Left Intake Camshaft Position Actuator Left Side Timing Mark - Circle
4. Left Intake Camshaft Position Actuator Identifier
5. Exhaust Camshaft Position Actuator Identifier
6. Exhaust Camshaft Position Actuator Right Side Timing Mark - Triangle
7. Exhaust Camshaft Position Actuator Left Side Timing Mark - Circle
