Turn Signal Switch: Diagrams

Component Connector End Views

Turn Signal/Multifunction Switch X1

Turn Signal/Multifunction Switch X2

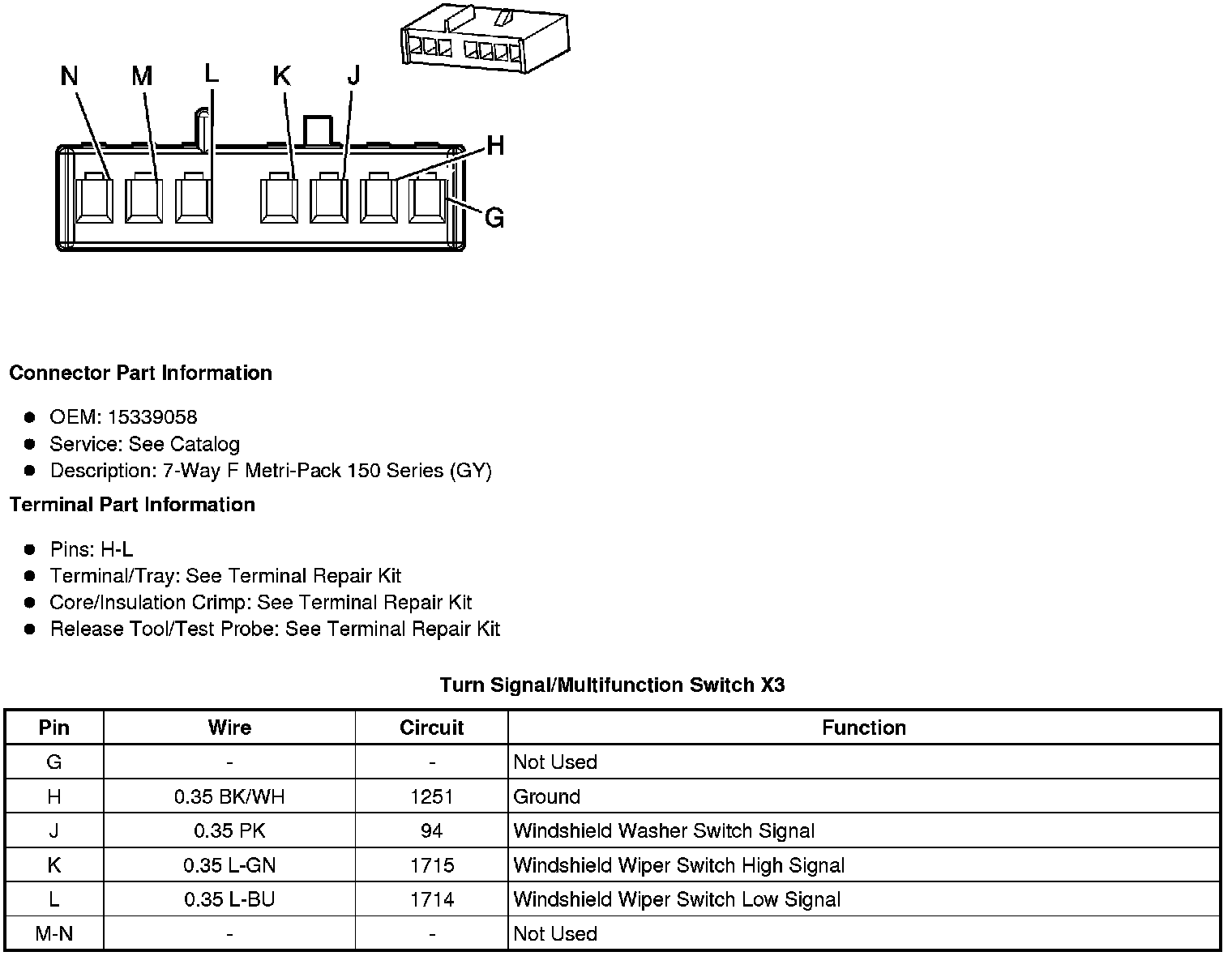

Turn Signal/Multifunction Switch X3
