Fuel Gauge Sender: Diagrams
Component Connector End Views

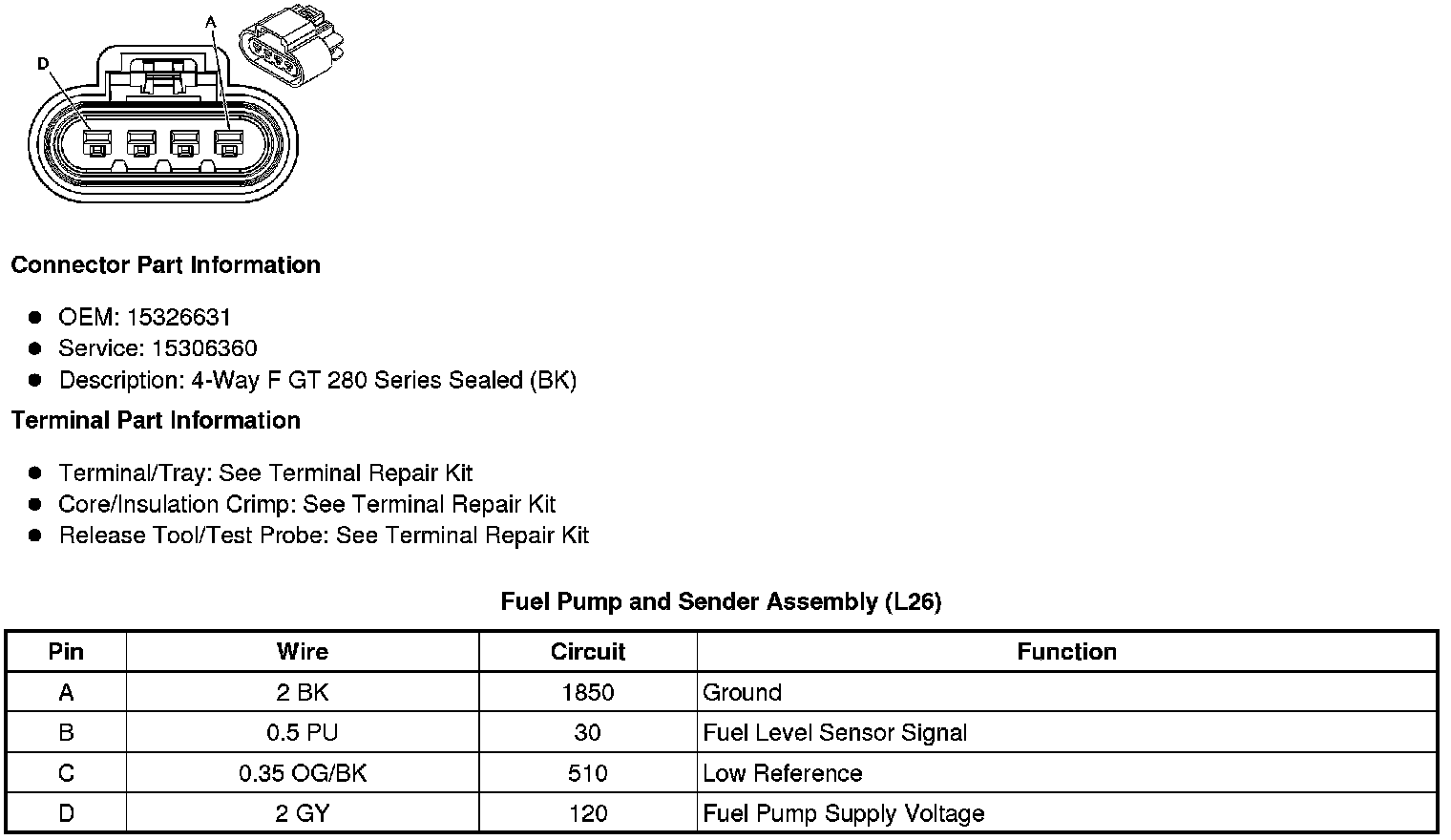

Fuel Pump and Sender Assembly (L26)
Fuel Pump and Sender Assembly (LY7)
