Compressor Clutch: Diagrams



Component Connector End Views

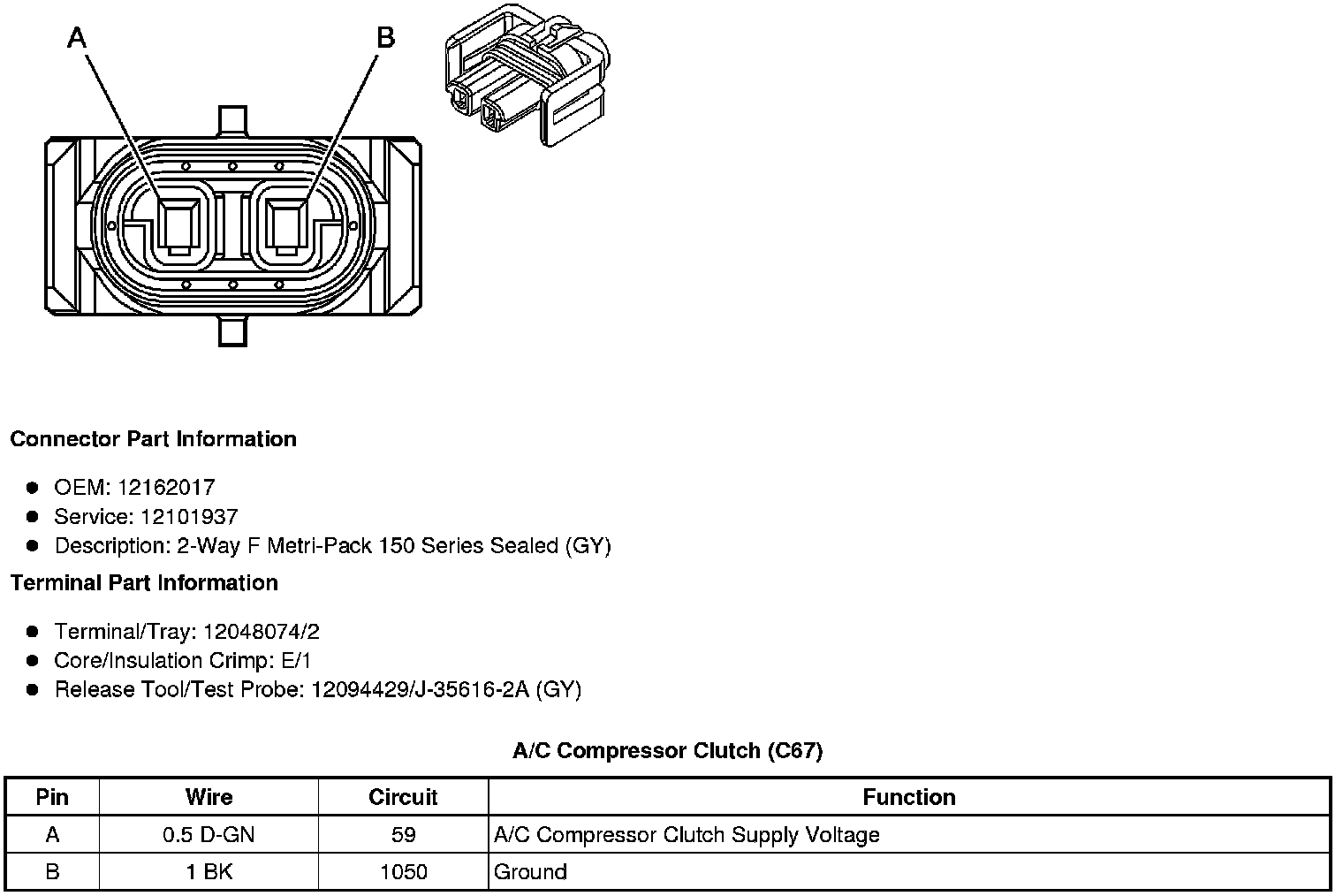

A/C Compressor Clutch (C67)

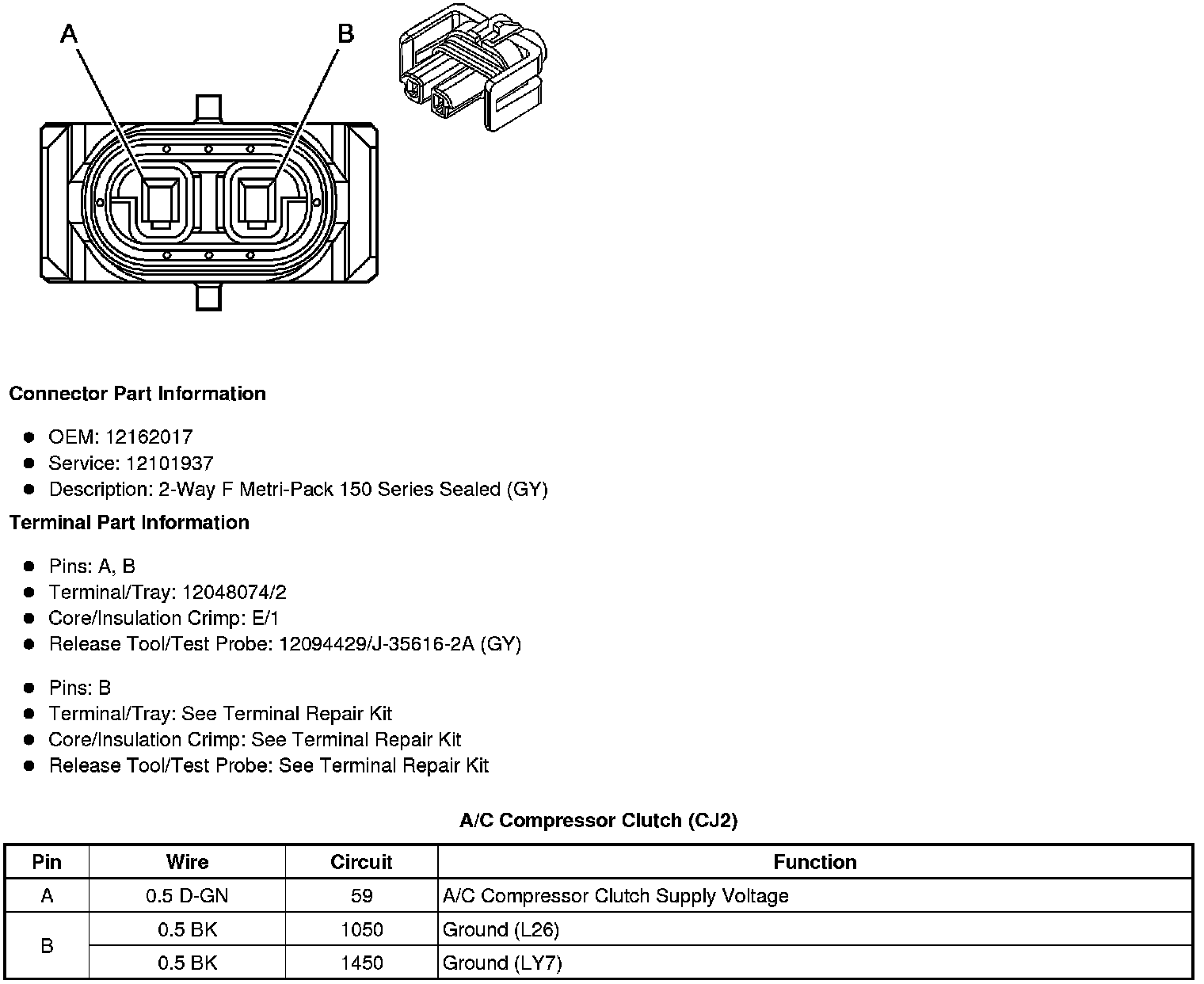

A/C Compressor Clutch (CJ2)
