34. Camshaft Position Actuator Removal - Right Side Intake

Camshaft Position Actuator Removal - Right Side Intake





Notice: Refer to Torque Reaction Against Timing Drive Chain Notice (Torque Reaction Against Timing Drive Chain Notice).

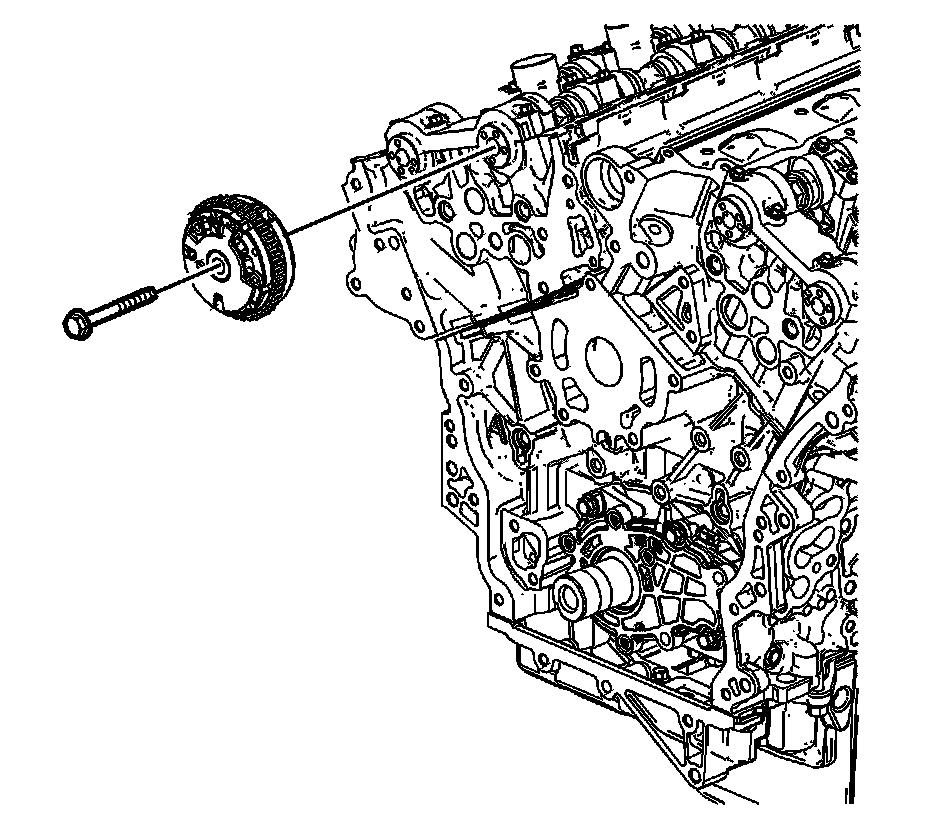

1. Use an open wrench on the hex cast into the camshaft in order to prevent engine rotation when loosening the camshaft position actuator bolt.
2. Remove the right intake camshaft position actuator bolt.
3. Remove the right intake camshaft position actuator.
