Variable Valve Timing Actuator: Diagrams



Component Connector End Views

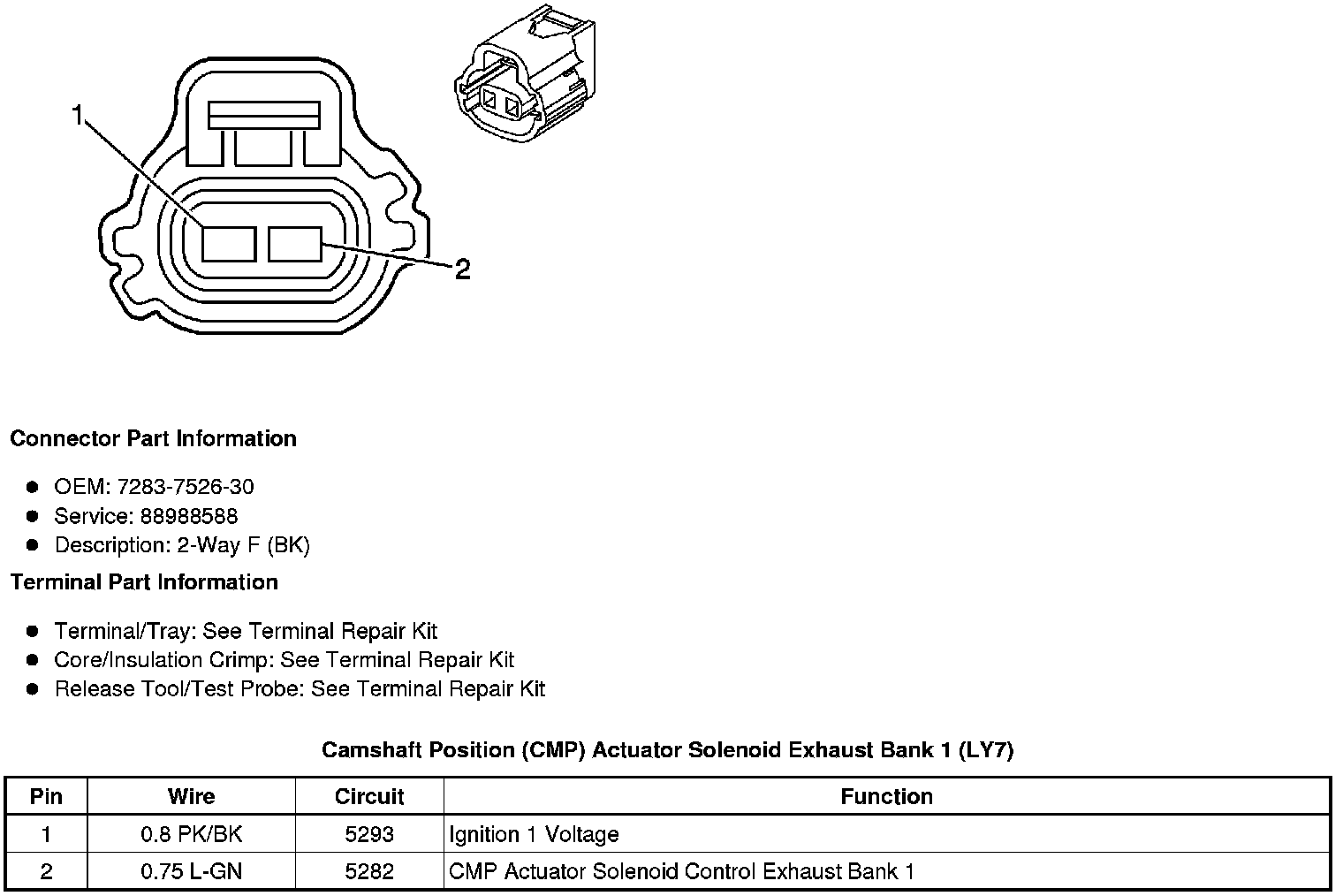

Camshaft Position (CMP) Actuator Solenoid Exhaust Bank 1 (LY7)

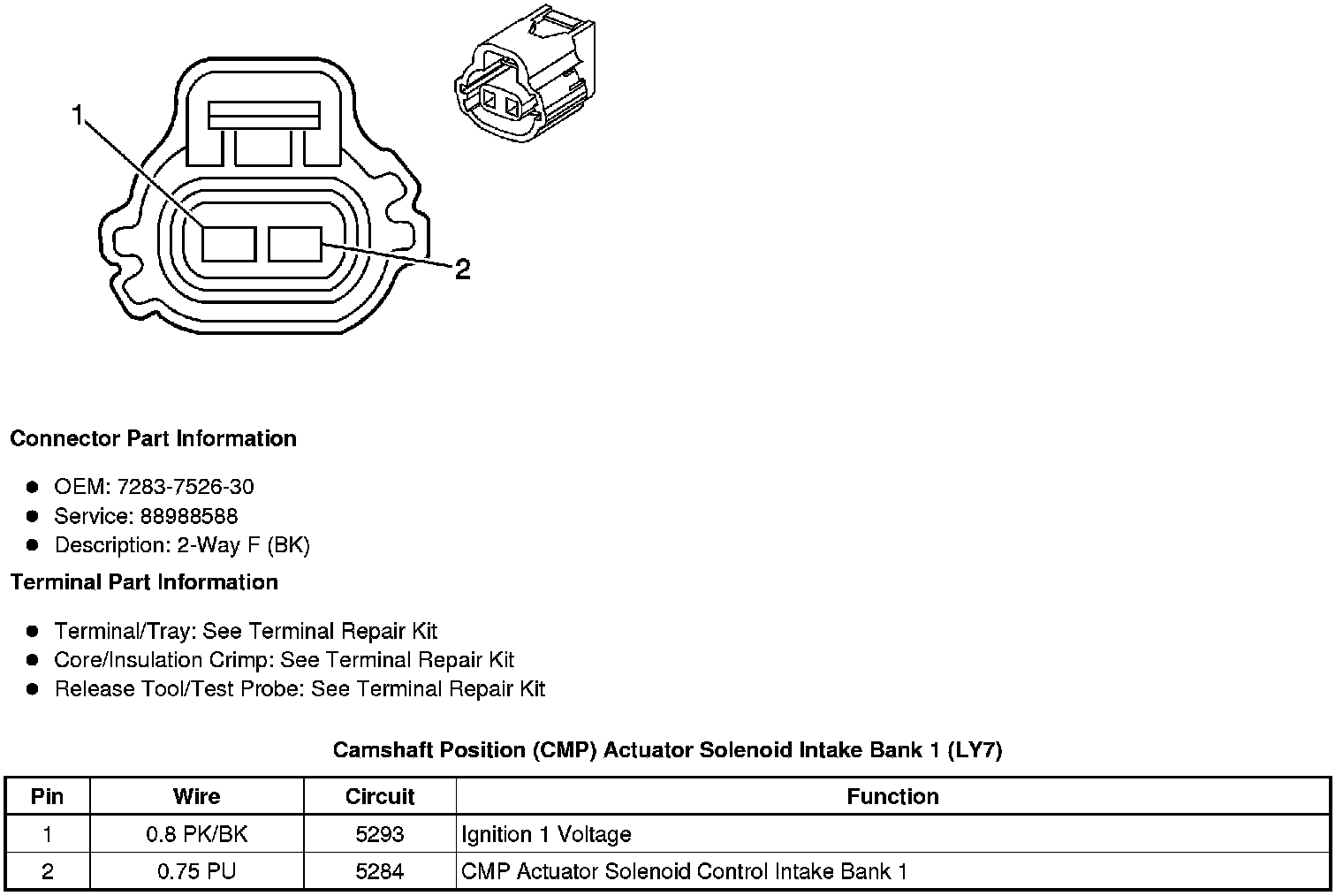

Camshaft Position (CMP) Actuator Solenoid Intake Bank 1 (LY7)






Camshaft Position (CMP) Actuator Solenoid Exhaust Bank 2 (LY7)

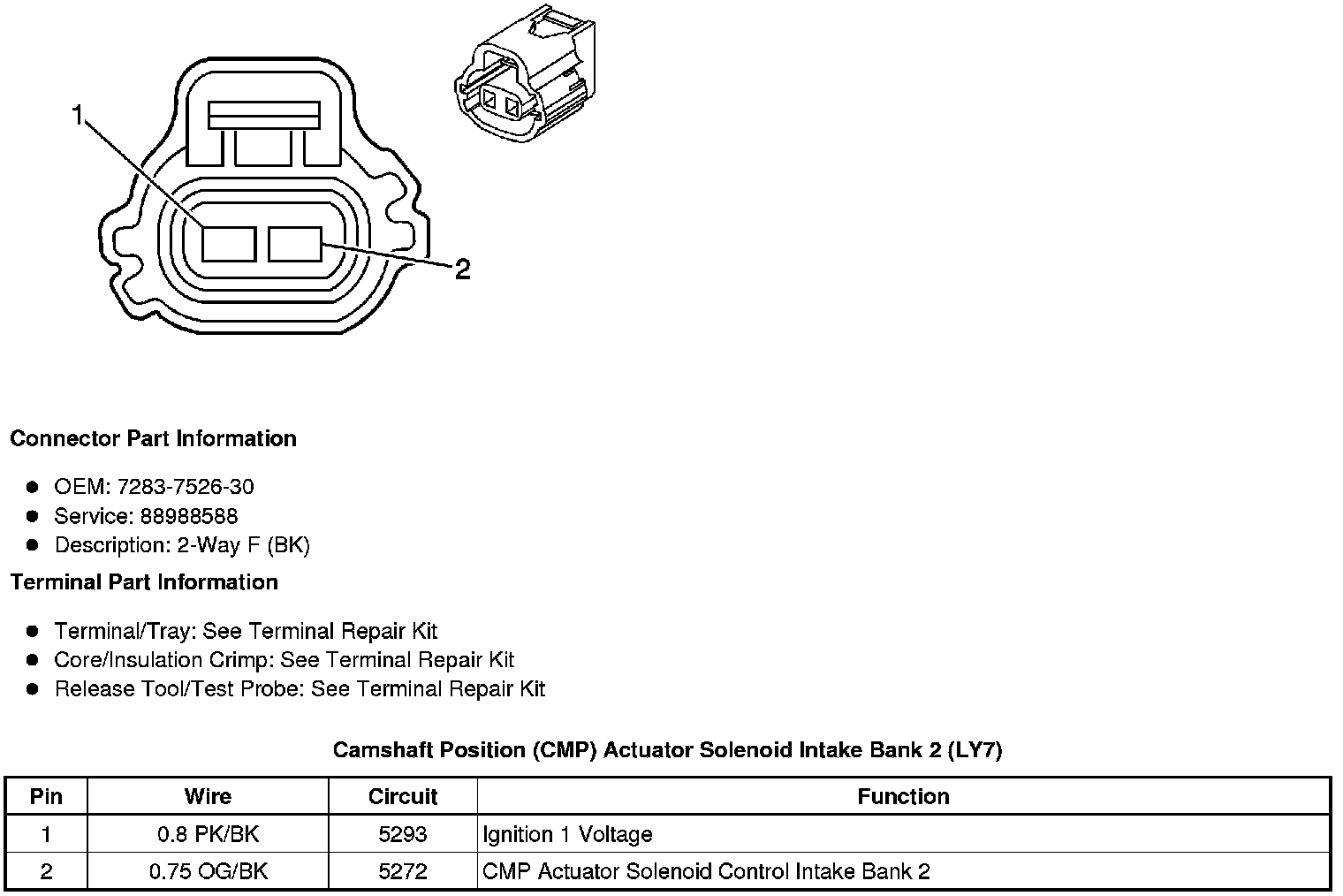

Camshaft Position (CMP) Actuator Solenoid Intake Bank 2 (LY7)
