Instrument Panel Harnesses

Harness Routing Views

Console Harness




1 - Auxiliary Power Outlet
2 - X240

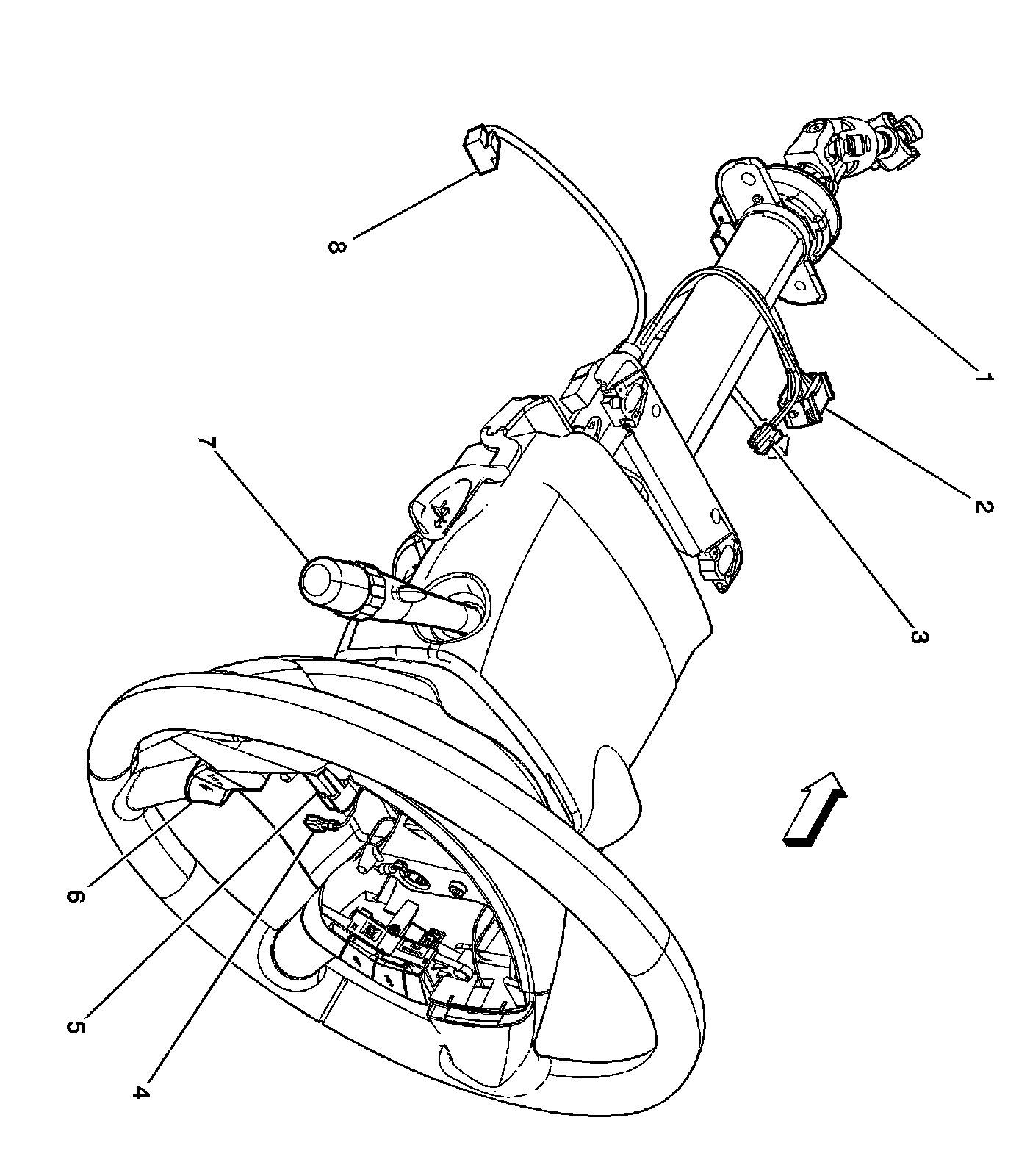

Steering Column




1 - Steering Angle Sensor
2 - X201
3 - A/T Shiftlock Solenoid Connector
4 - Horn Switch Connector
5 - X277
6 - Steering Wheel Controls
7 - Multifunction Accessory Switch
8 - Body Control Module (BCM) Connector
