Transmission Control Systems



Automatic Transmission Controls Schematics

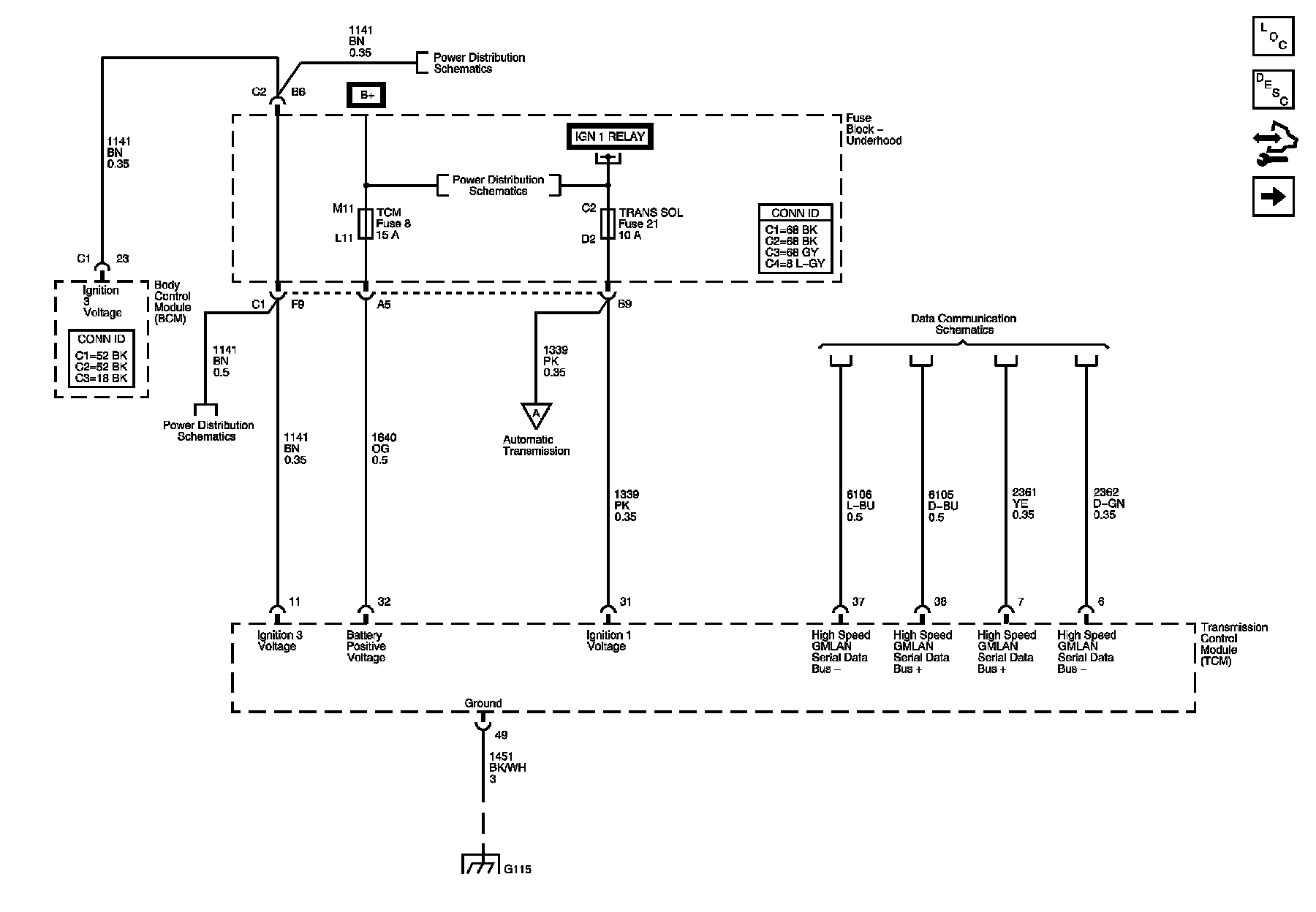

TCM Power, Ground, and Serial Data - LY7

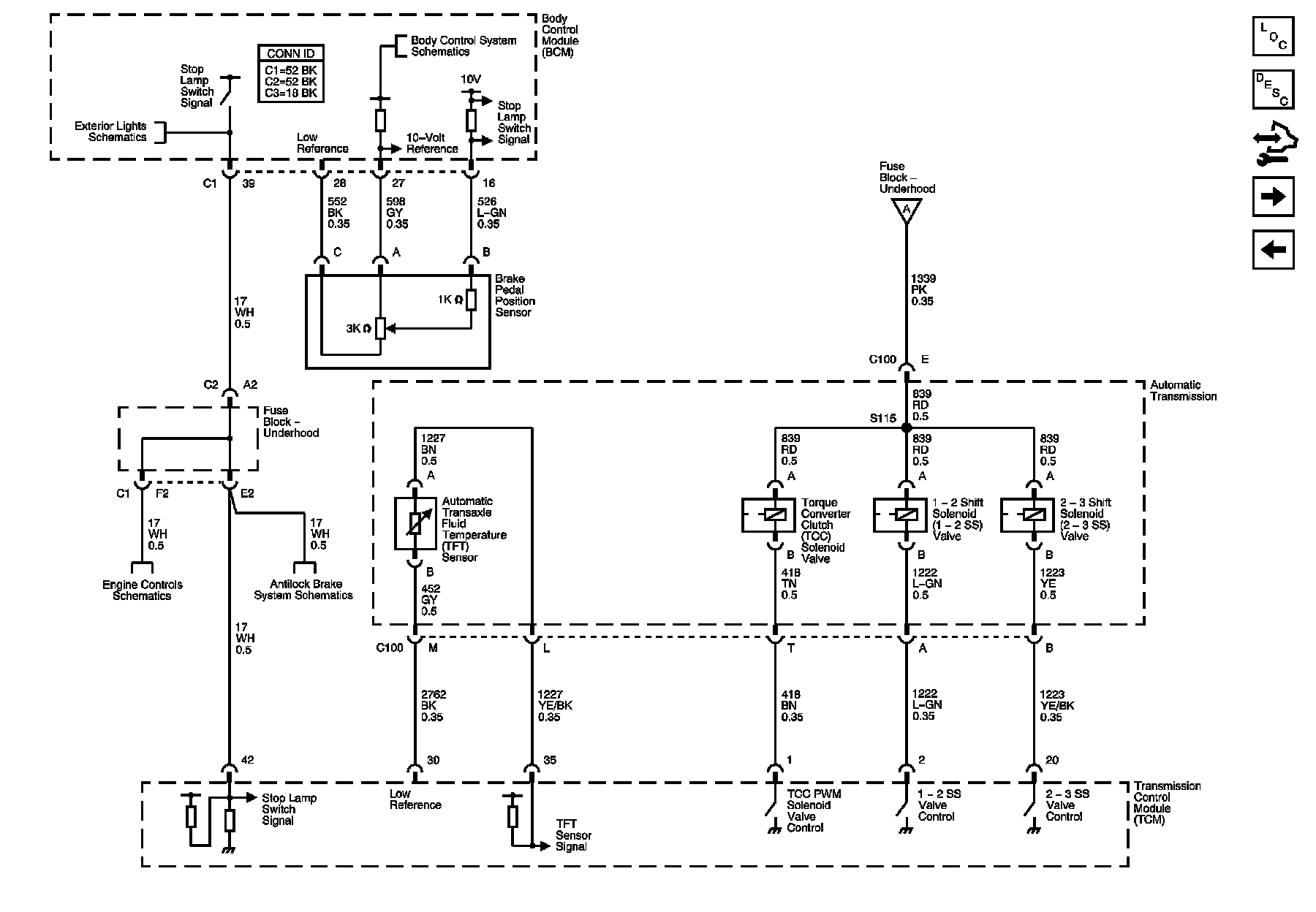

Shift and TCC Solenoid Valves, TFT Sensor, and Stop Lamp Switch - LY7

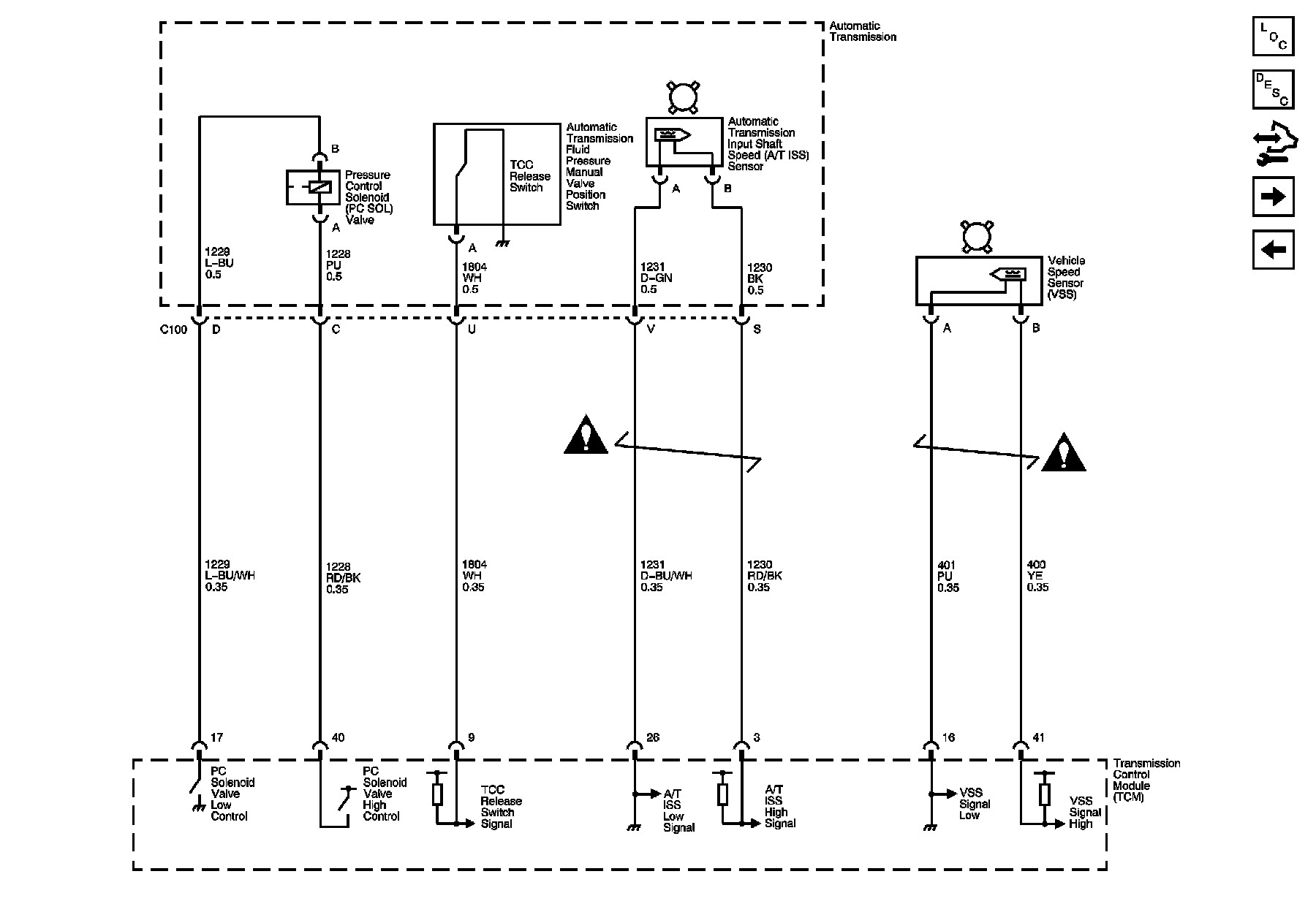

PC Solenoid Valve, Fluid Pressure Manual Valve Position Switch, ISS and VSS Sensors - LY7





Internal Mode Switch - LY7

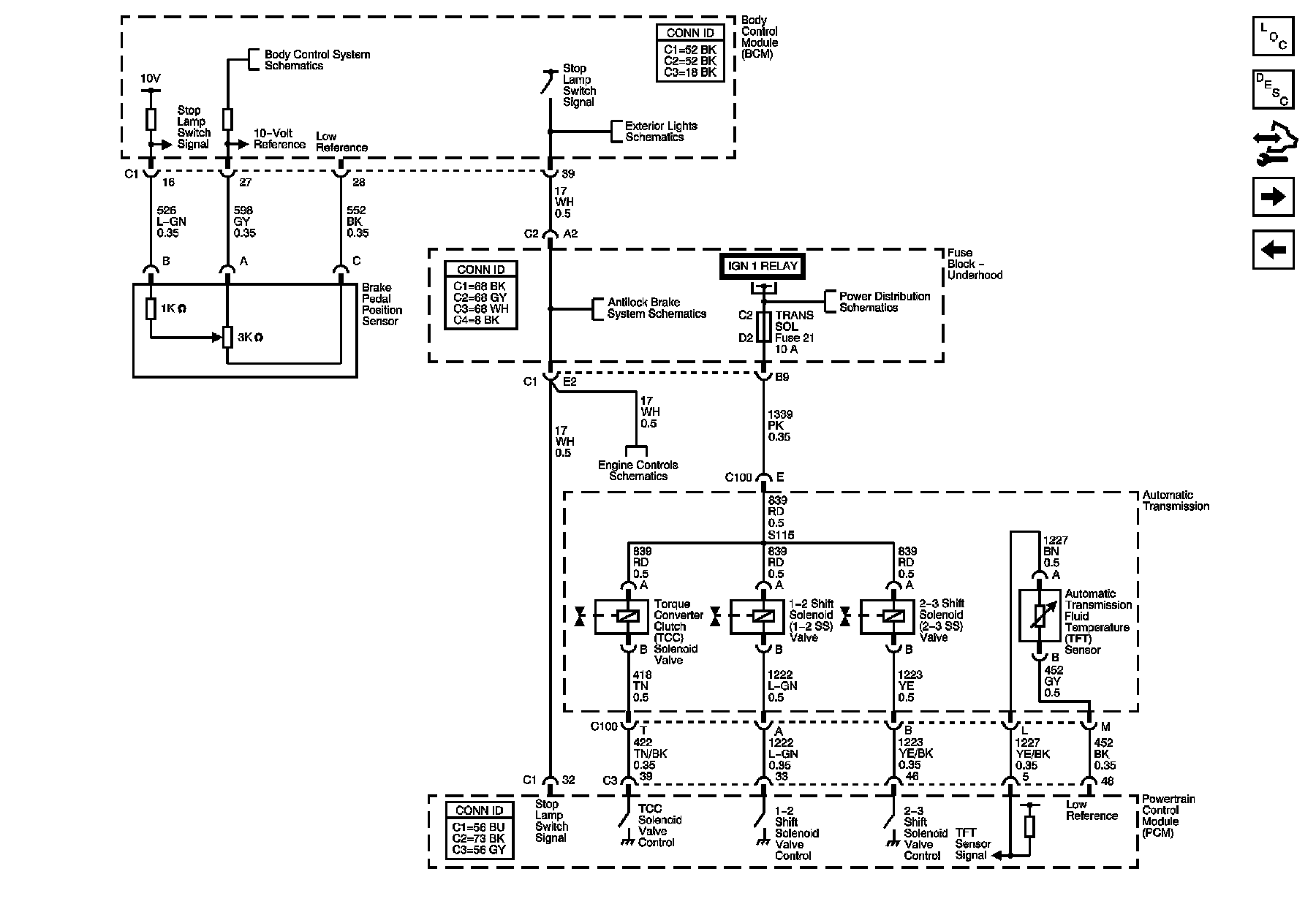

Shift and TCC Solenoid Valves, TFT Sensor, and Stop Lamp Switch - L26

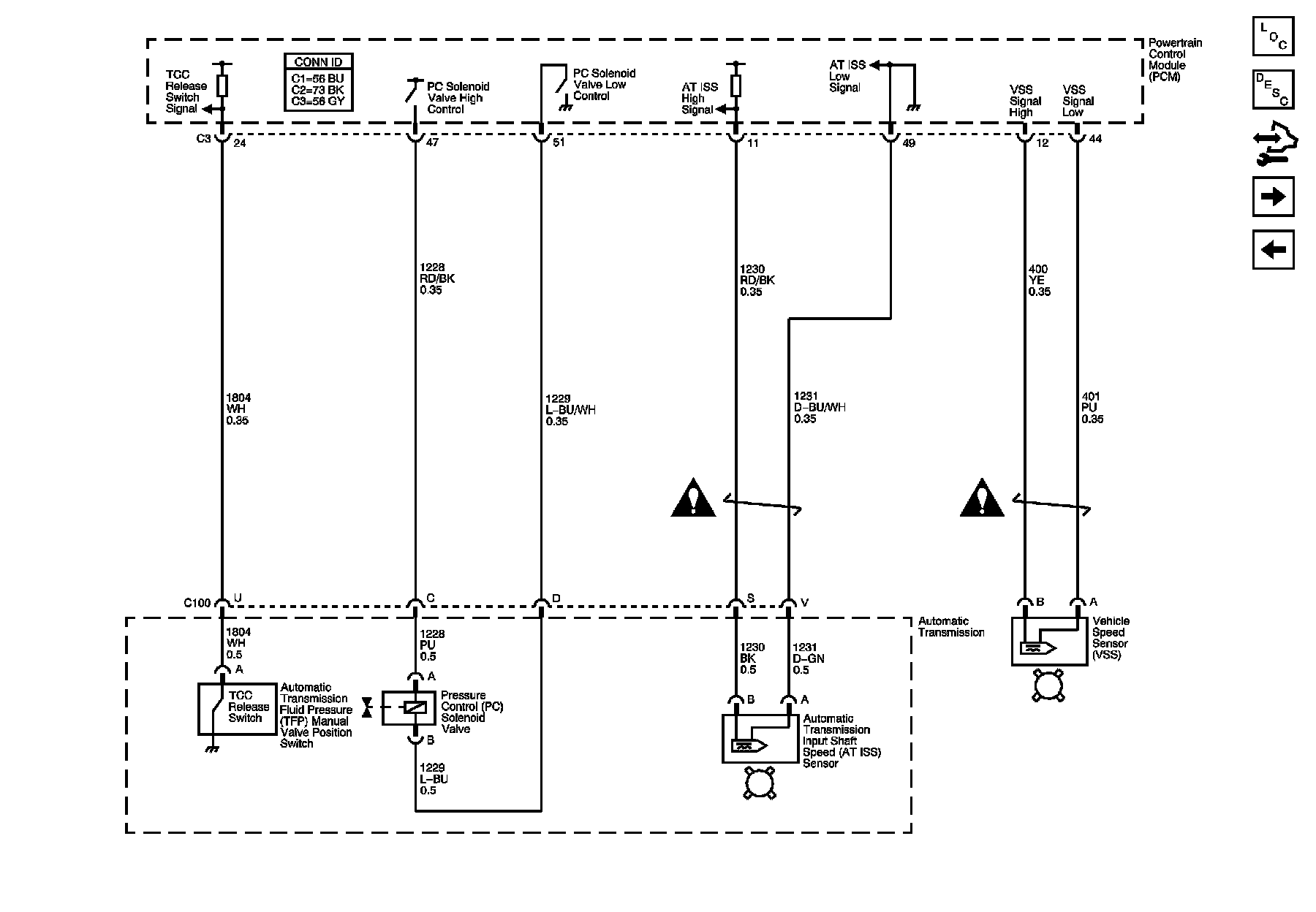

PC Solenoid Valve, Fluid Pressure Manual Valve Position Switch, ISS and VSS Sensors - L26





Internal Mode Switch - L26
