Power Distribution Diagram 9



Power Distribution Schematics

Fuse Block - Underhood LF LOW BEAM, RF LOW BEAM, LF HI BEAM, RF HI BEAM Fuses, Fuse Block - Instrument Panel STR/WHL/ILLUM Fuse

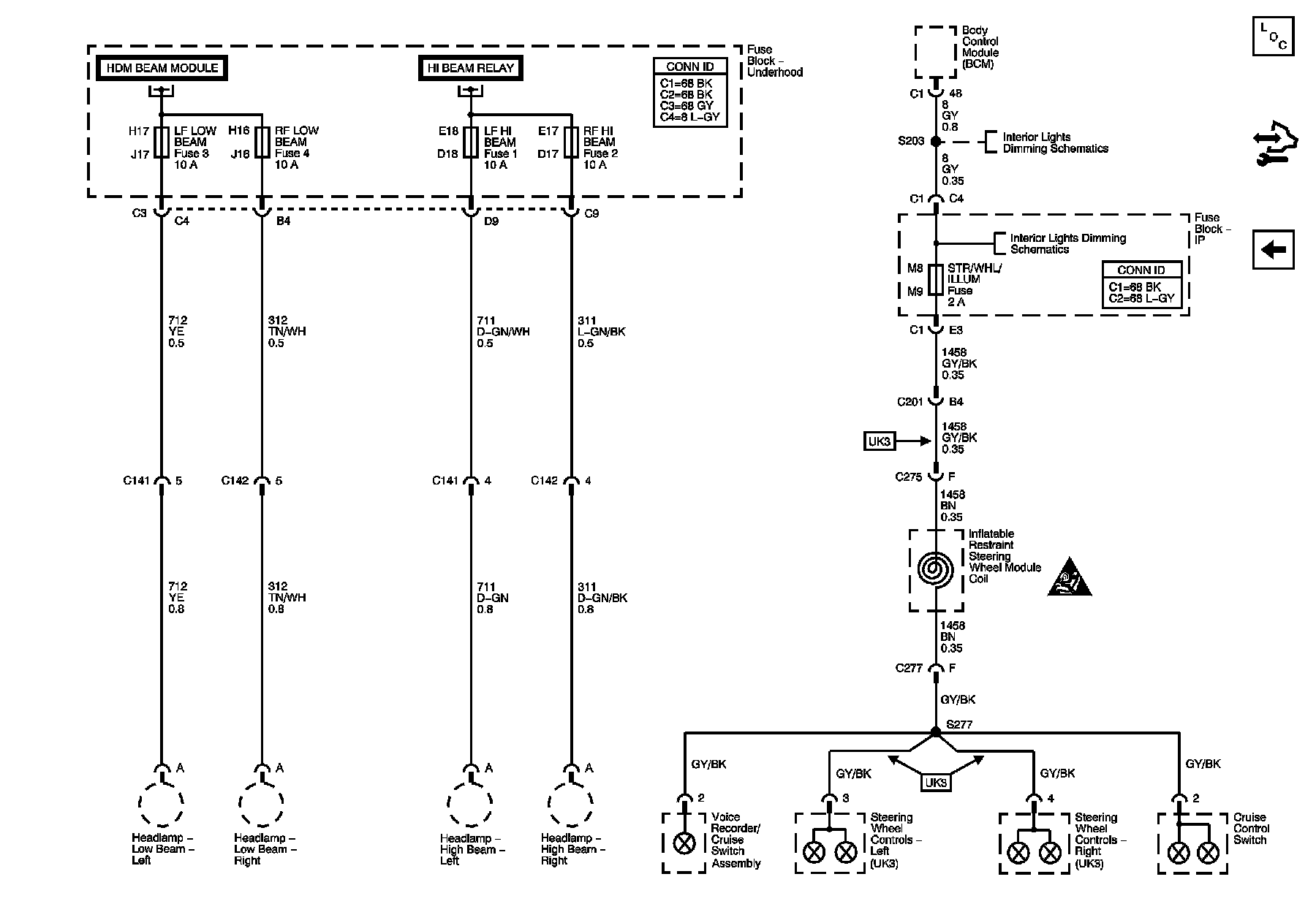

Power Distribution Diagram 9:
