Power Distribution Diagram 1



Power Distribution Schematics

Fuse Block - Underhood B+ Bus

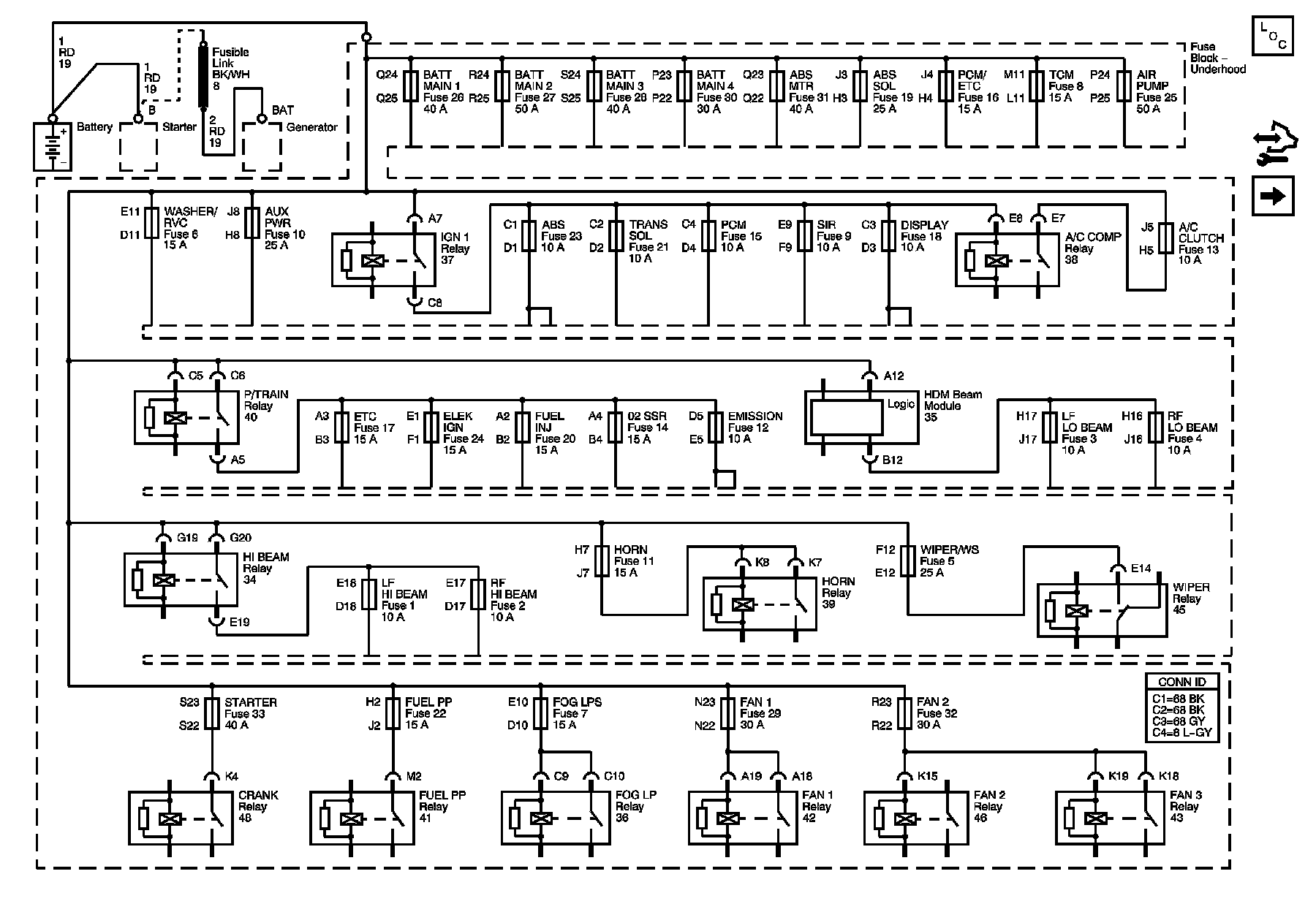

Power Distribution Diagram 1:
