Seat Temperature Element



Heated/Cooled Seat Schematics

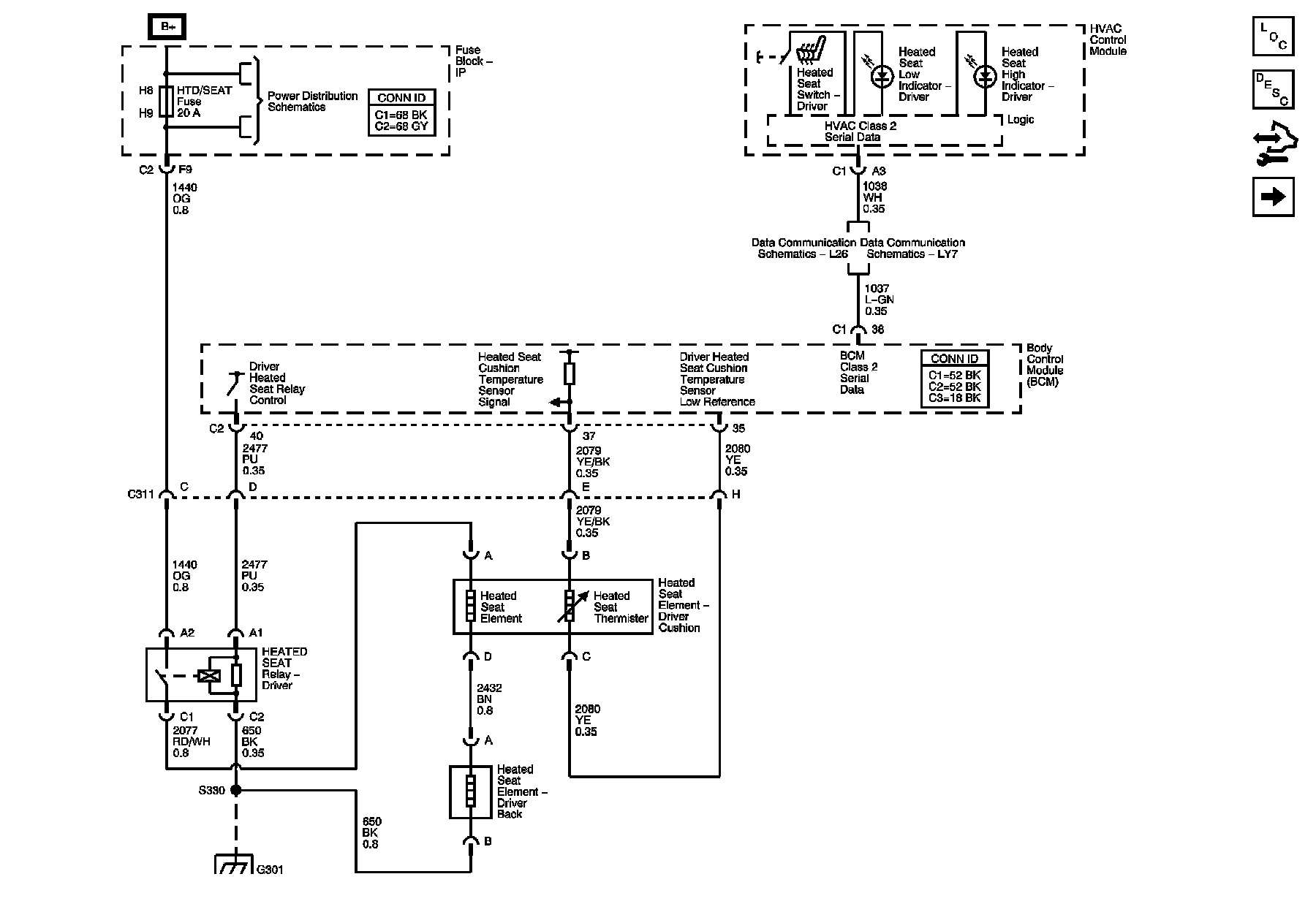

Driver Seat Heat Controls

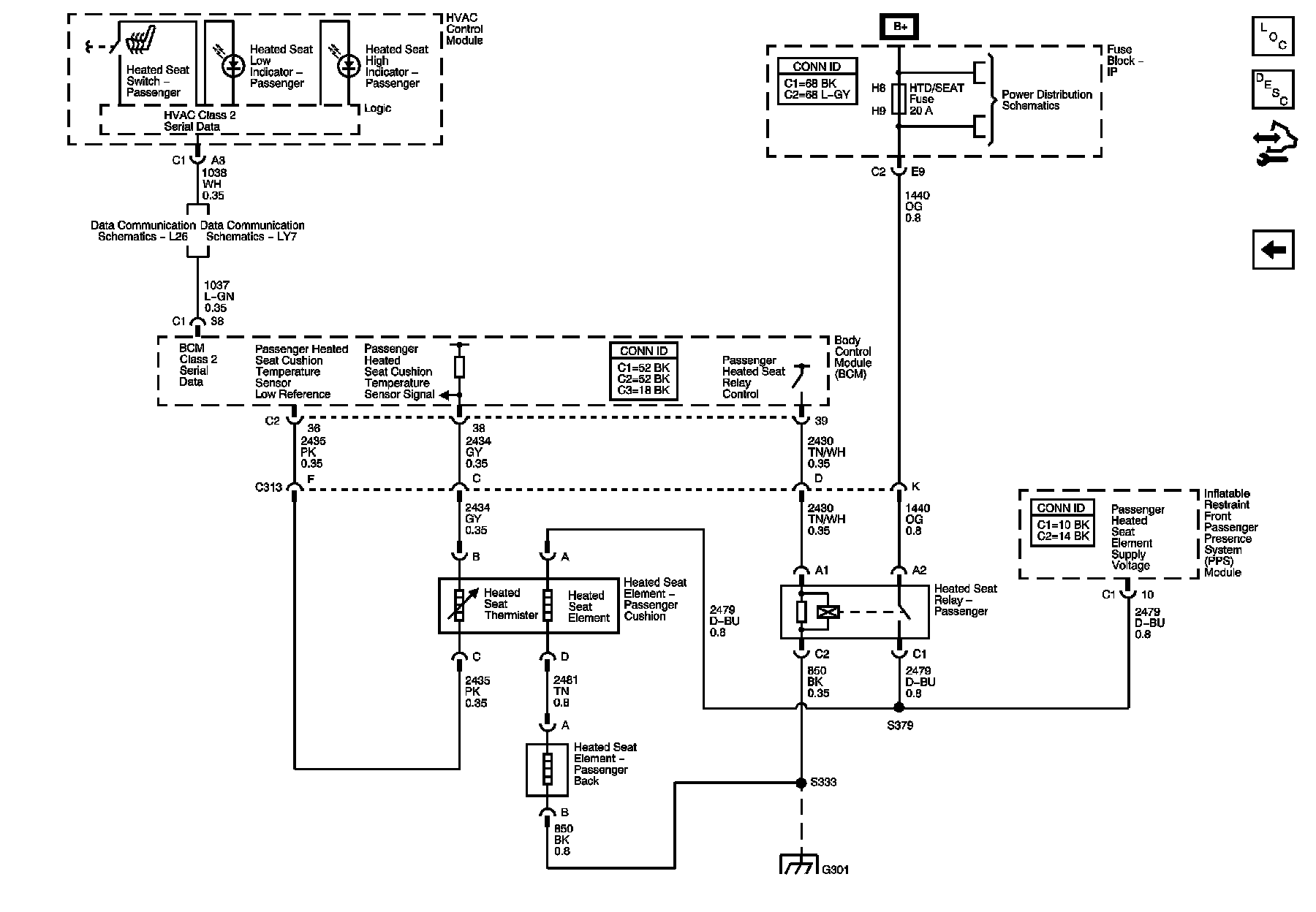

Passenger Seat Heat Controls
