Interior Lights Dimming Diagram 1
Interior Lights Dimming Diagram 1
Interior Lights Dimming Schematics
Instrument Panel, Console, and Driver Door Lighting

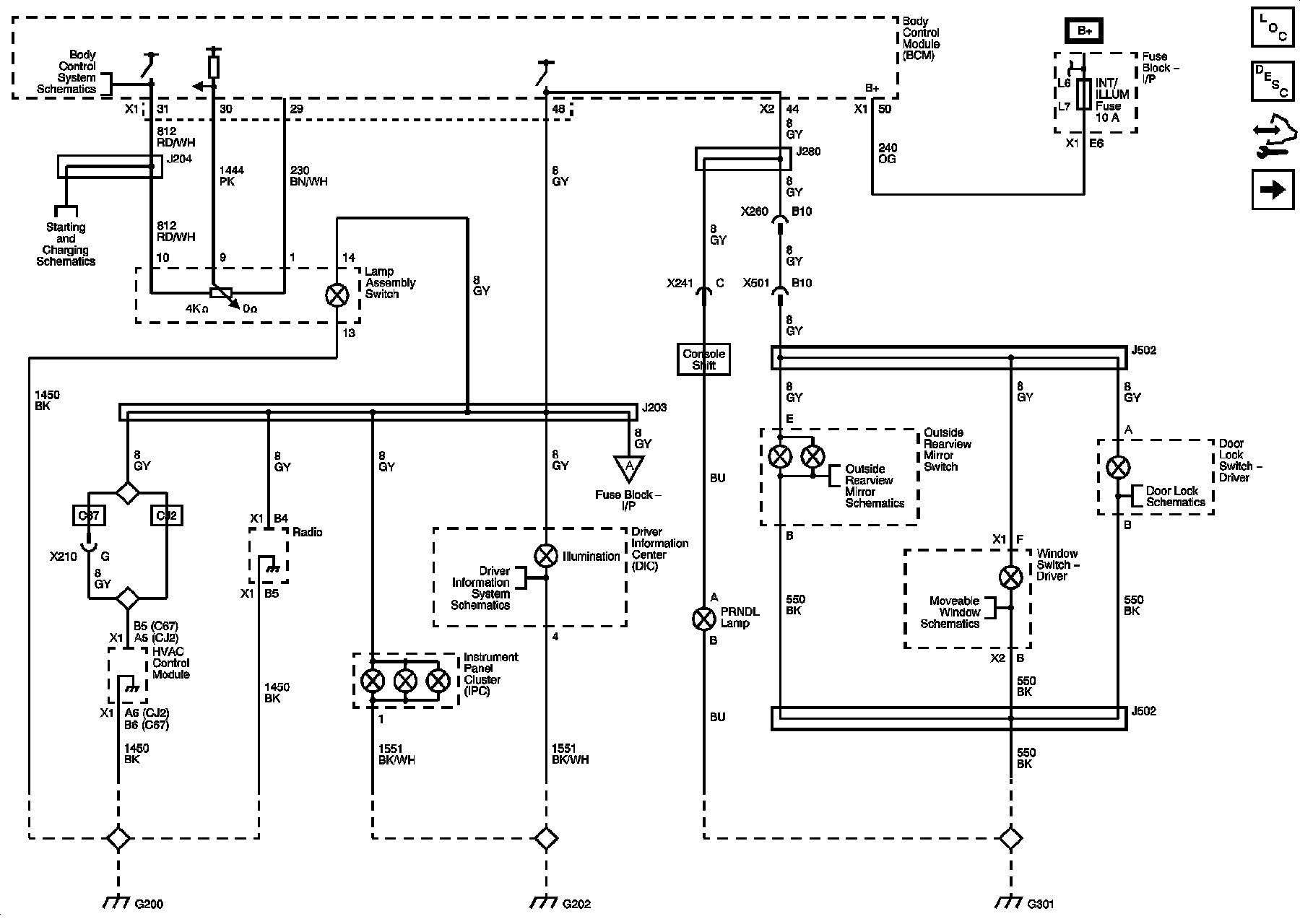

Interior Lights Dimming Diagram 1:
