Home >> Buick >> 2008 >> Allure (CANADA) V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Horn

Horn

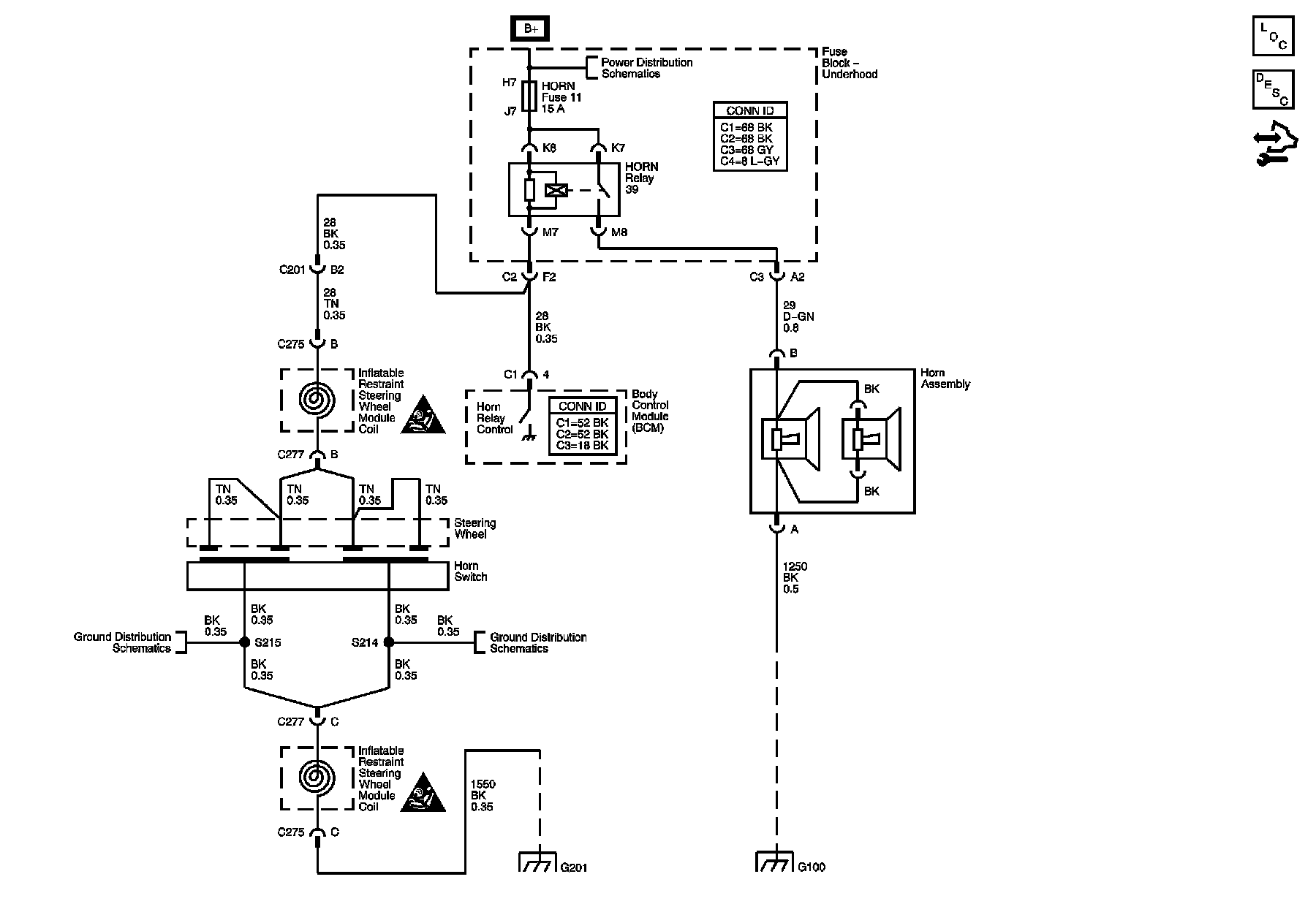

Horn Schematics

Horns
