Buick
>>
2008
>>
Allure (CANADA) V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>

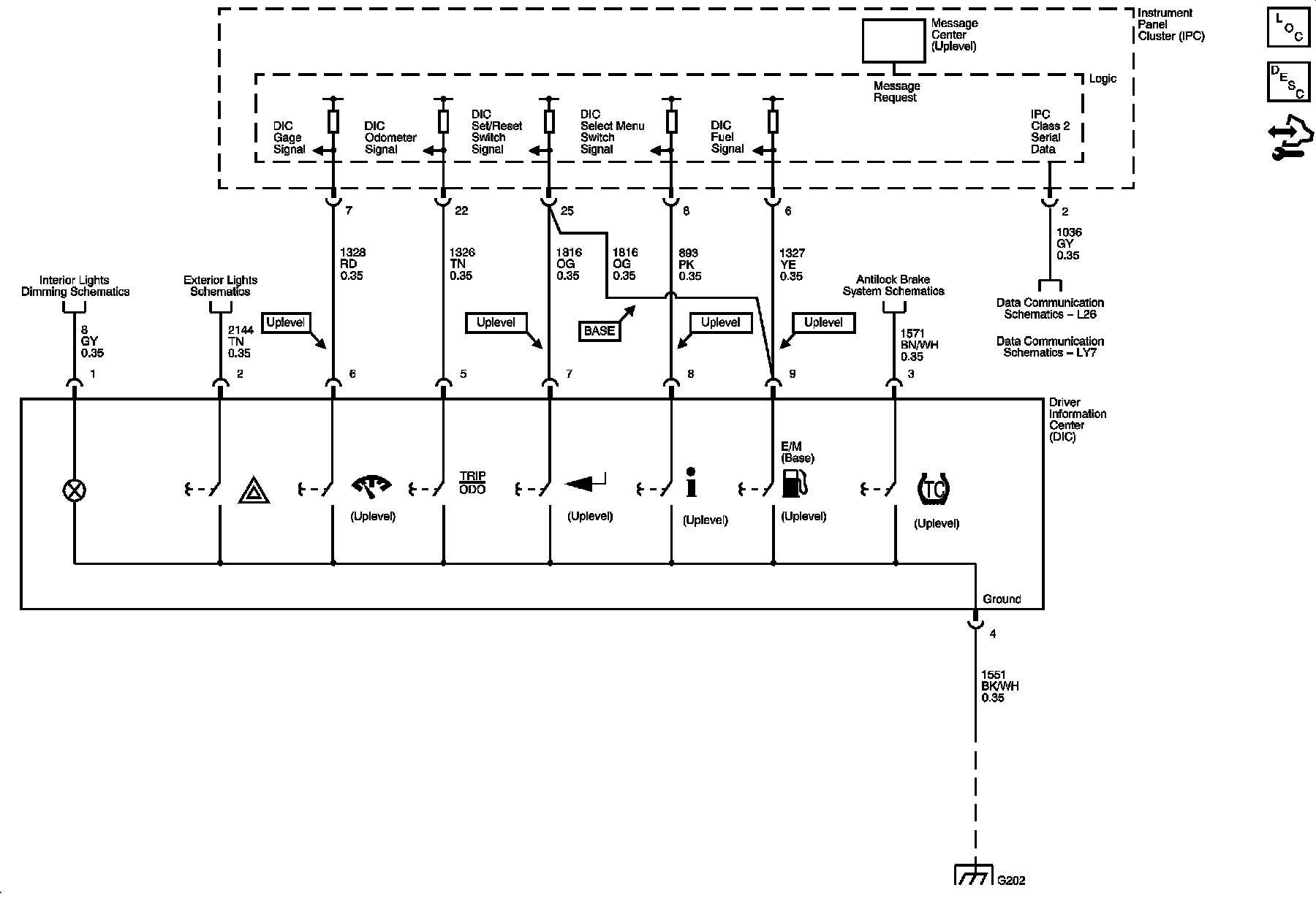

Driver Information System Schematics
Driver Information System Schematics
Driver Information System Schematics
Driver Information System
