HVAC - Manual



HVAC Schematics

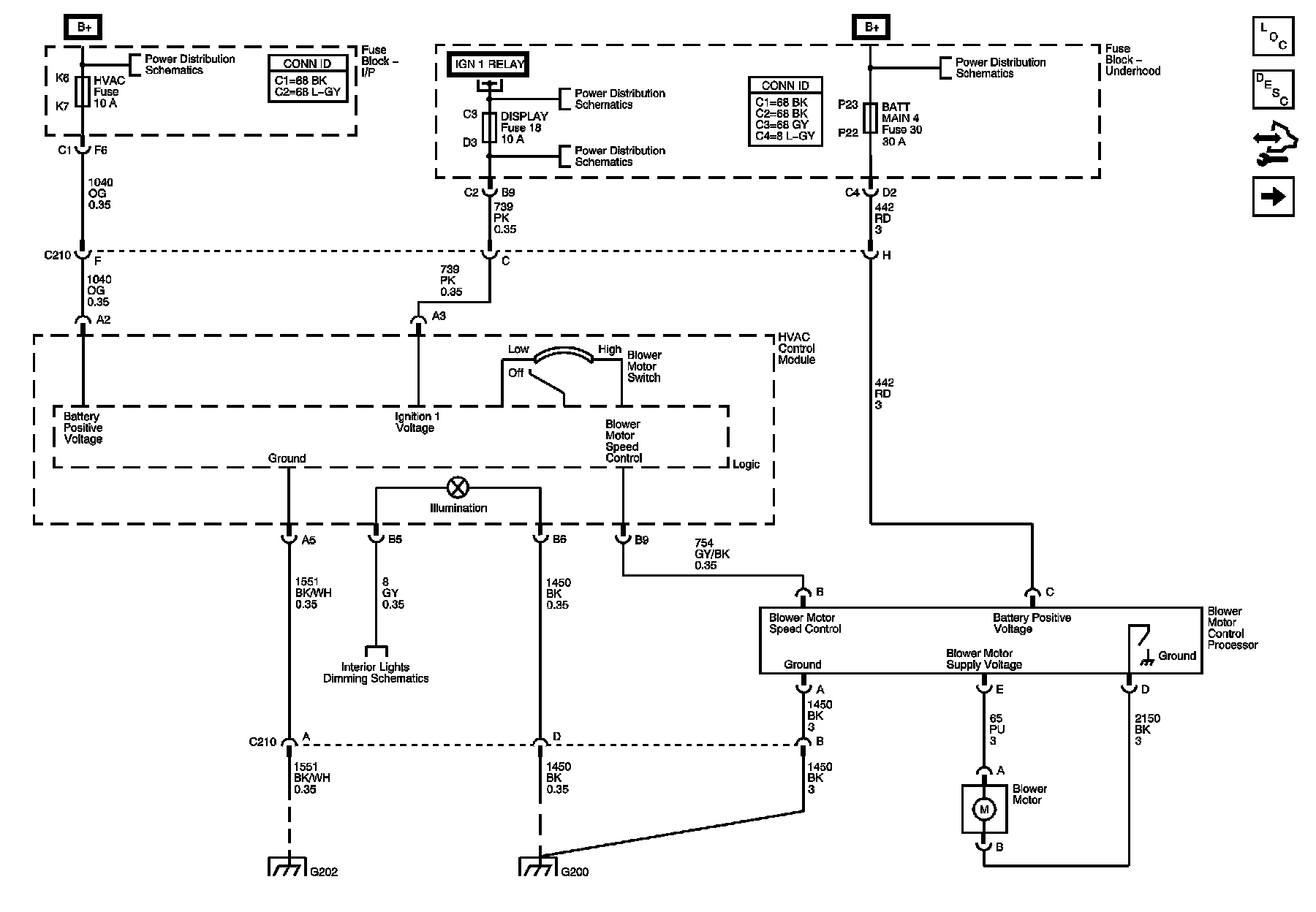

Power, Ground, and Blower Controls

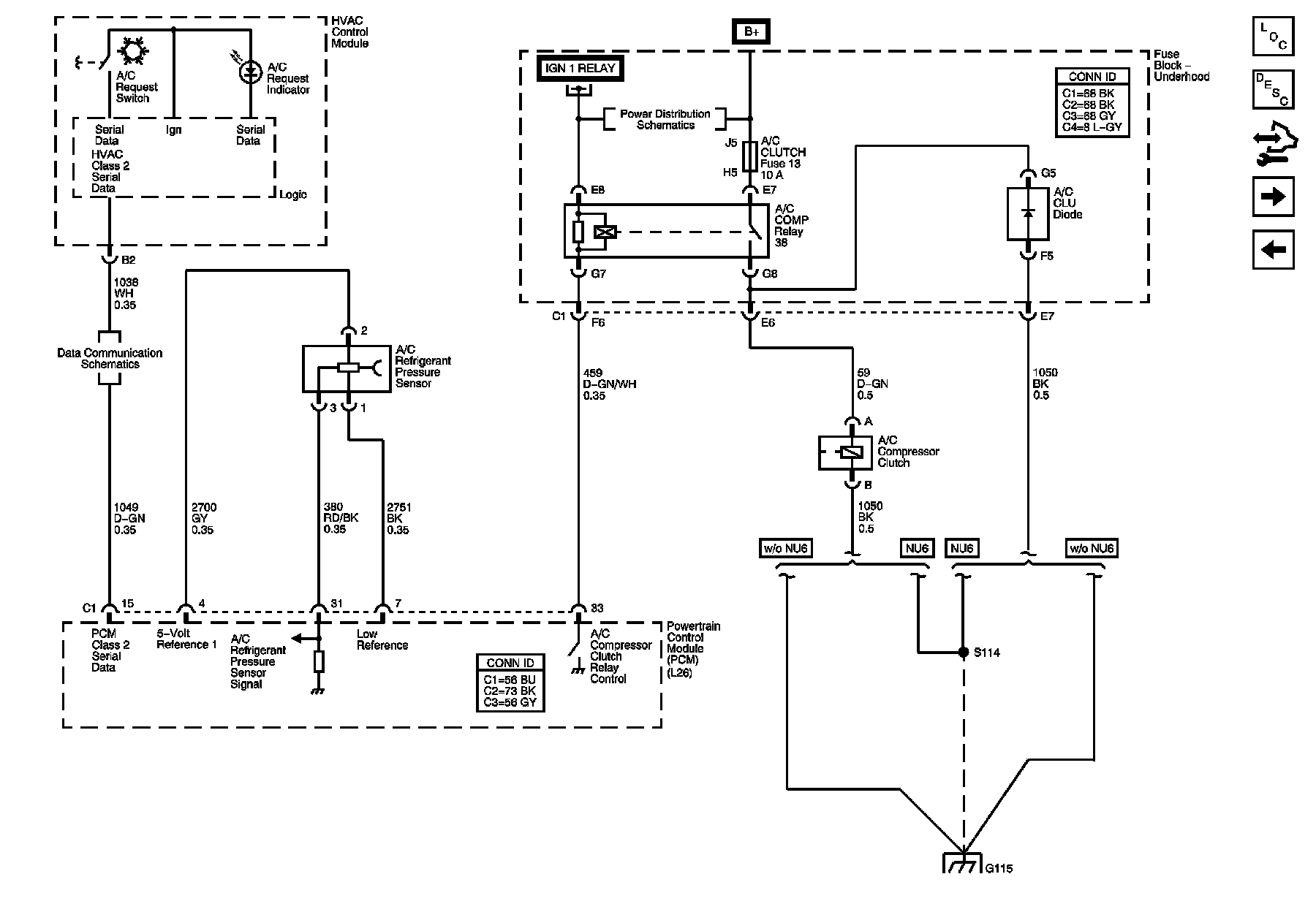

Compressor Controls and Serial Data - L26

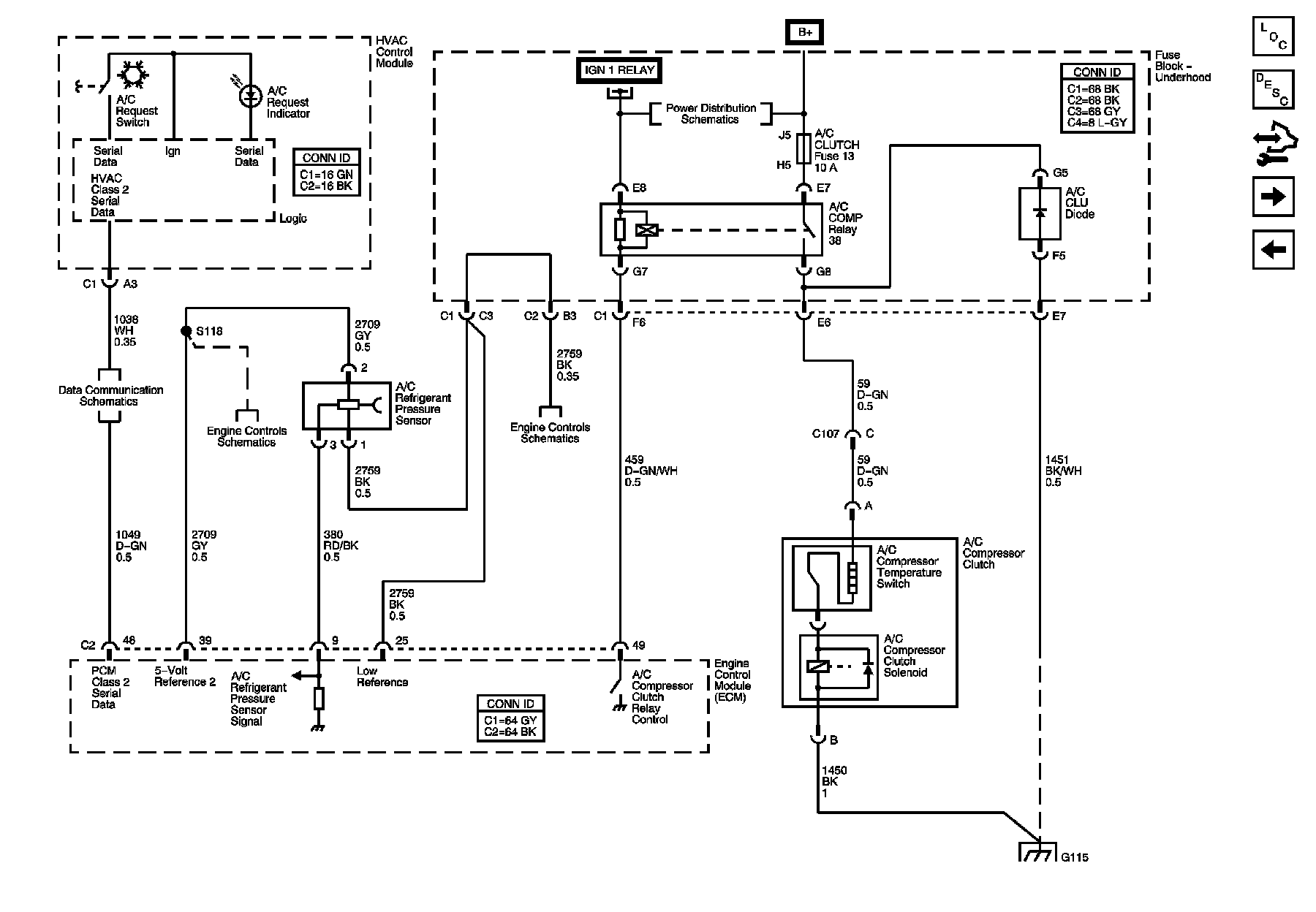

Compressor Controls and Serial Data - LY7

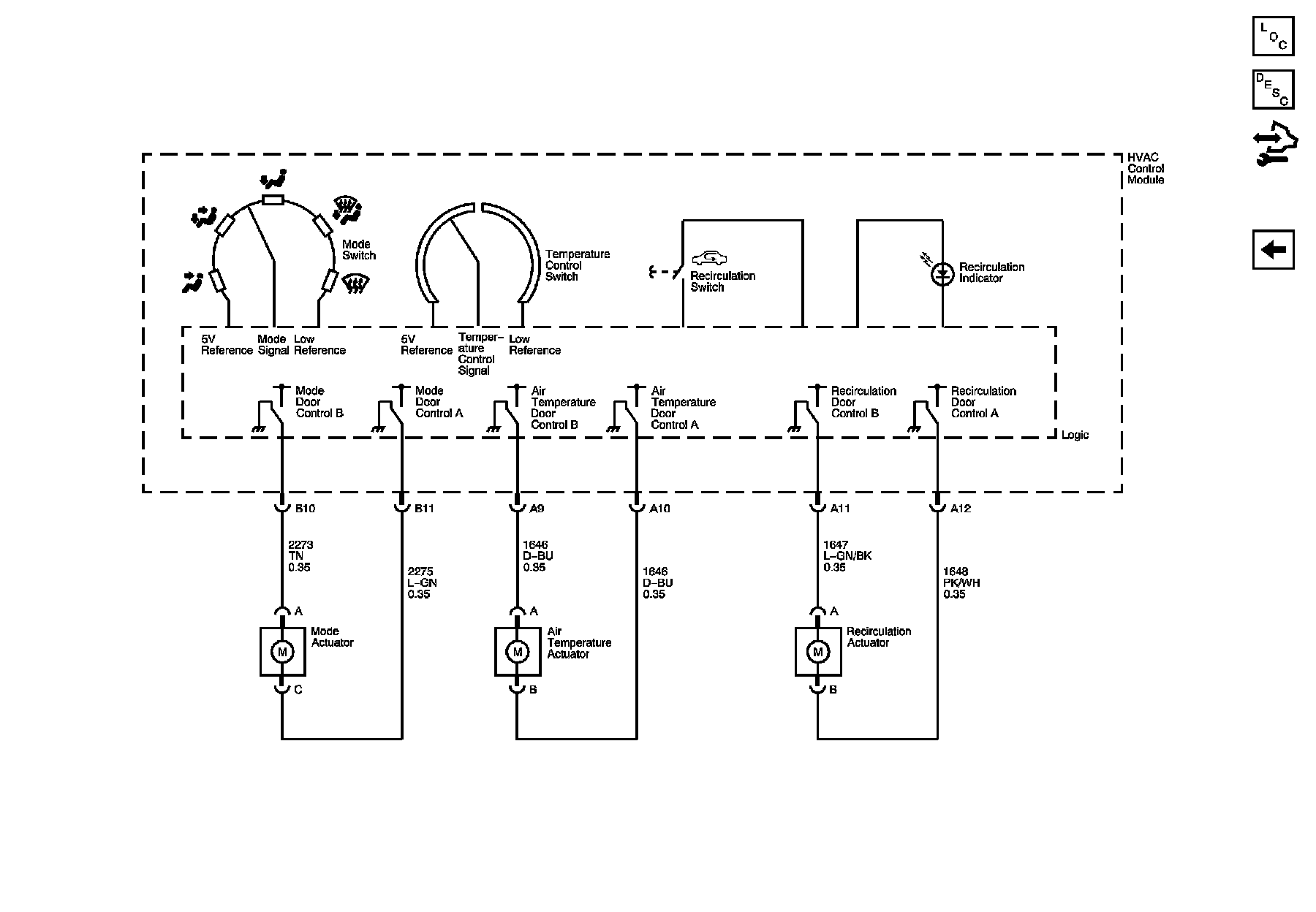

Mode and Air Temperature Controls
