HVAC - Automatic



HVAC Schematics

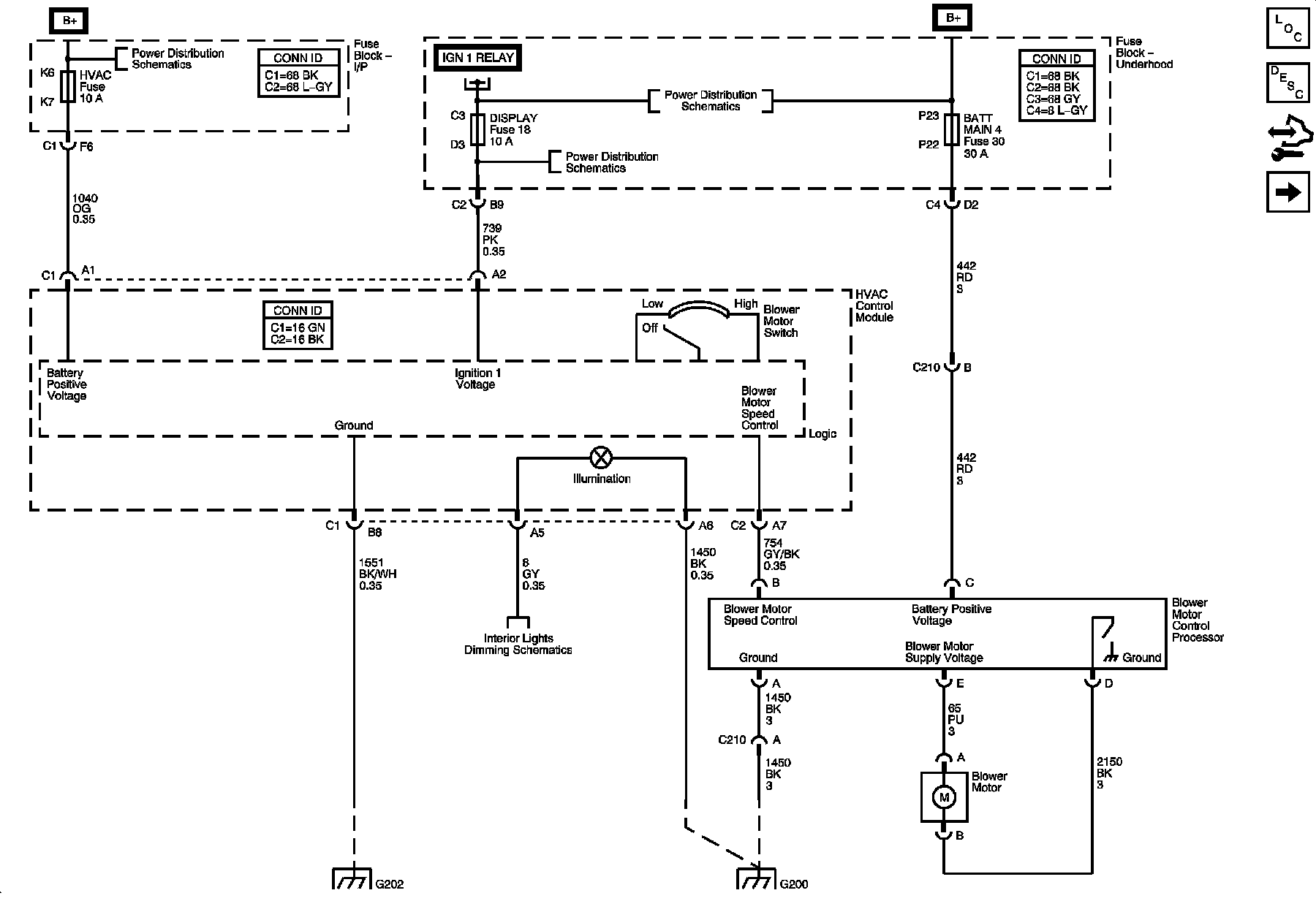

Power, Ground and Blower Controls





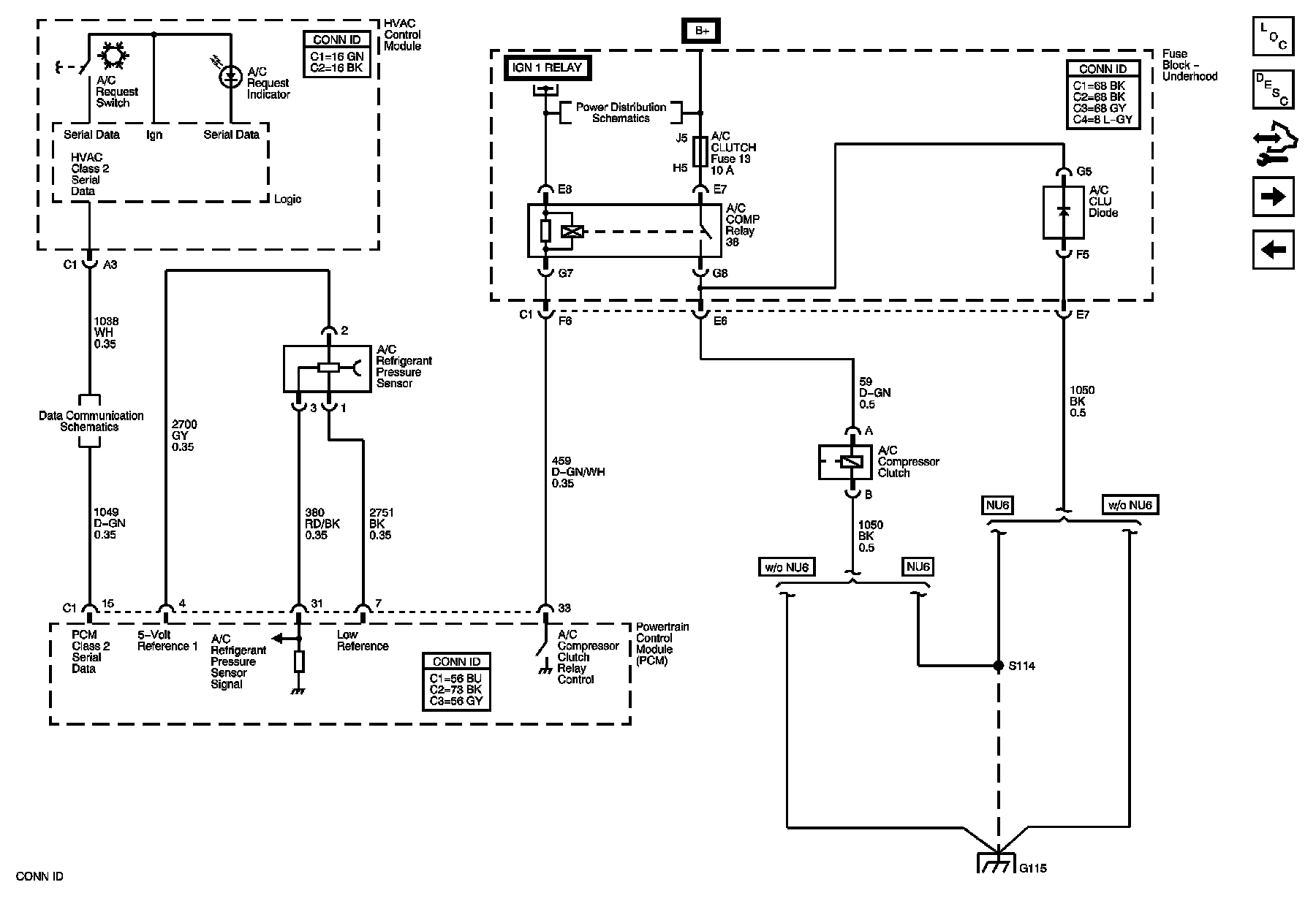

Compress Controls and Serial Data - L26

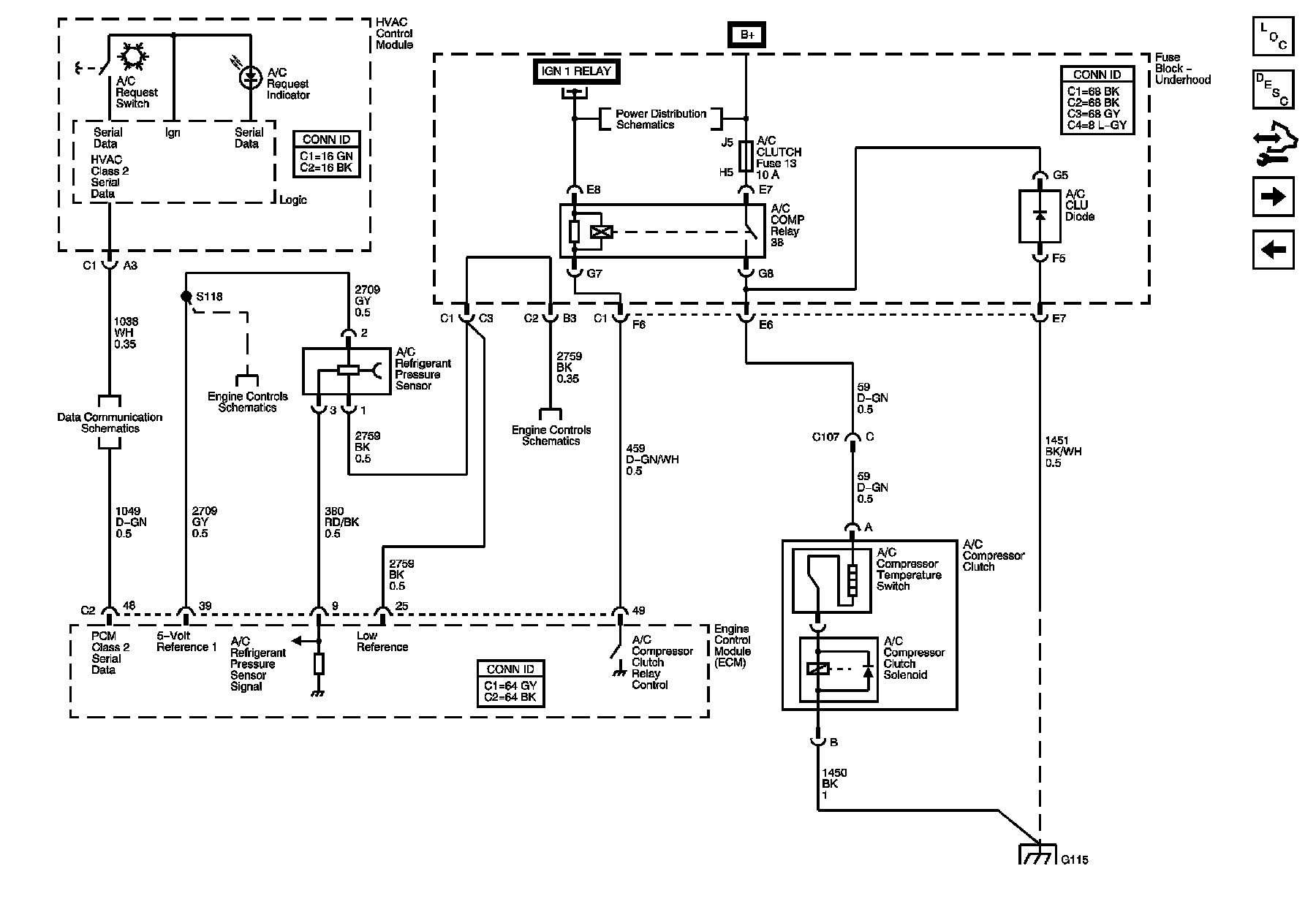

Compressor Controls and Serial Data - LY7

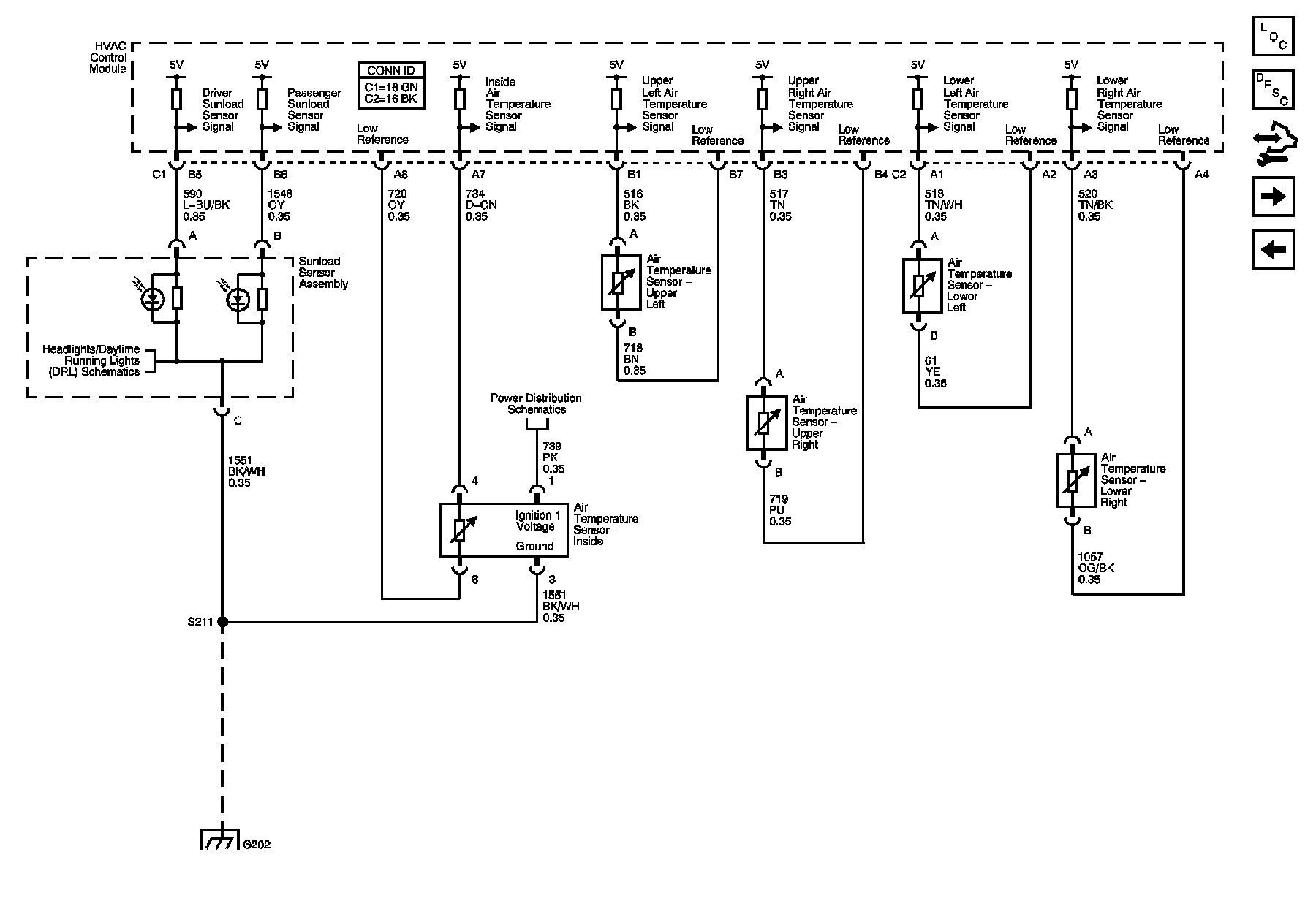

AIR Temperature and Sunload Sensors

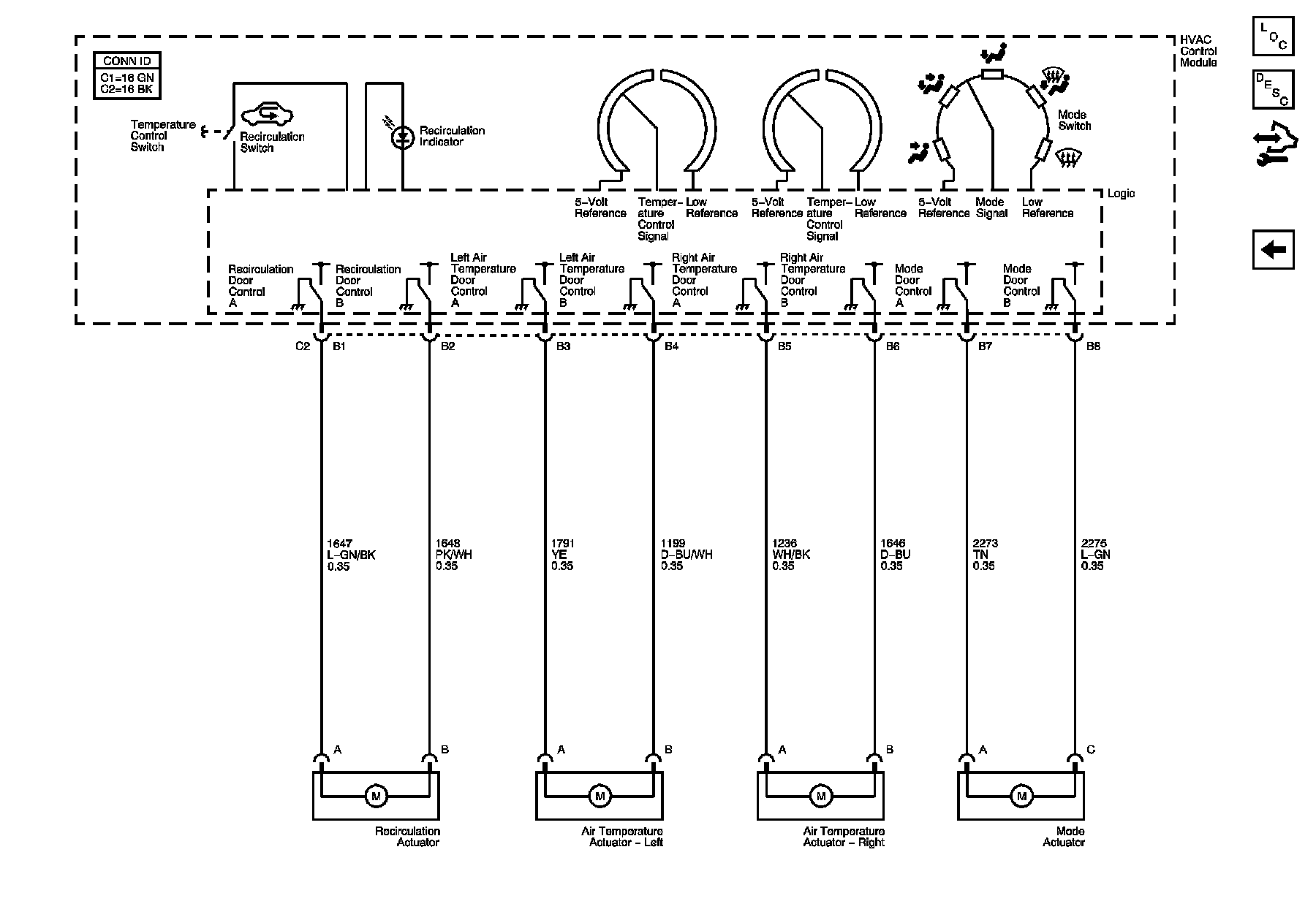

Air Delivery/Temperature Controls
