Body Control Systems



Body Control System Schematics

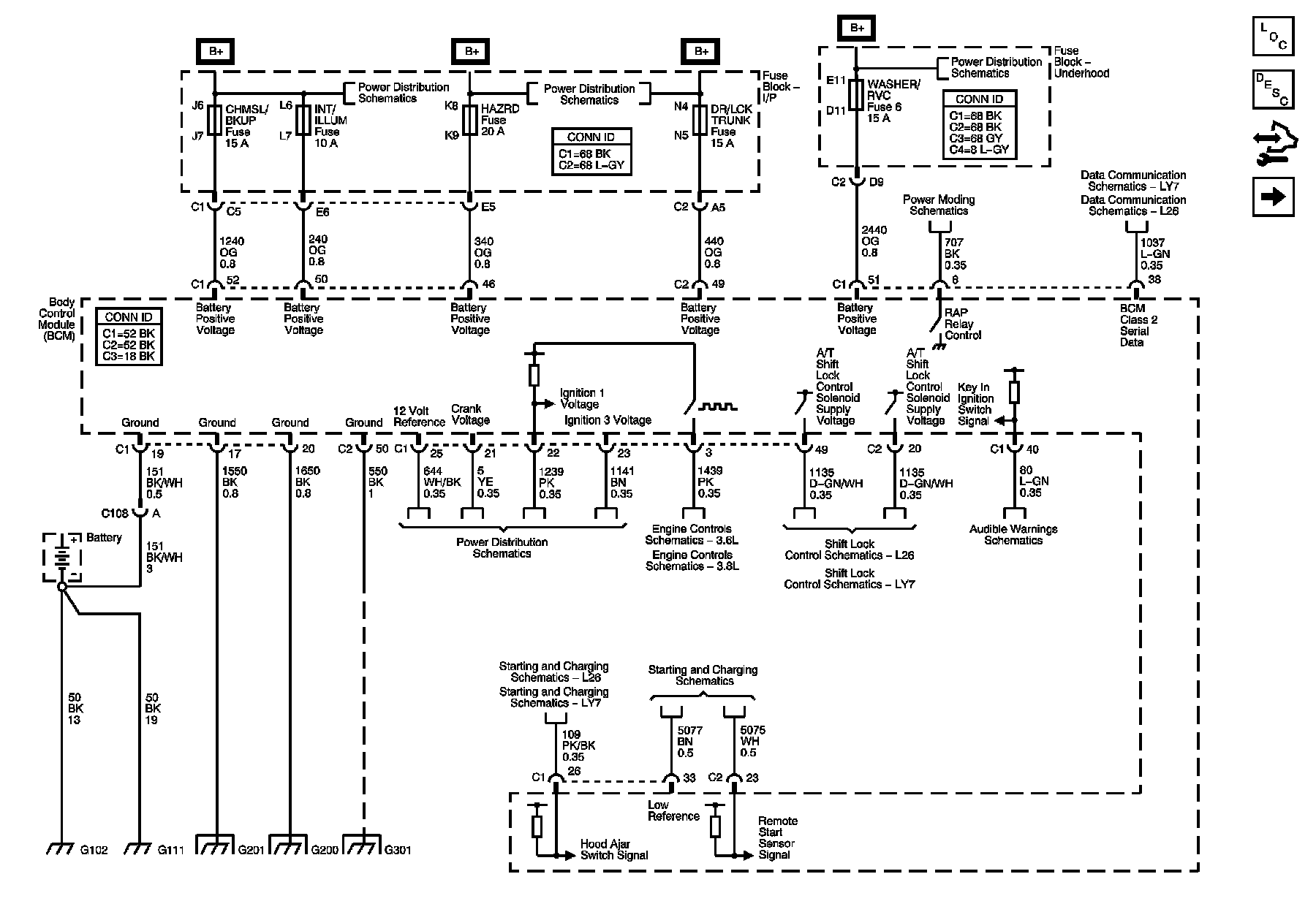

Power, Ground, Serial Data, and Subsystem References 1 of 4

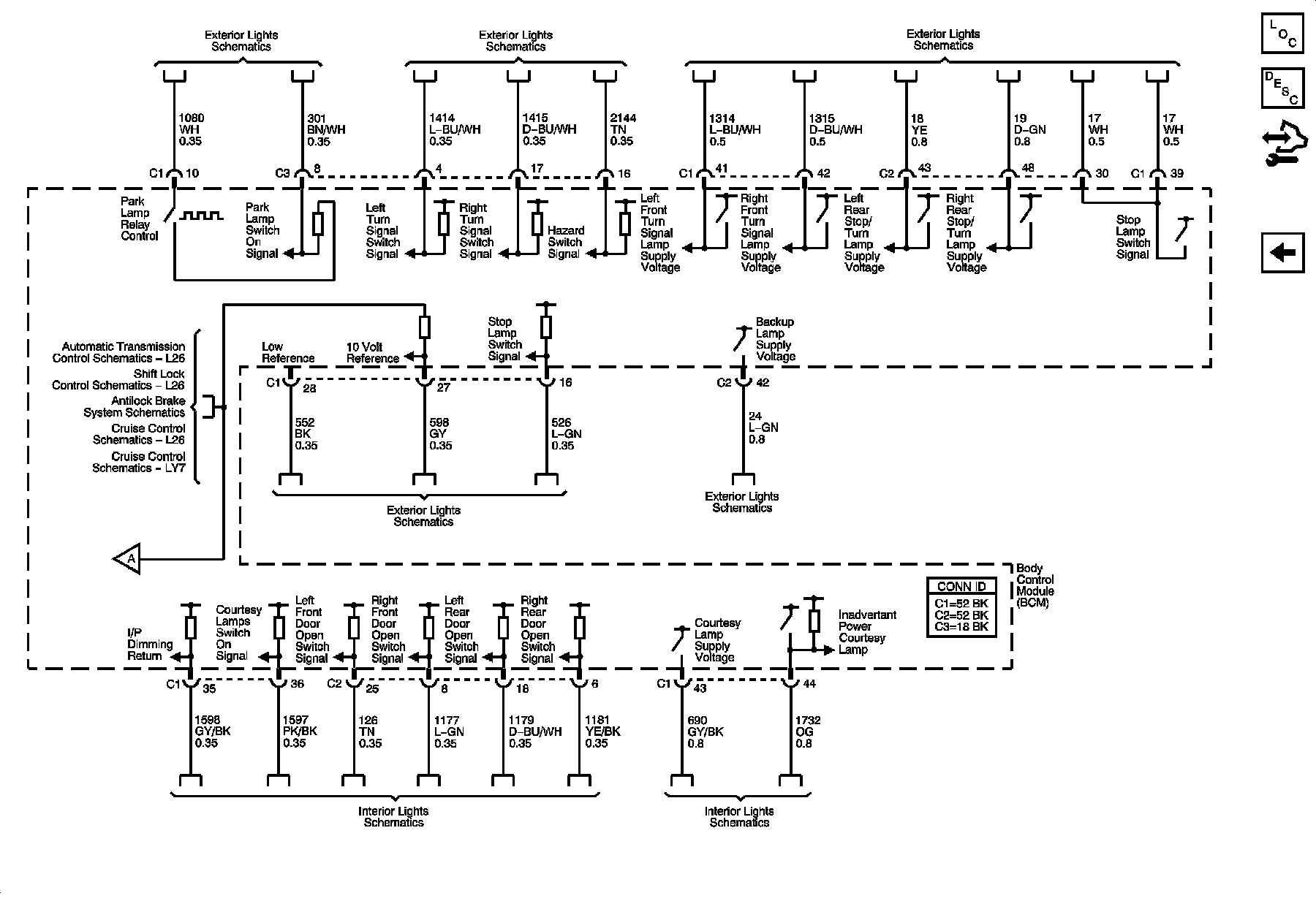

Subsystem References 2 of 4

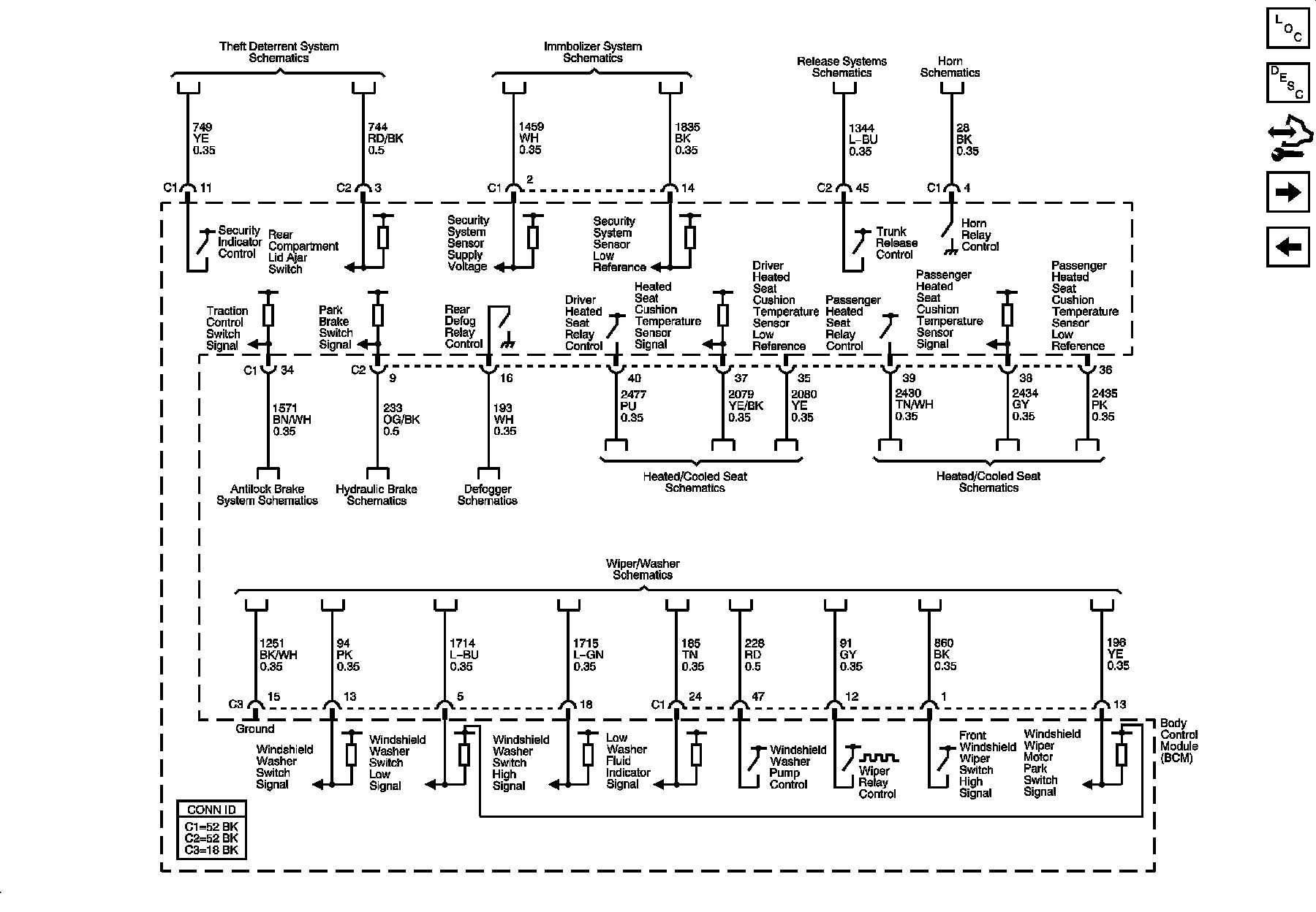

Subsystem References 3 of 4

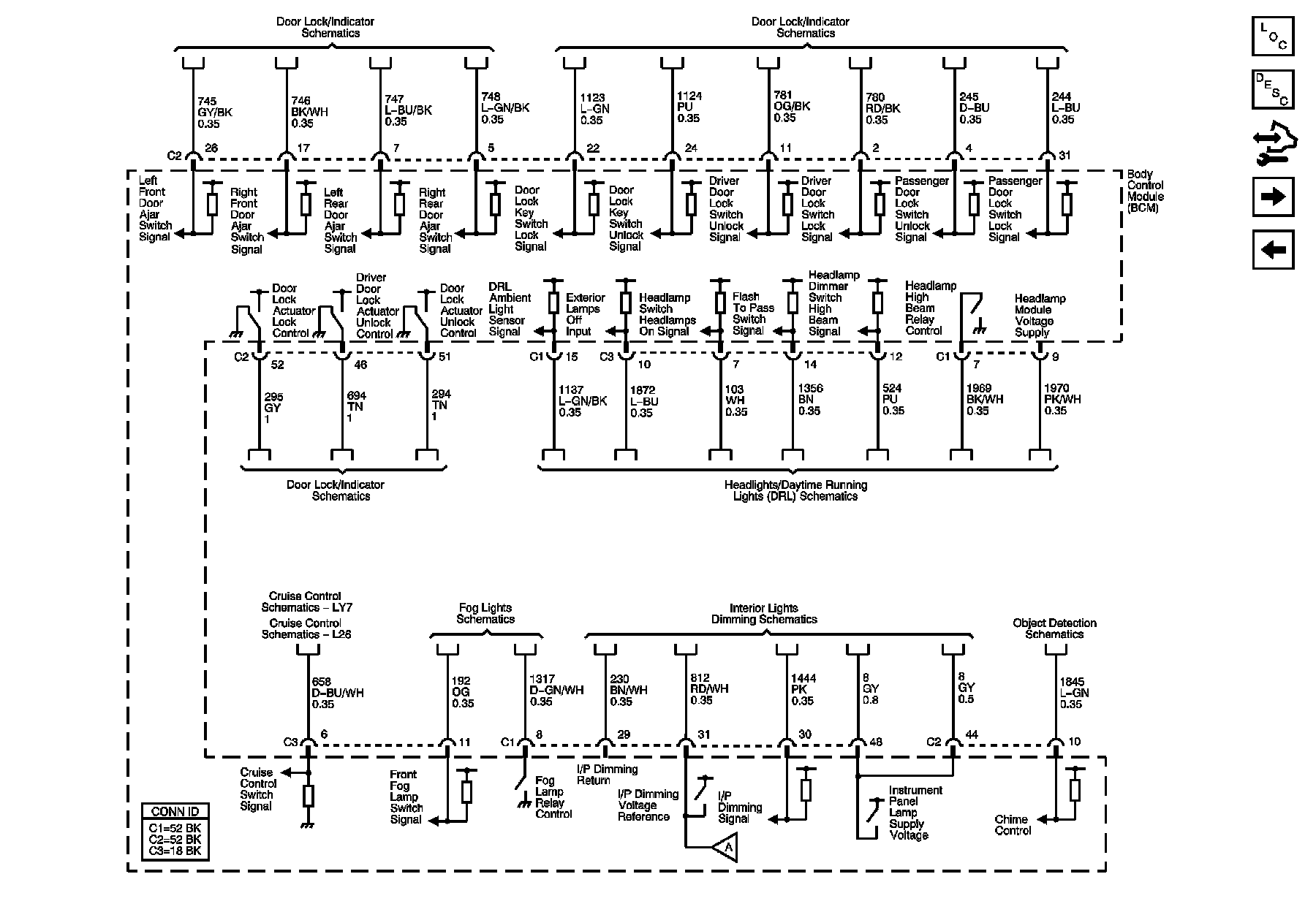

Subsystem References 4 of 4
