Shift Interlock, A/T



Shift Lock Control Schematics

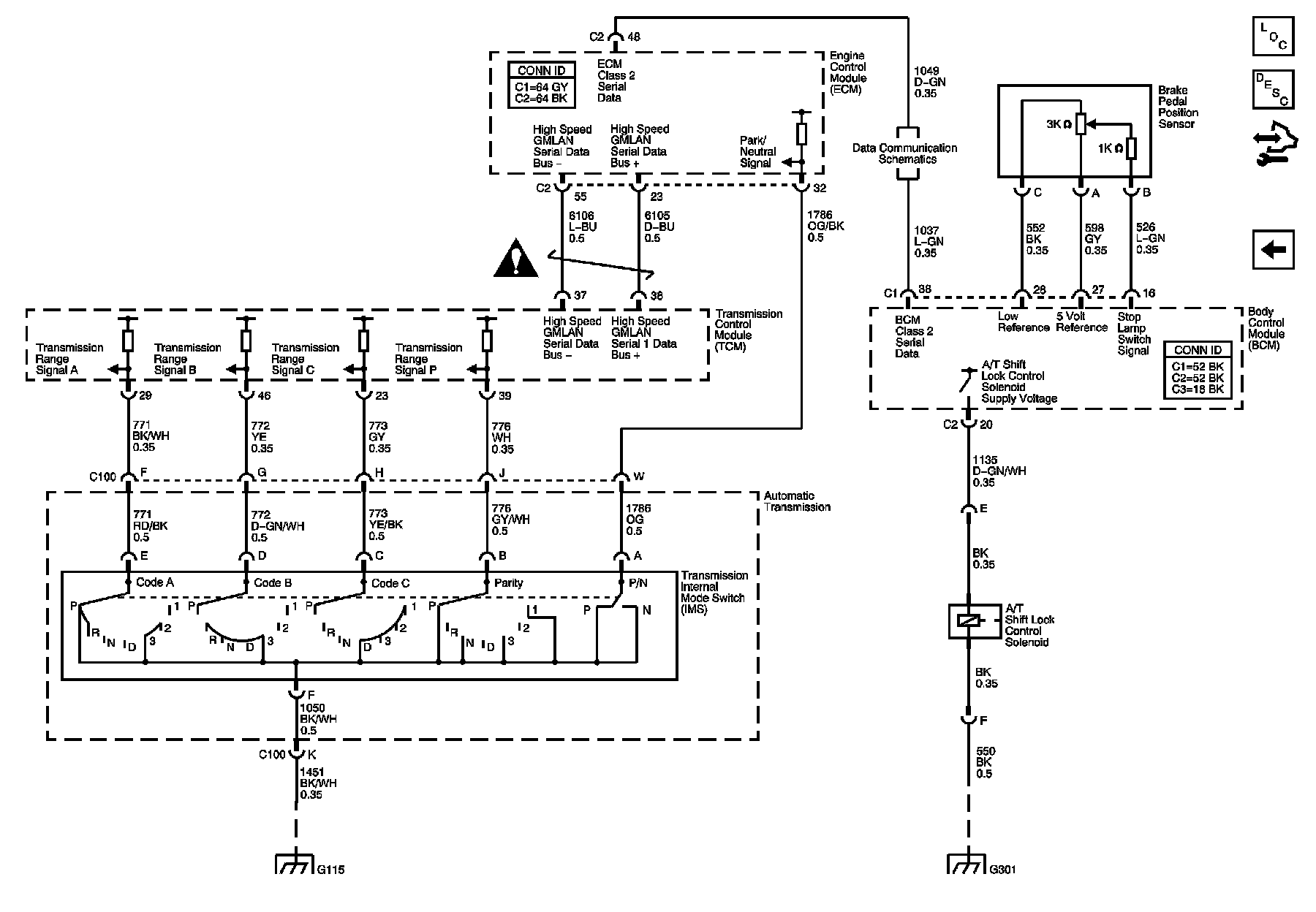

Shift Lock Control - L26

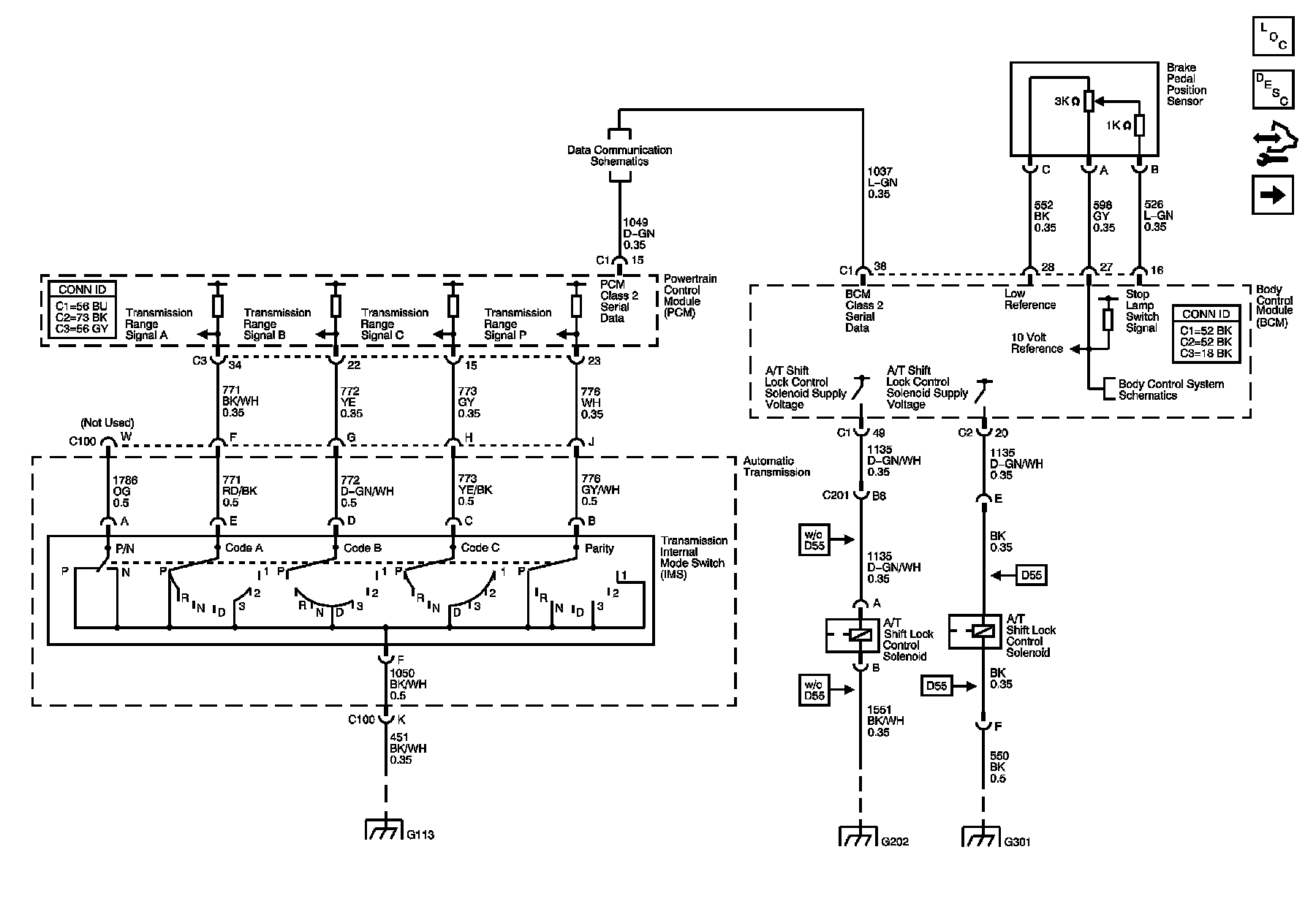

Shift Lock Control - LY7
