Power Seat Motor: Diagrams



Component Connector End Views

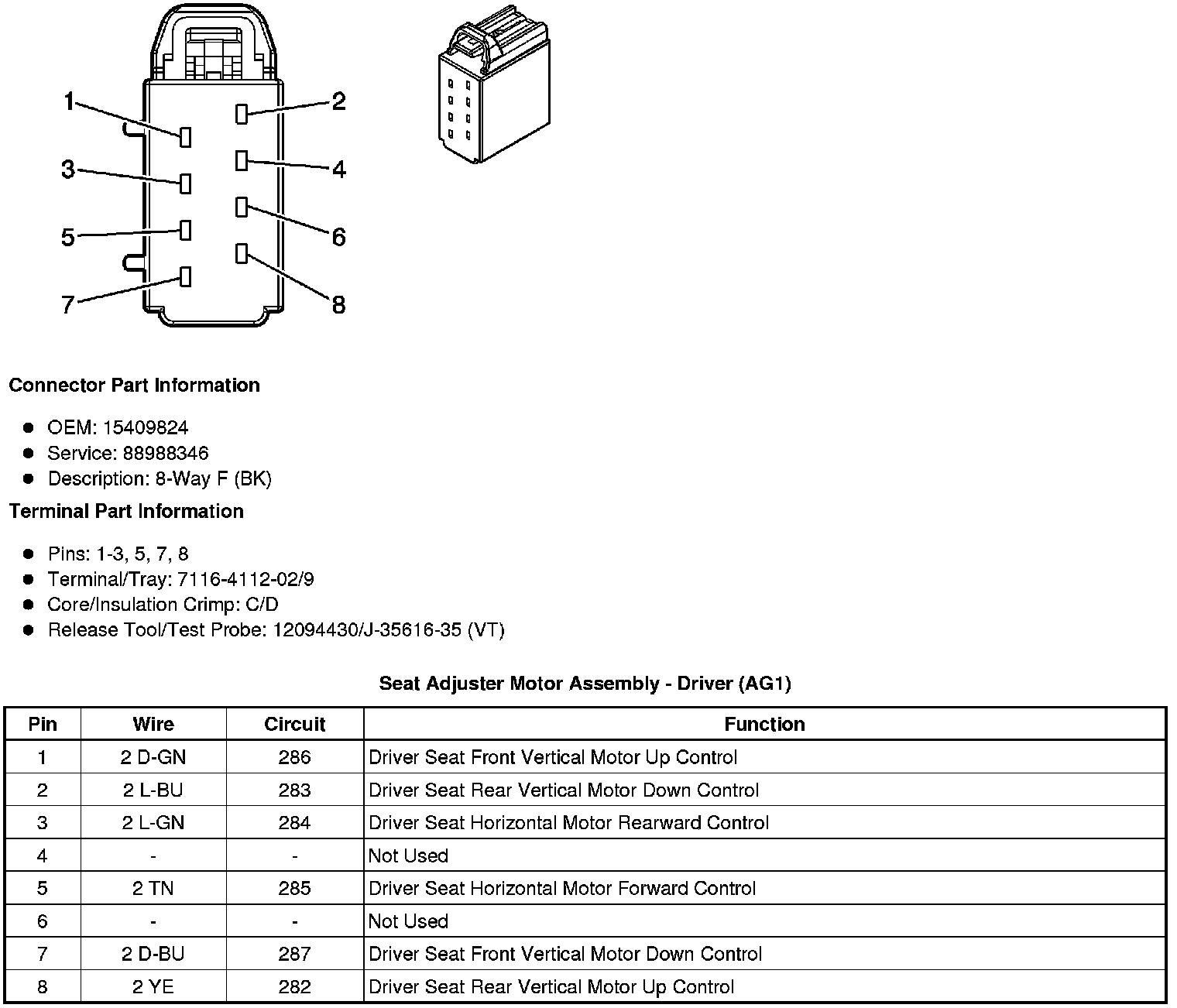

Seat Adjuster Motor Assembly - Driver (AG1)

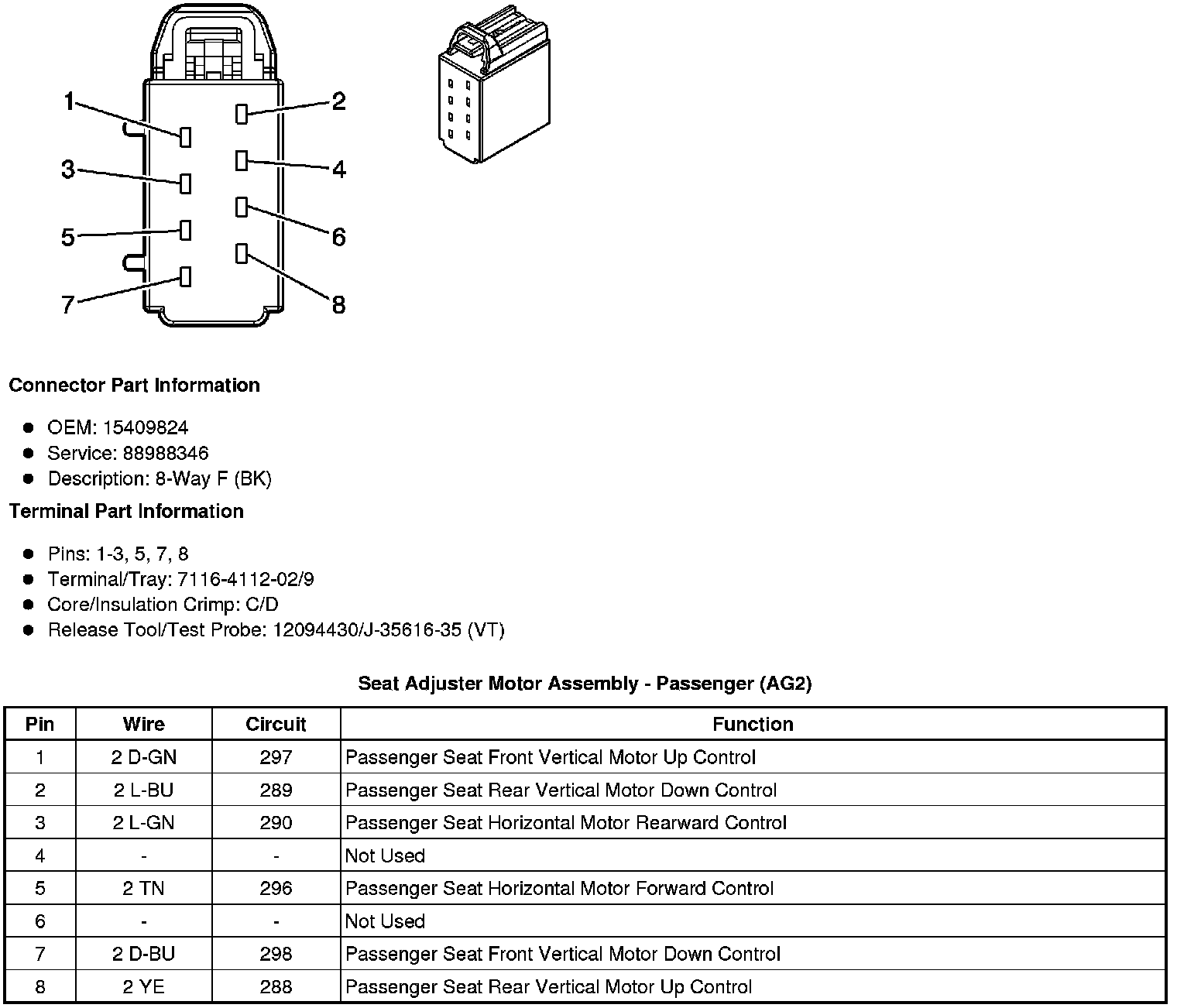

Seat Adjuster Motor Assembly - Passenger (AG2)





Seat Lumbar Motor - Driver (AL9)
