Power Mirror Motor: Diagrams



Component Connector End Views

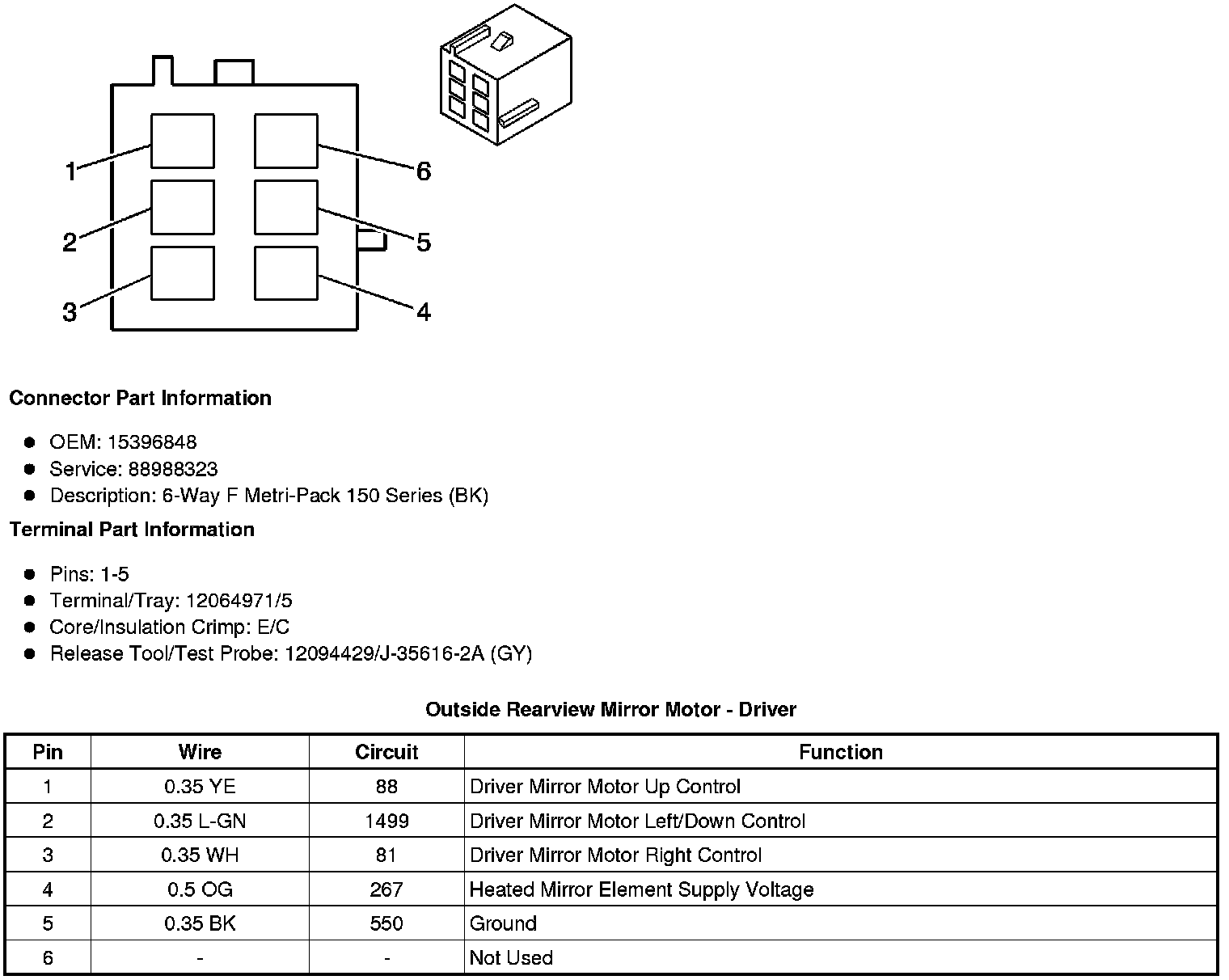

Outside Rearview Mirror Motor - Driver

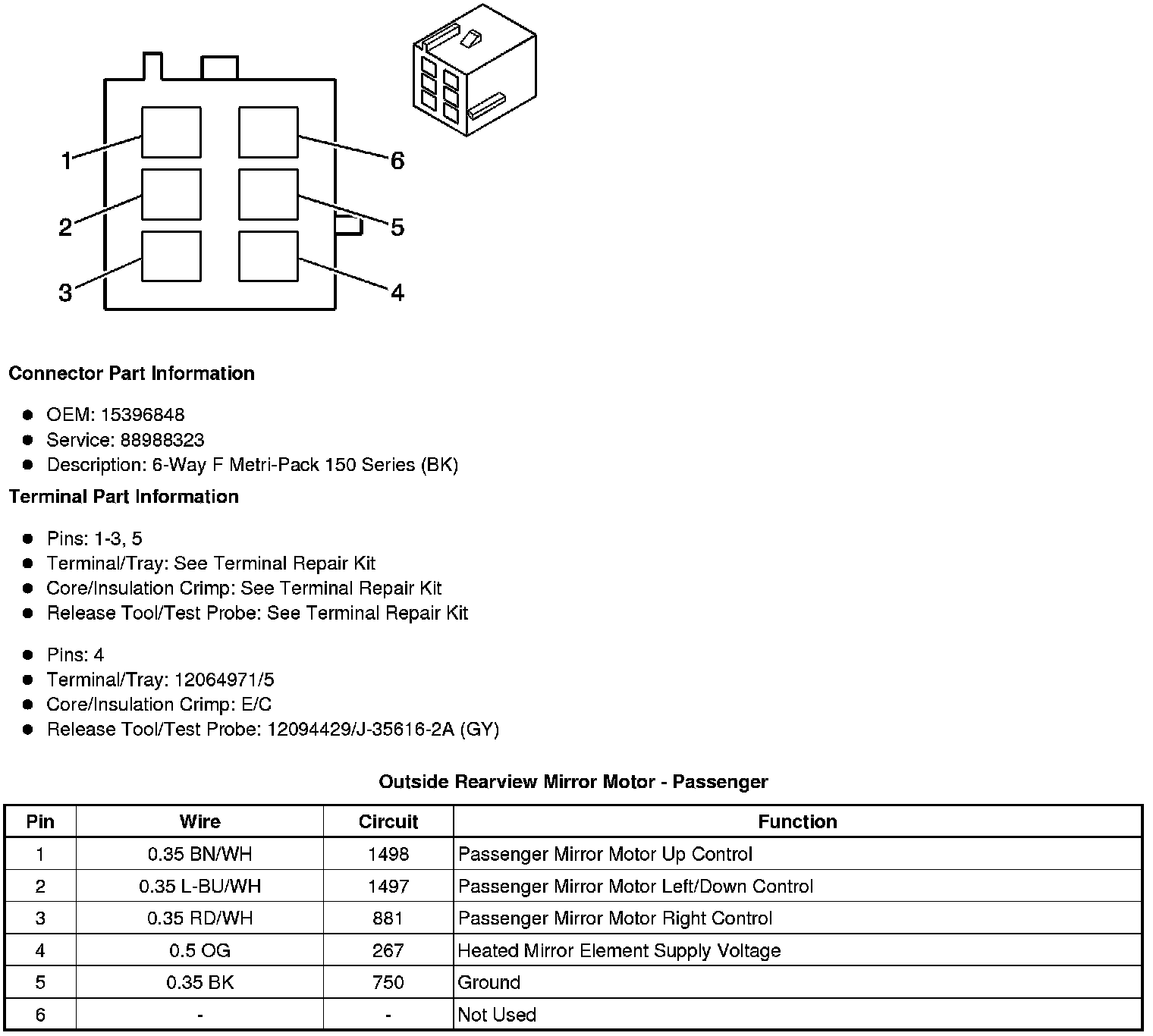

Outside Rearview Mirror Motor - Passenger
