Parking Assist Distance Sensor: Diagrams



Component Connector End Views

Object Sensor - Left Rear Corner

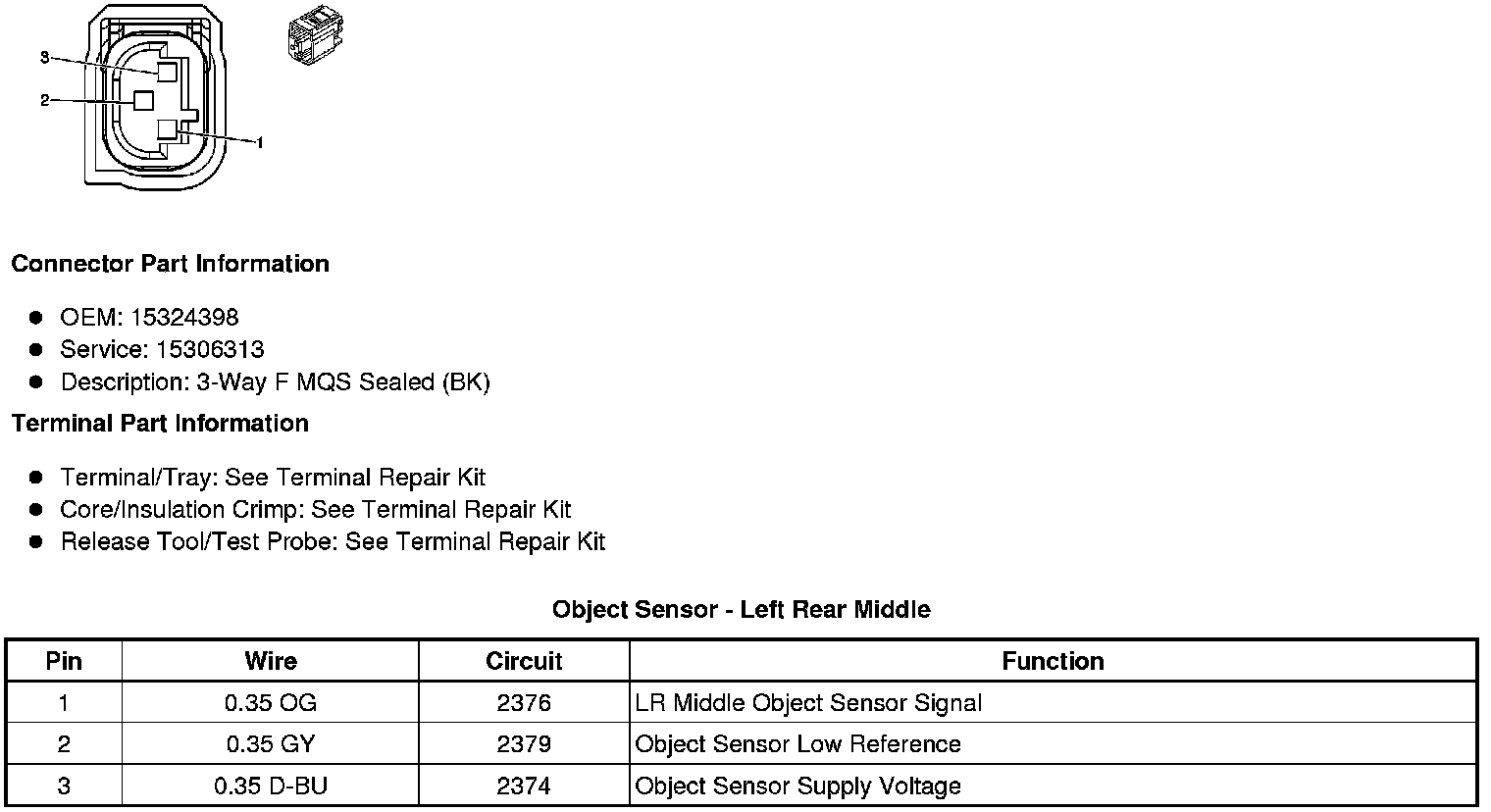

Object Sensor - Left Rear Middle





Object Sensor - Right Rear Corner

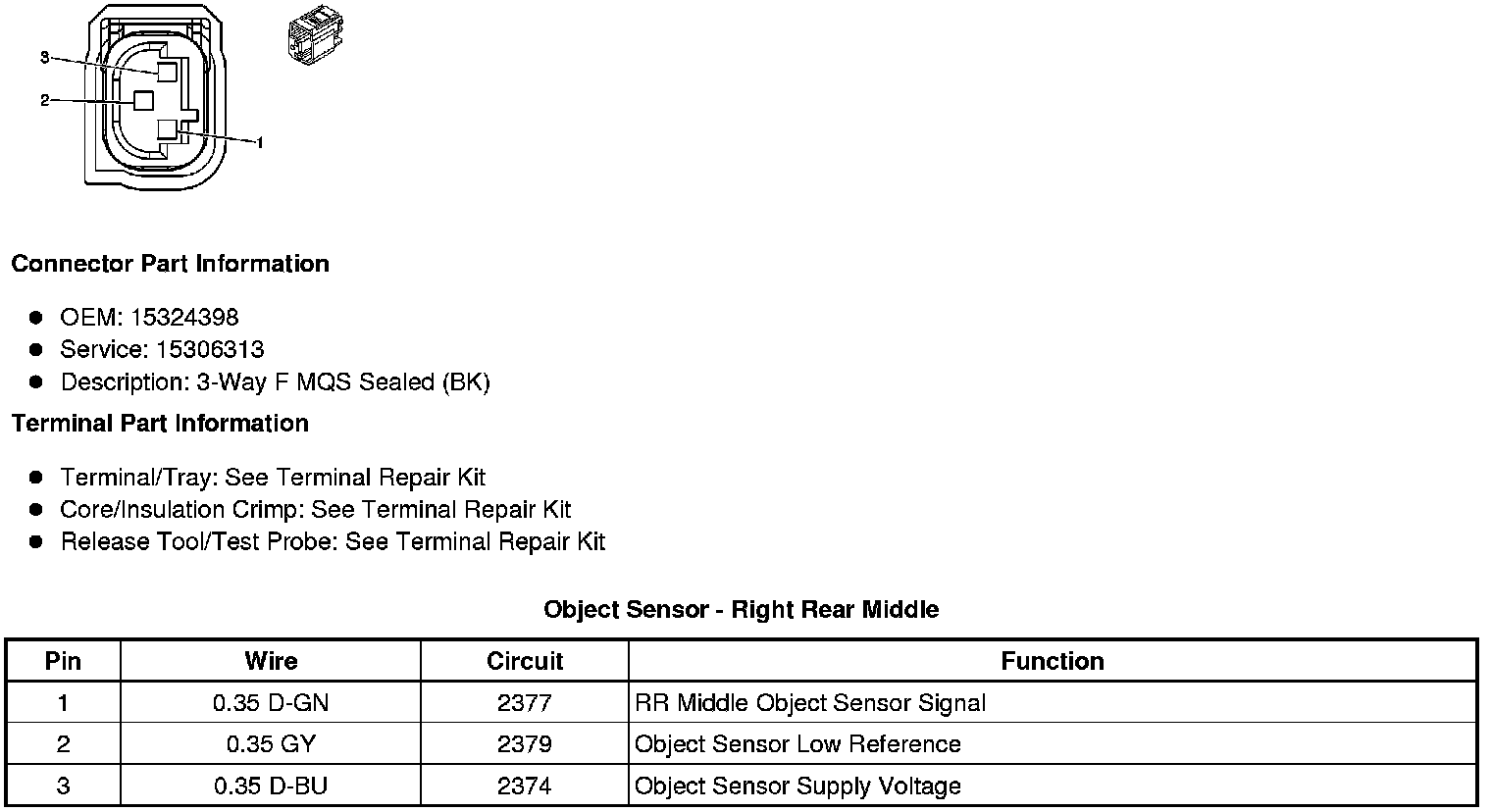

Object Sensor - Right Rear Middle
