Lower Bumper Views



Harness Routing Views

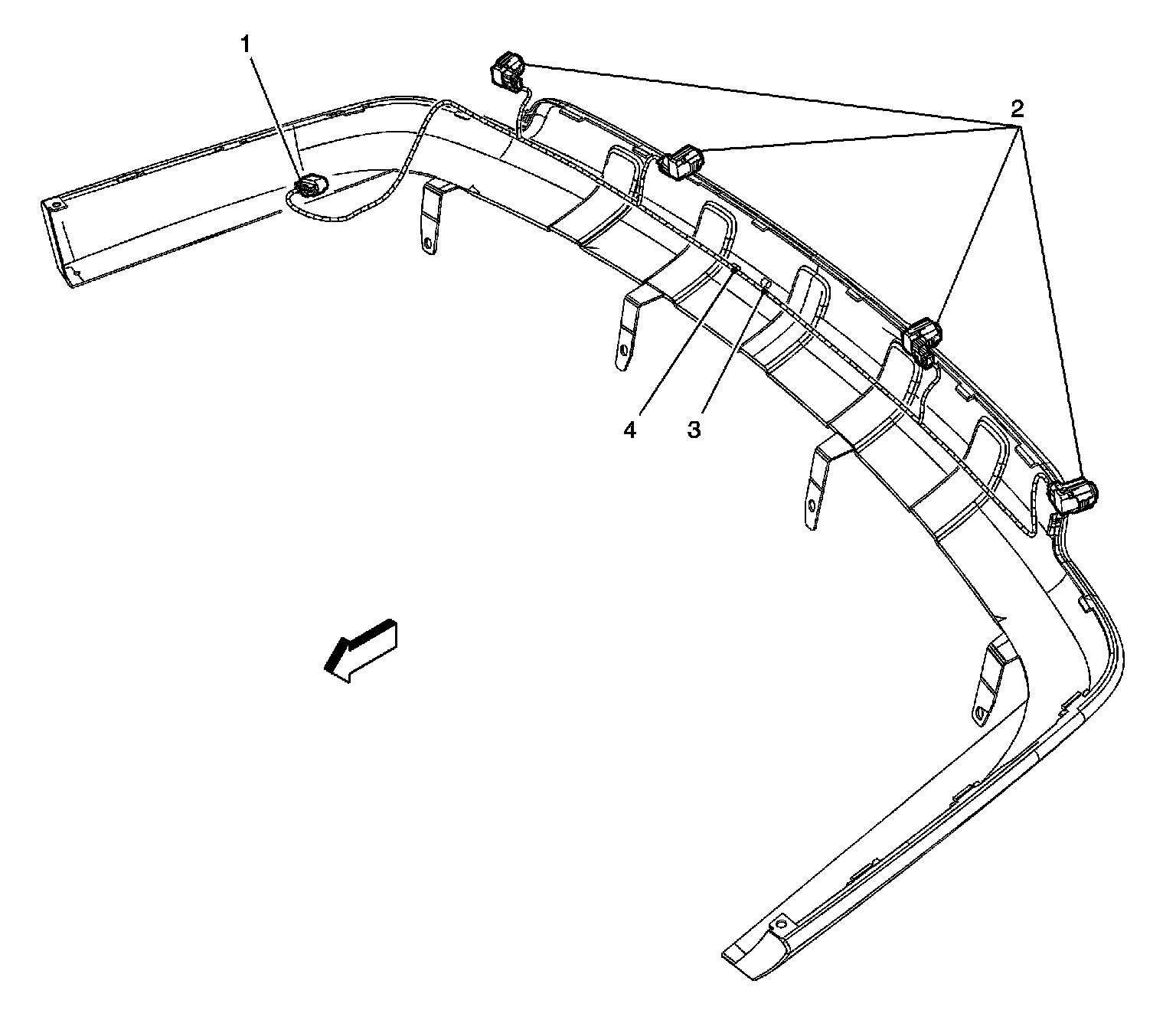

Rear Lower Bumper (RPA Harness) (UD7)




1 - C440 Rear Parking Assist (RPA) Harness to Body Harness
2 - Object Sensors
3 - S482
4 - S480
