Right Side of I/P



Harness Routing Views

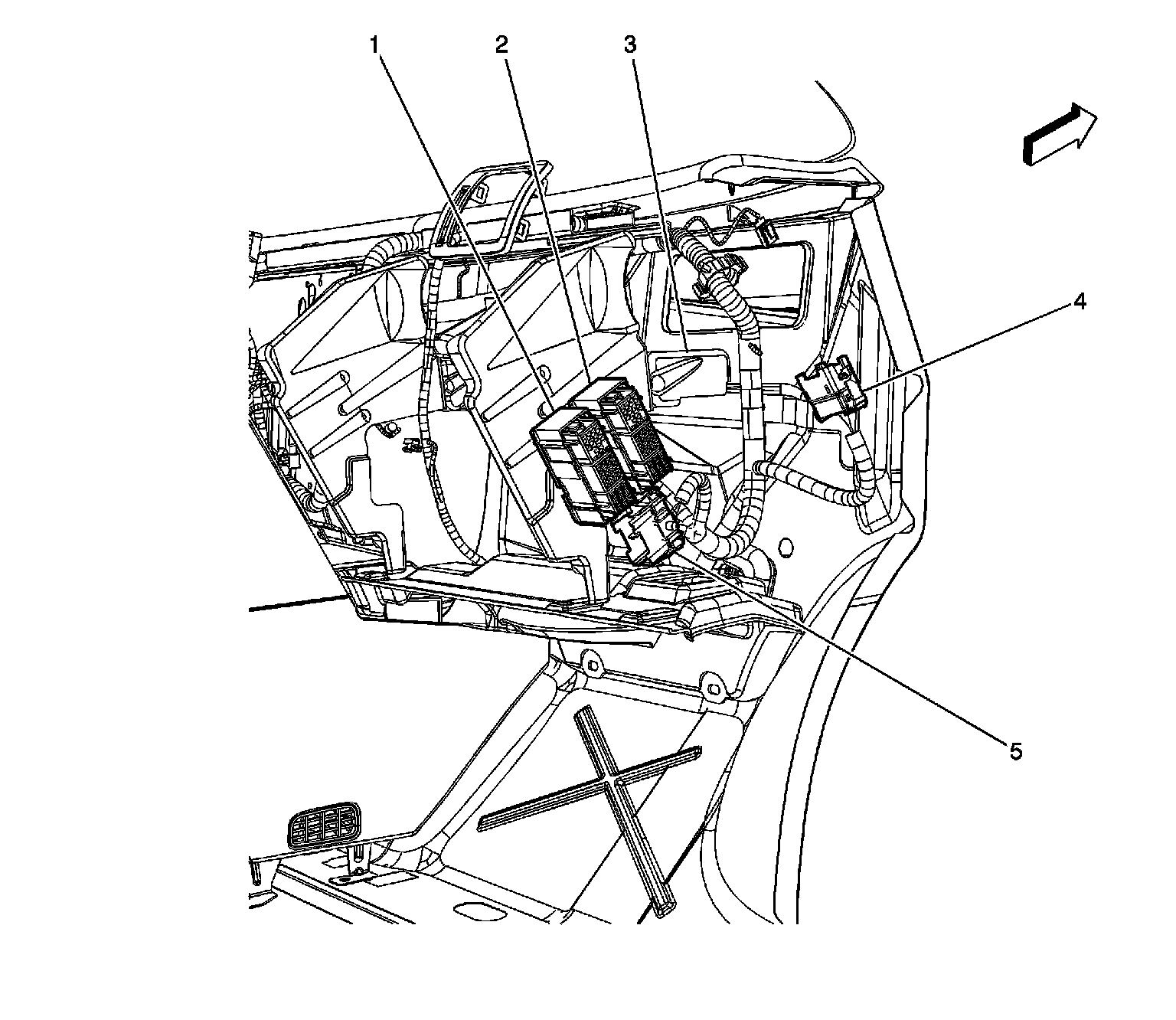

Right Side of I/P




1 - Fuse Block - I/P C1
2 - Fuse Block - I/P C2
3 - G200
4 - C204 Body Harness to I/P Harness
5 - C200 Body Harness to I/P Harness
