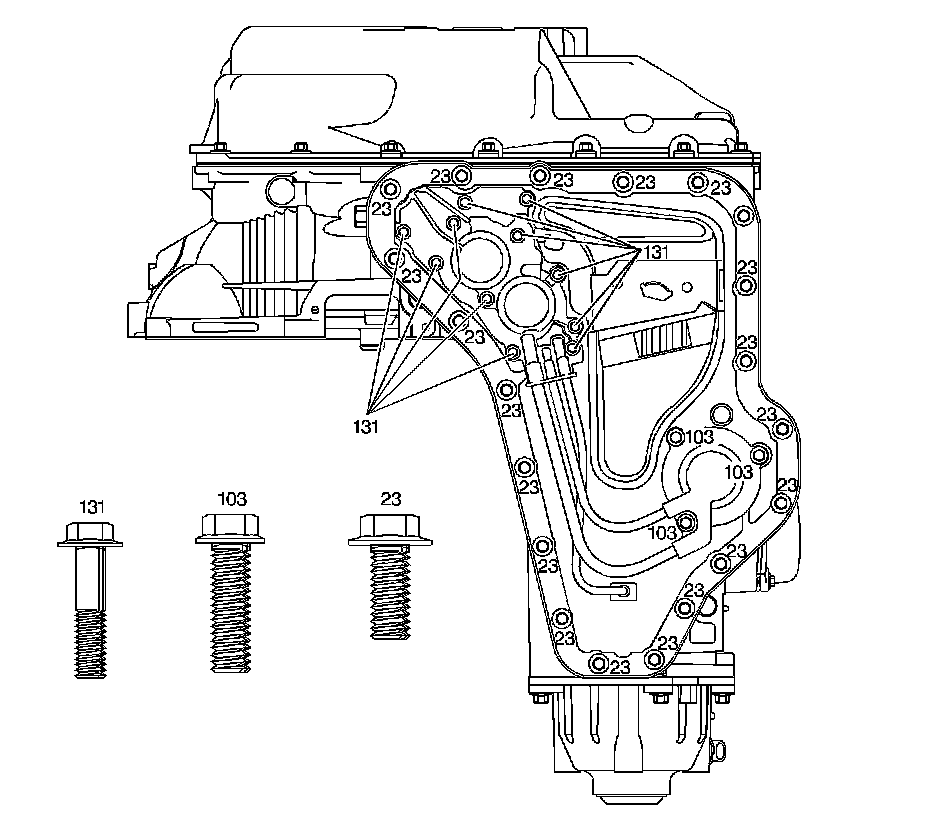

Bottom Pan, Accumulator Cover and Manual 2-1 Band Servo Cover Bolts

Component Location

Bottom Pan, Accumulator Cover and Manual 2-1 Band Servo Cover Bolts

Bottom Pan, Accumulator Cover and Manual 2-1 Band Servo Cover Bolts:

23 - Transmission Oil Pan Bolt M6 X 1.0 X 17.0 (20)
103 - 2-1 Manual Band Servo Cover Bolt/Screw M8 X 1.25 X 25.0 (3)
131 - Accumulator Cover Bolt/Screw M6 X 1.0 X 28.0 (11)
