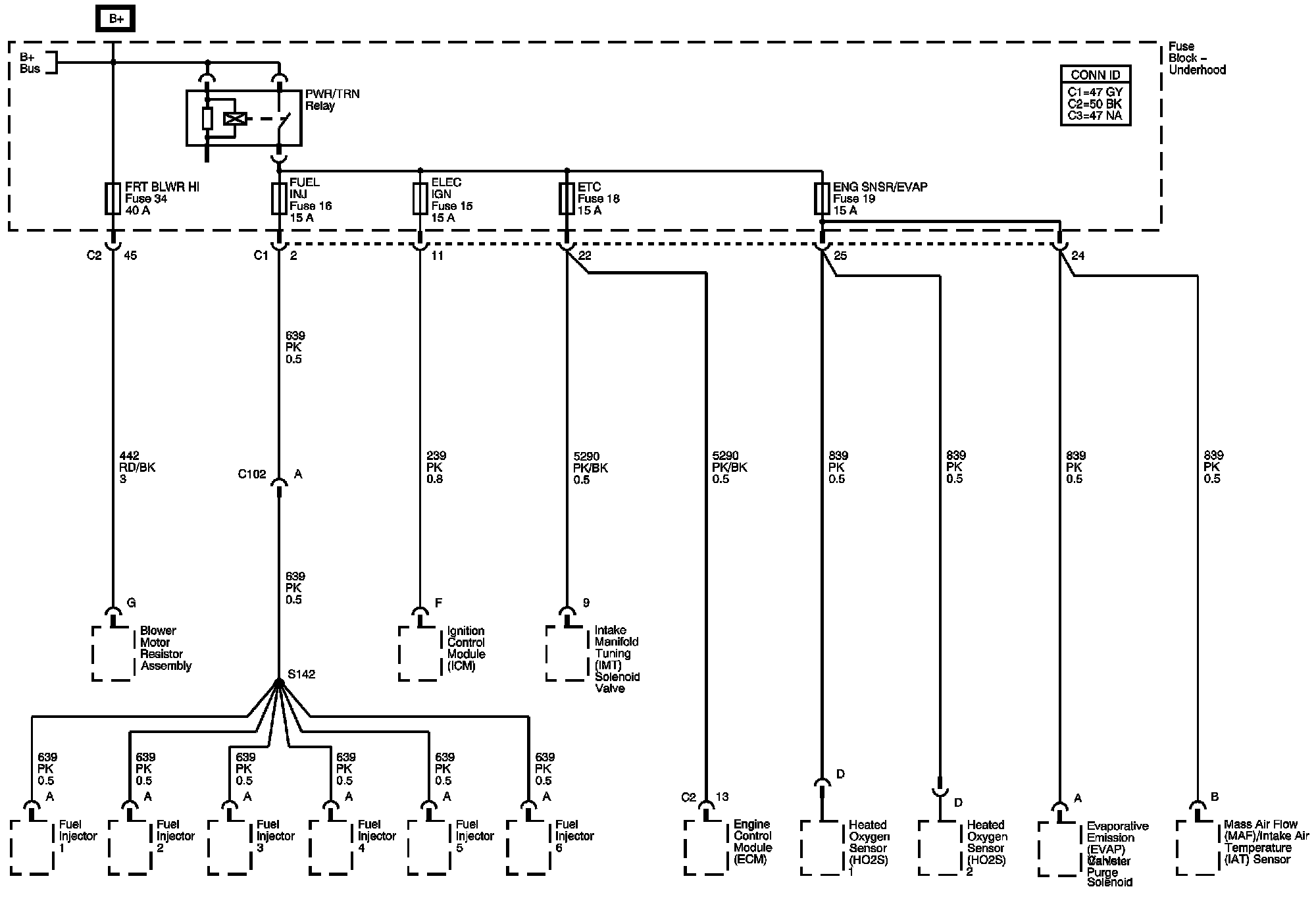

Power Distribution Diagram 8



Power Distribution Schematics

ELEC IGN, ENG SNSR/EVAP, ETC, FRT BLWR HI, and FUEL INJ Fuses





Next Diagram: Power Distribution Diagram 9

Previous Diagram: Power Distribution Diagram 7

Locations:The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
