Power Distribution Diagram 2

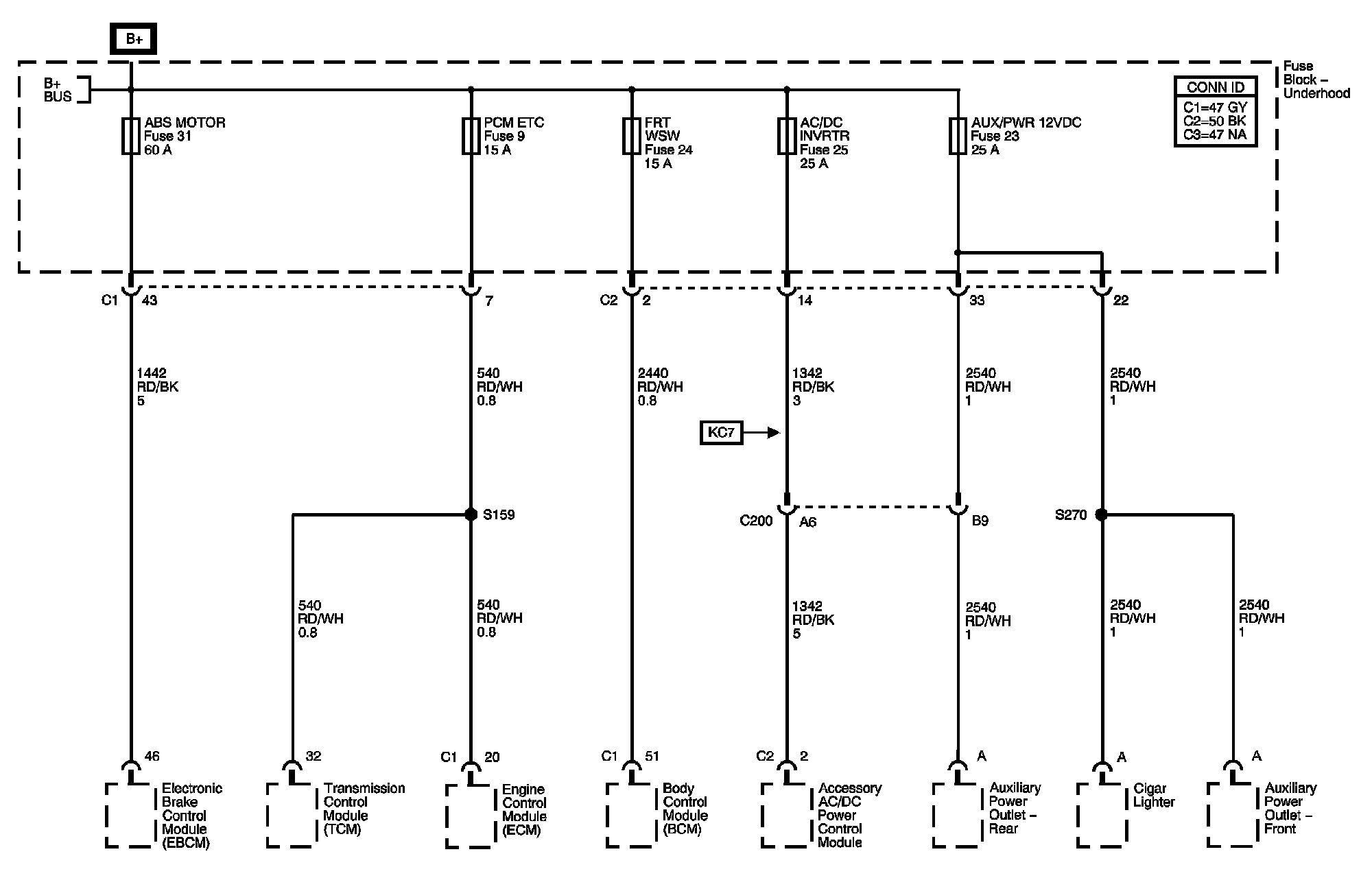

Power Distribution Schematics

ABS MOTOR, AC/DC INVRTR, AUX/PWR 12VDC, FRT WSW, and PCM Fuses





Next Diagram: Power Distribution Diagram 3

Previous Diagram: Power Distribution Diagram 1

Locations:The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
