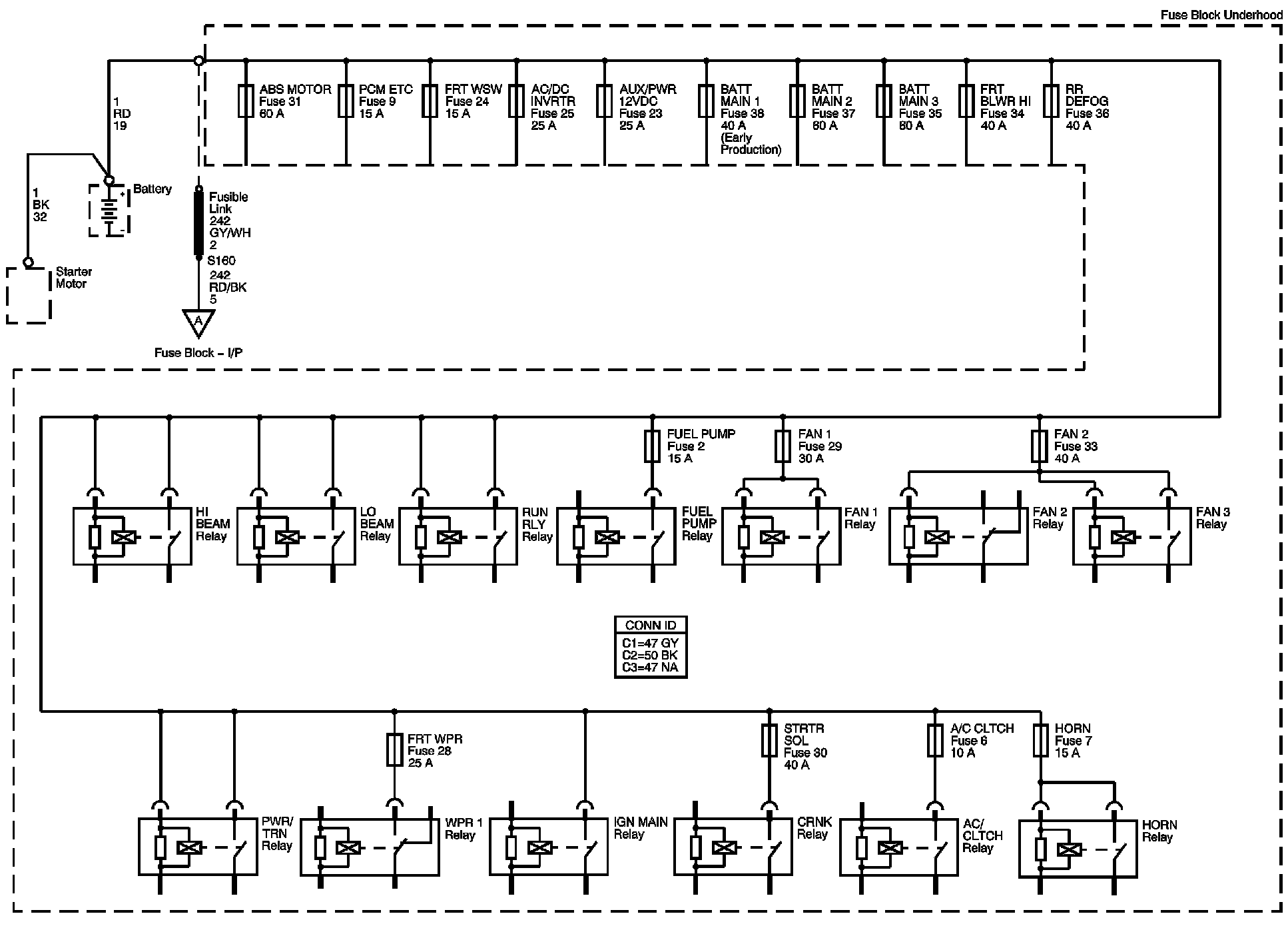

Power Distribution Diagram 1



Power Distribution Schematics

B+ Bus





Next Diagram: Power Distribution Diagram 2

Locations:The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
