Auxiliary Power Outlet

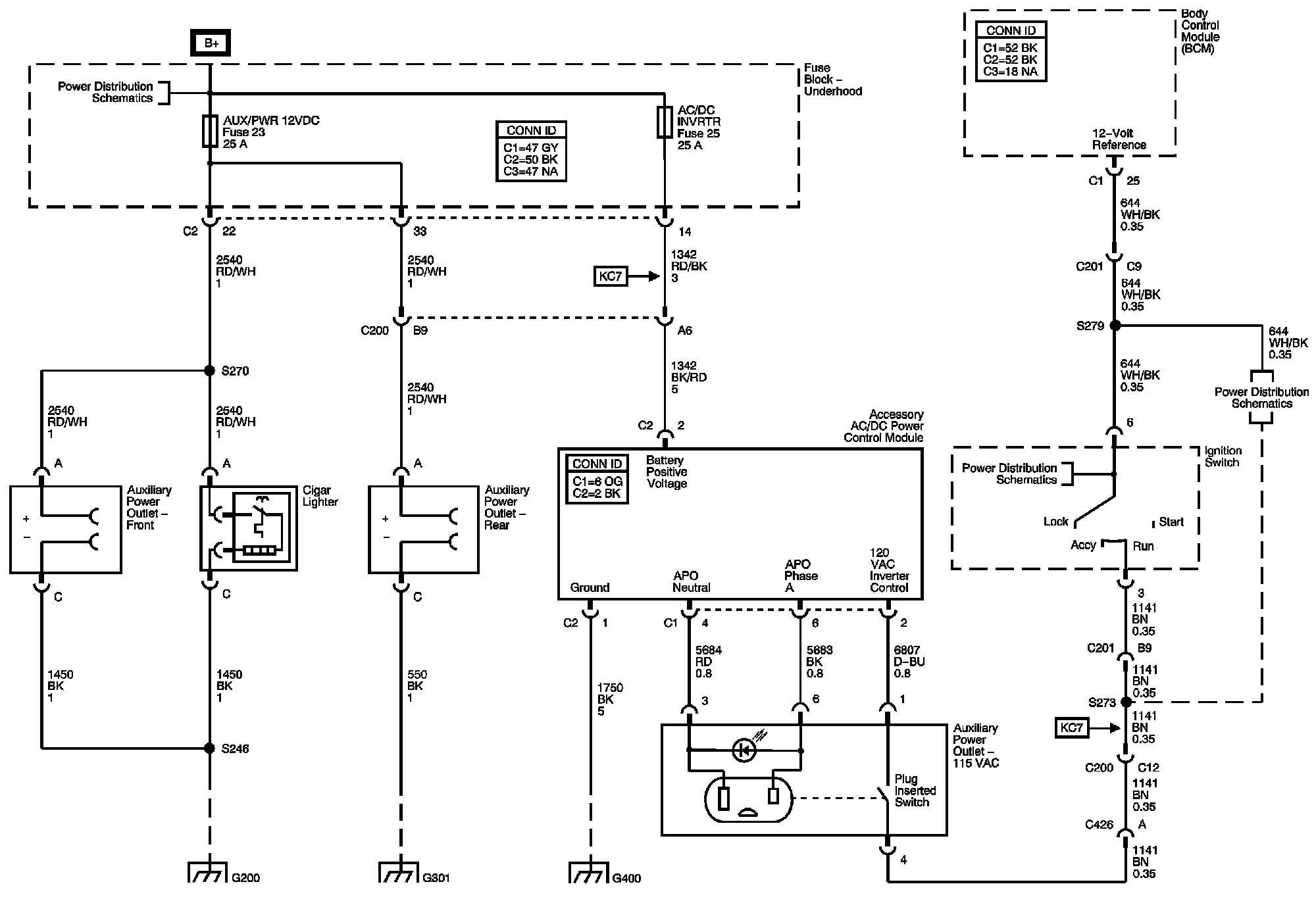

Cigar Lighter/Power Outlet Schematics






Locations:The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
