Rear Seat Schematics

Rear Seat Schematics

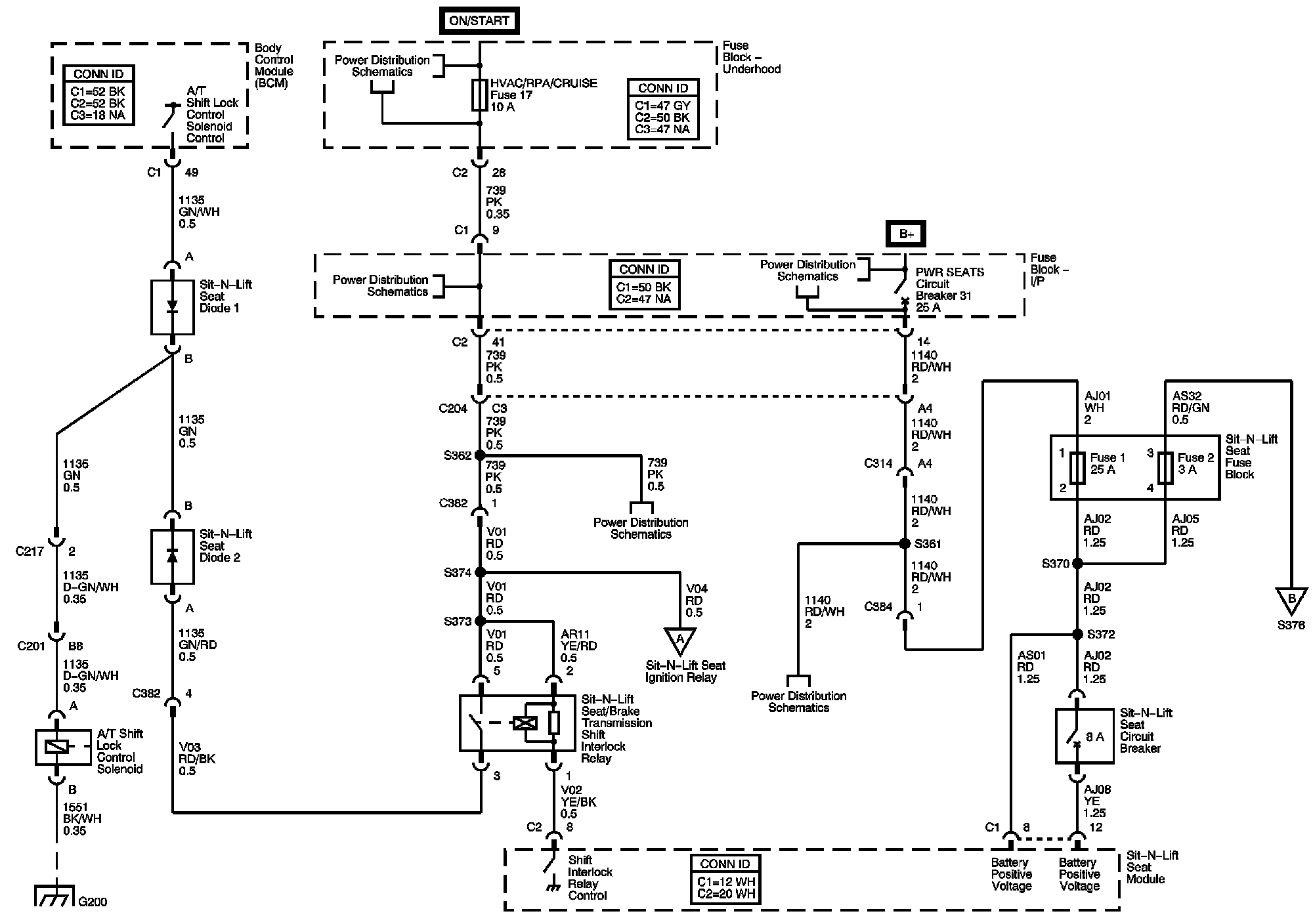

Sit-N-Lift Seat Power and A/T Shift Interlock

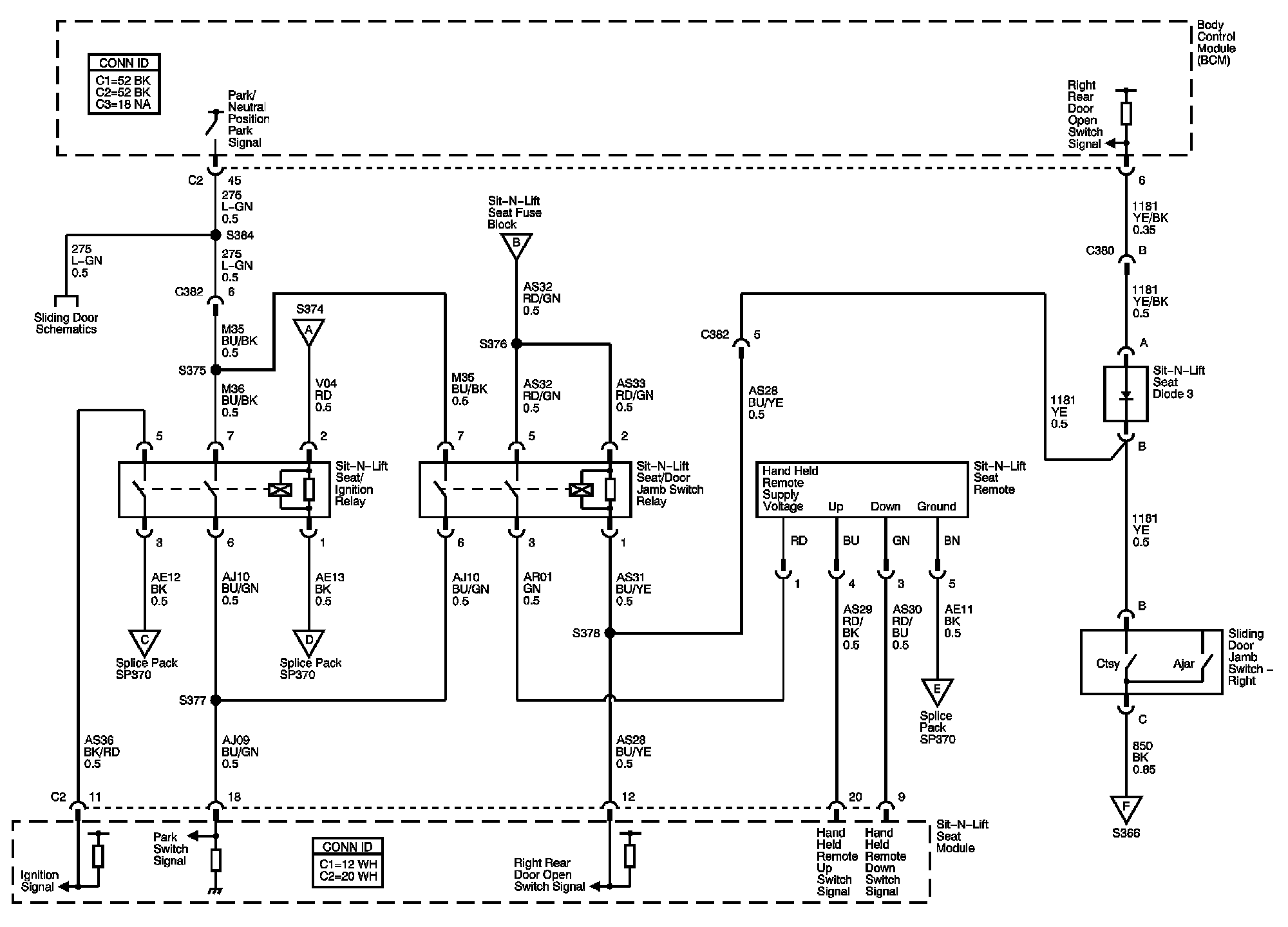

Sit-N-Lift Seat Door and PNP Interlocks, and Remote

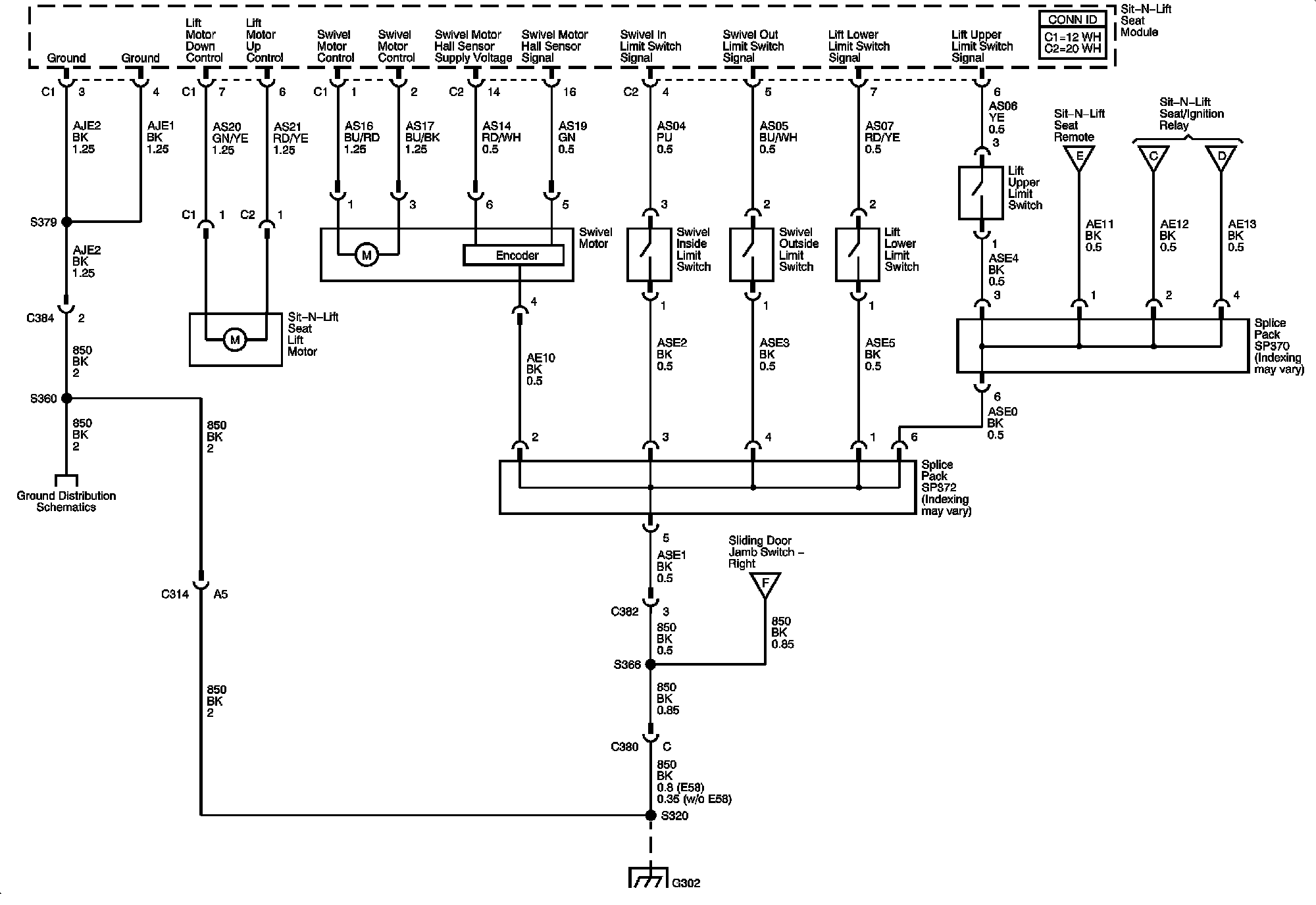

Sit-N-Lift Seat Grounds and Motors Controls






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
