Passenger Seat Schematics



Passenger Seat Schematics

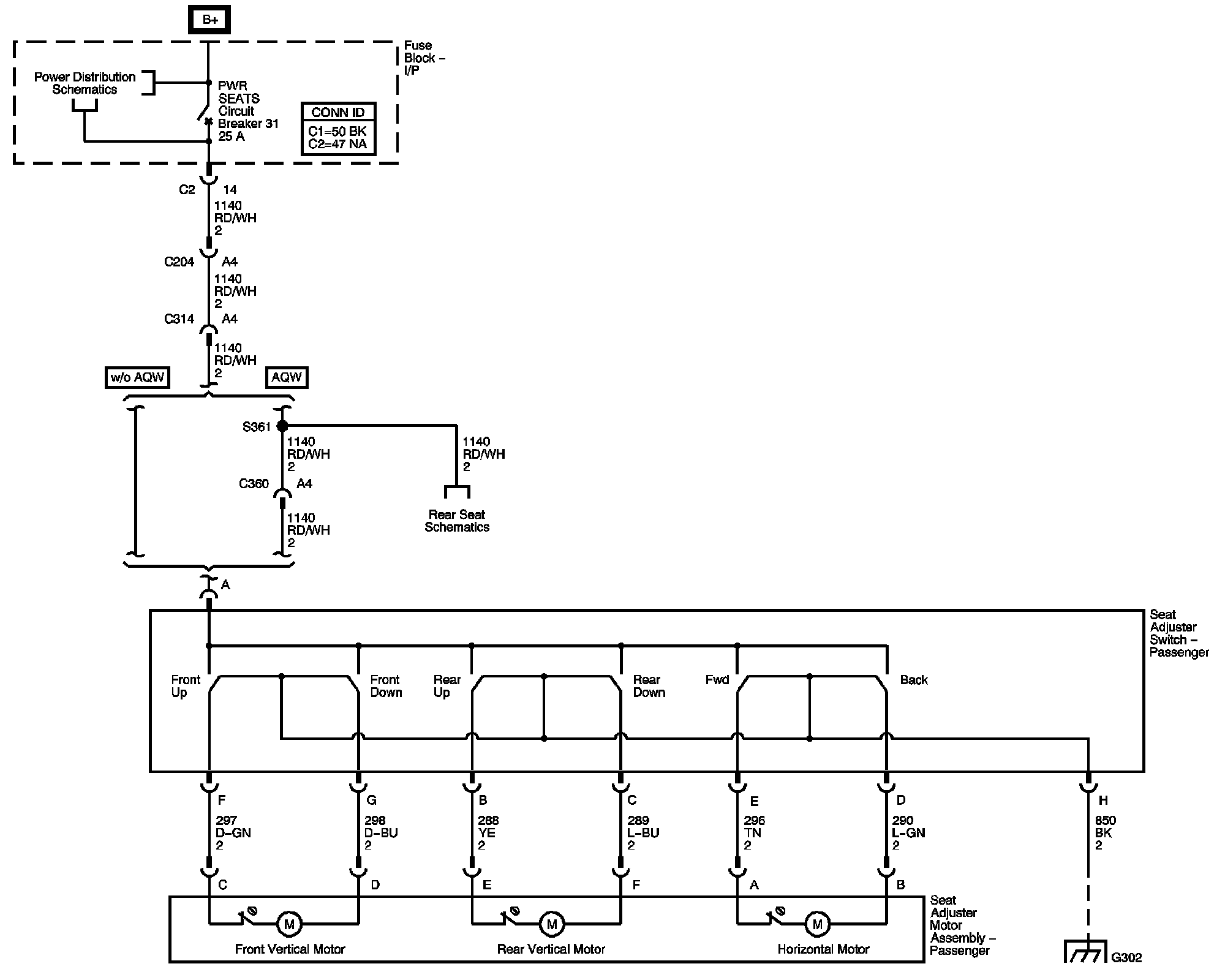

6-Way Power Seat

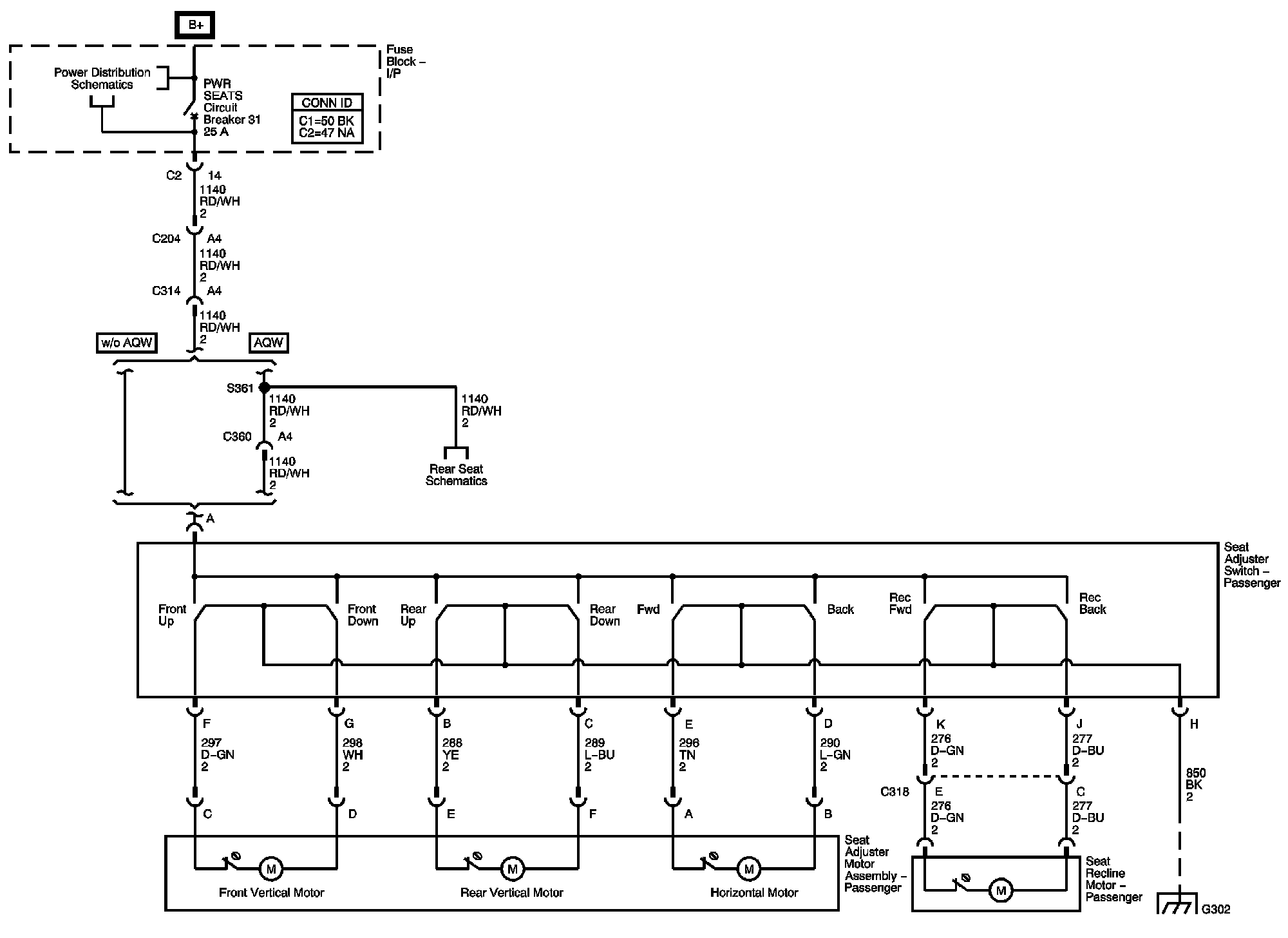

8-Way Power Seat






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
