Driver Seat Schematics



Driver Seat Schematics

Power Seat

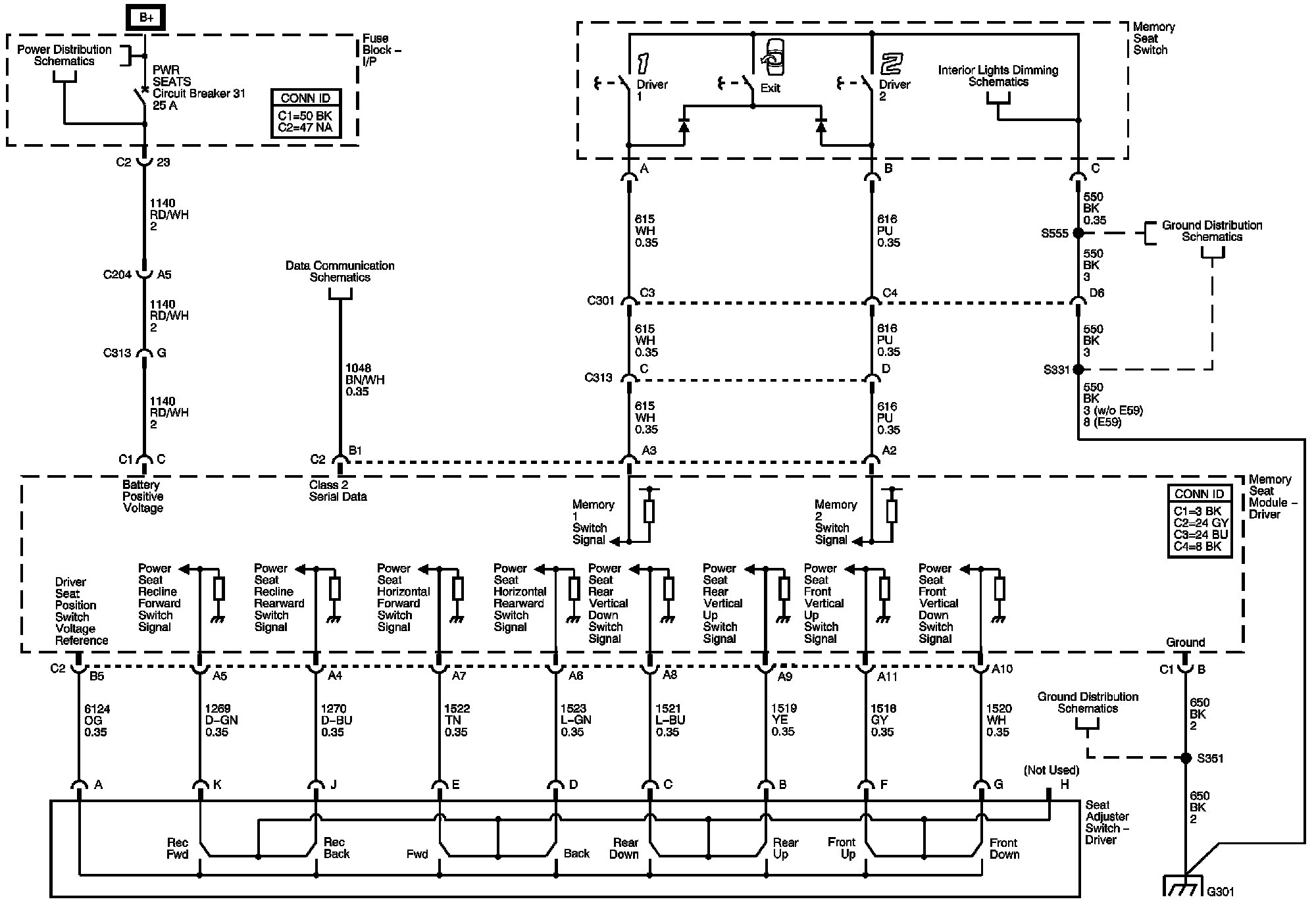

Memory Seat Controls

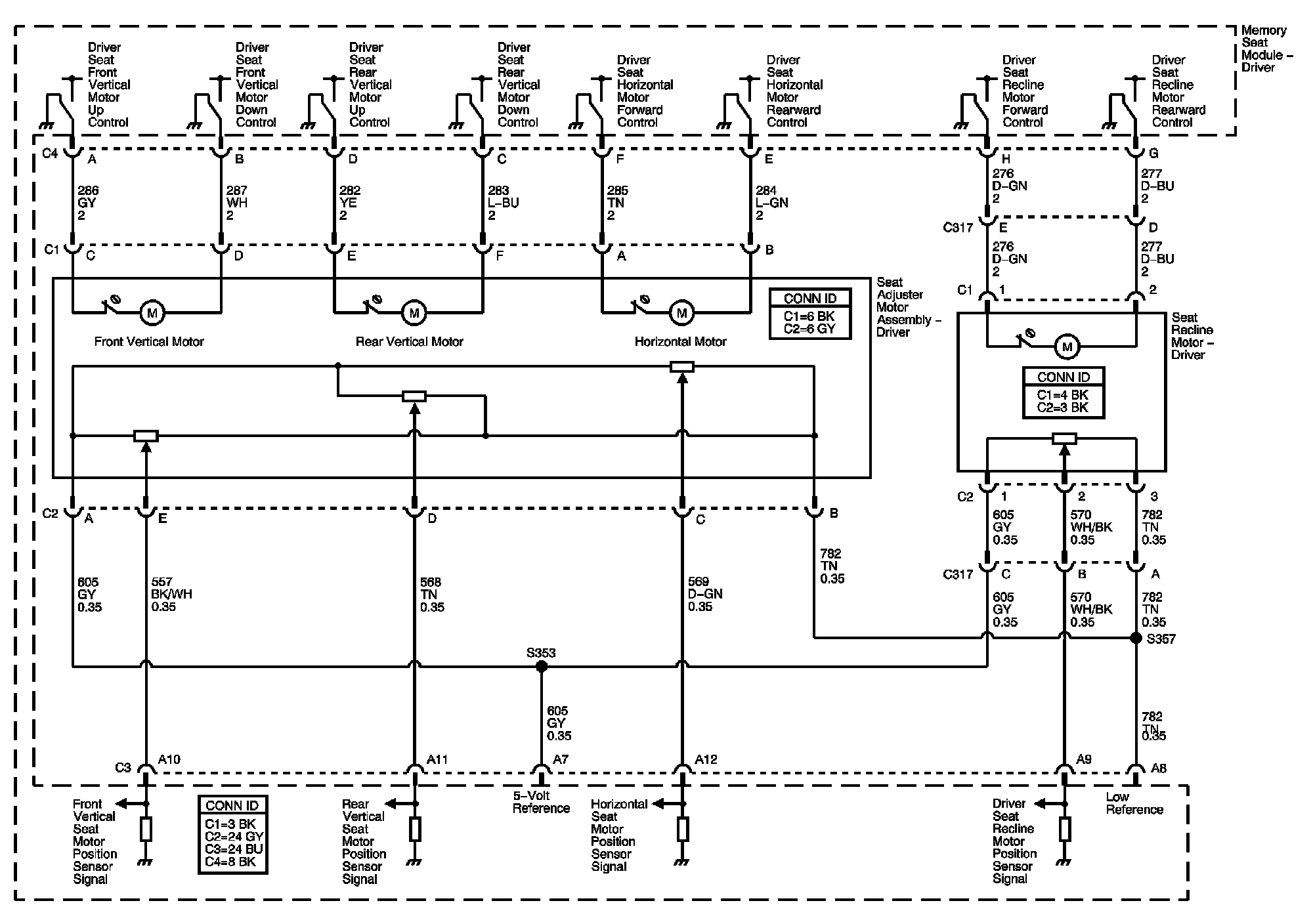

Memory Seat Motors and Sensors






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
