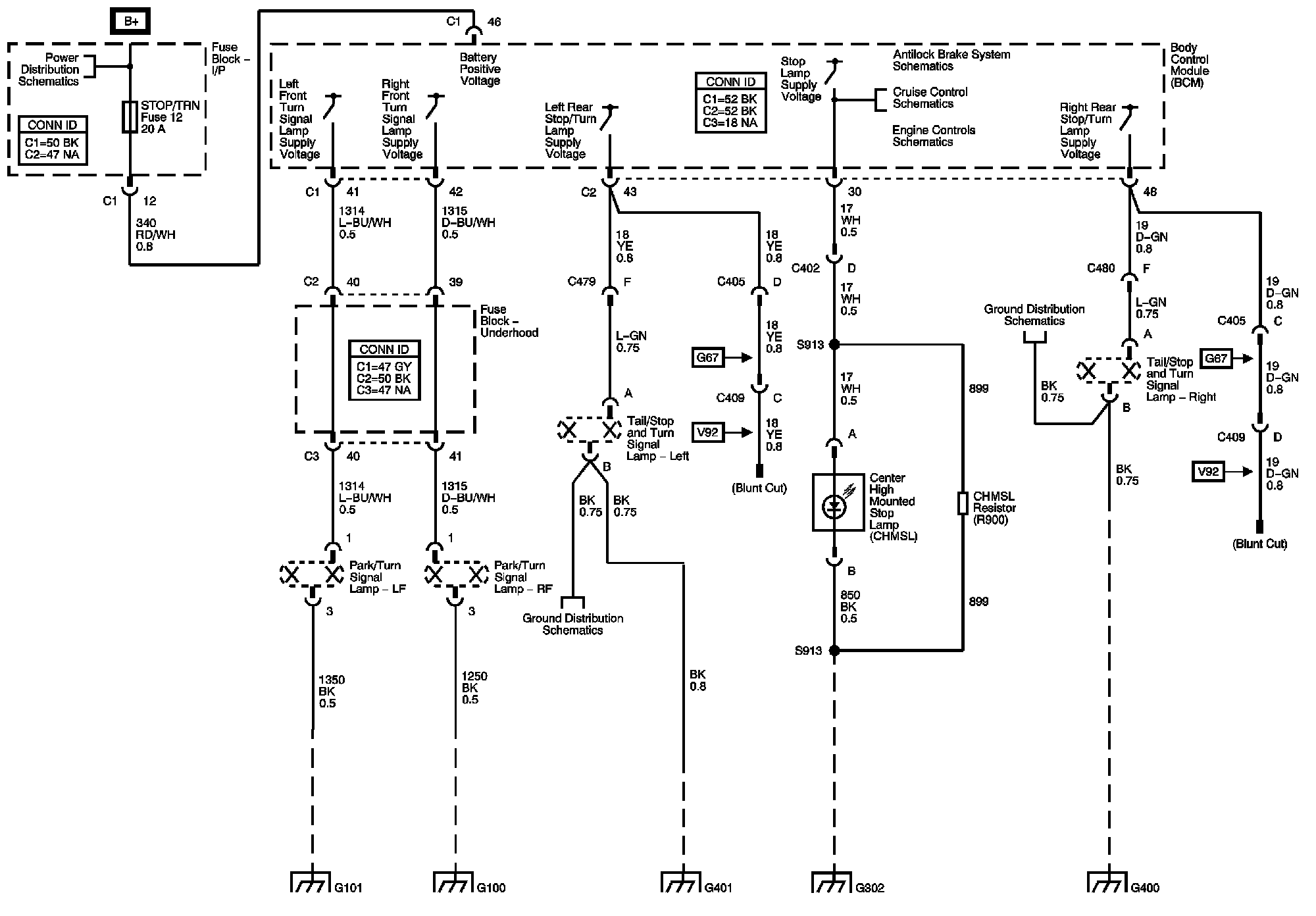

Exterior Lights Diagram 3

Exterior Lights Schematics

Stop/Turn Signal Lamps





Next Diagram: Exterior Lights Diagram 4

Previous Diagram: Exterior Lights Diagram 2

Locations:The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
