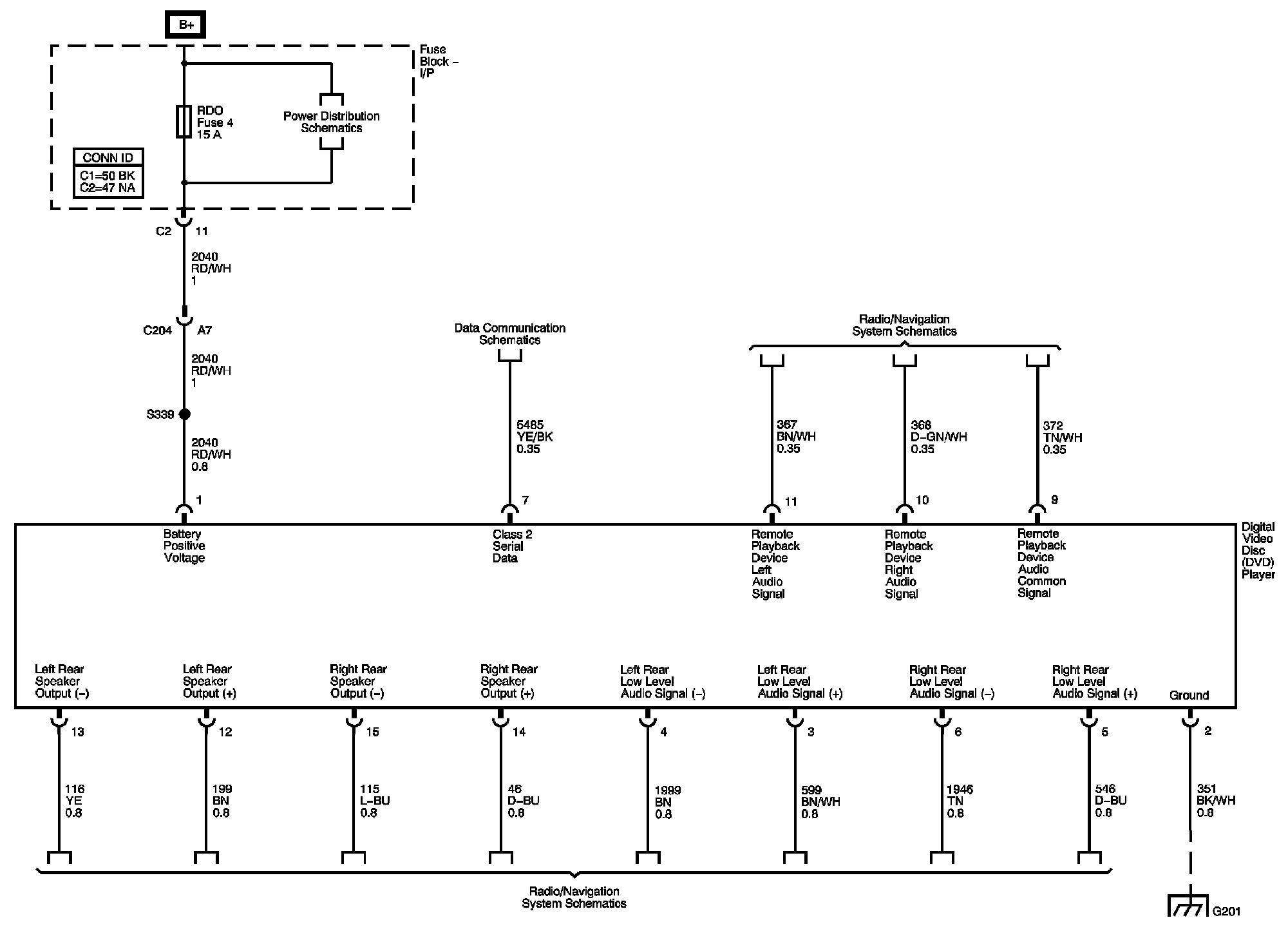

Video System Schematics (w/o UMS)



Video System Schematics (w/o UMS)






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
