Radio/Navigation System Schematics

Radio/Navigation System Schematics

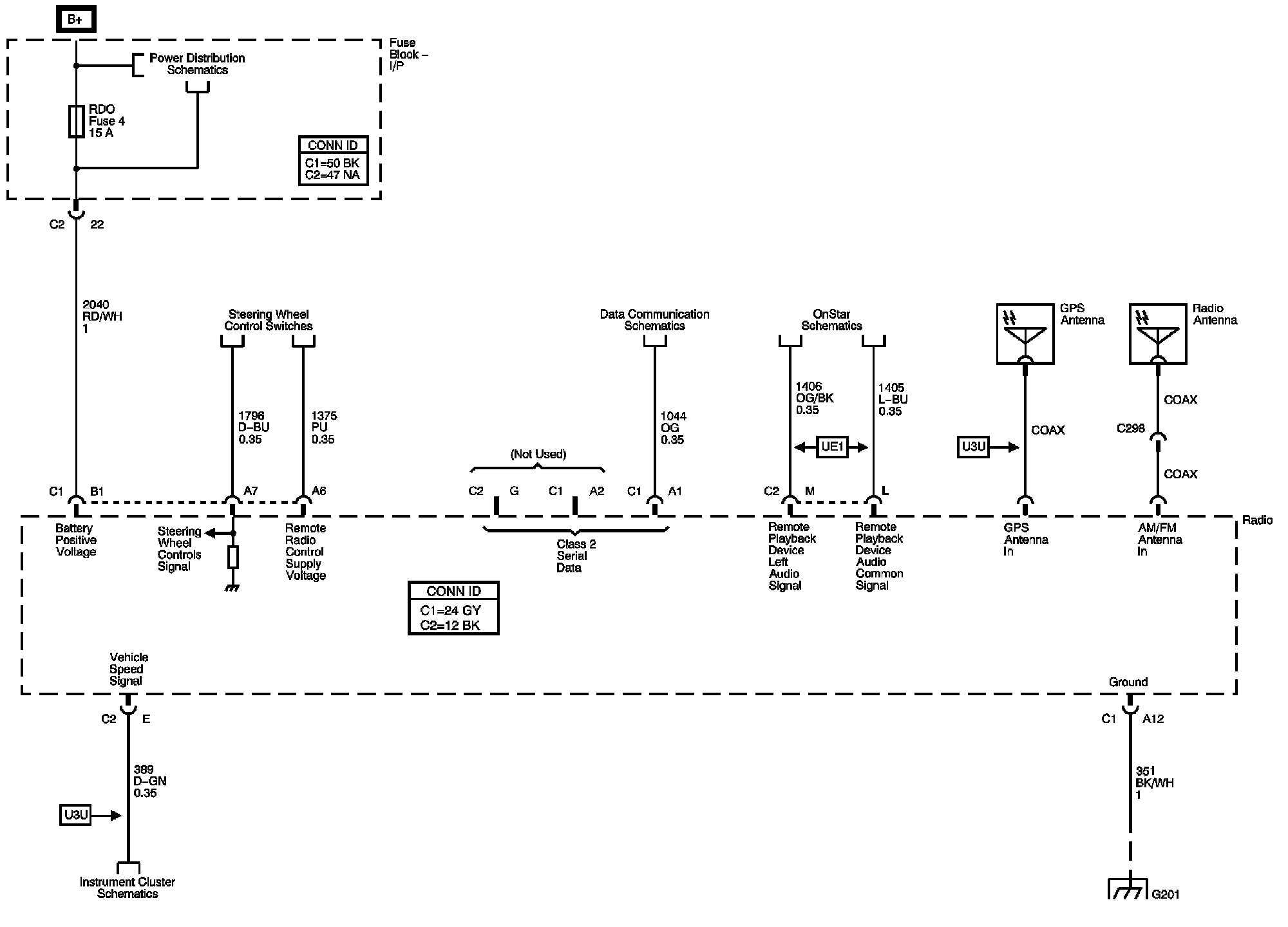

Antennas, Ground, Power, and Subsystem References

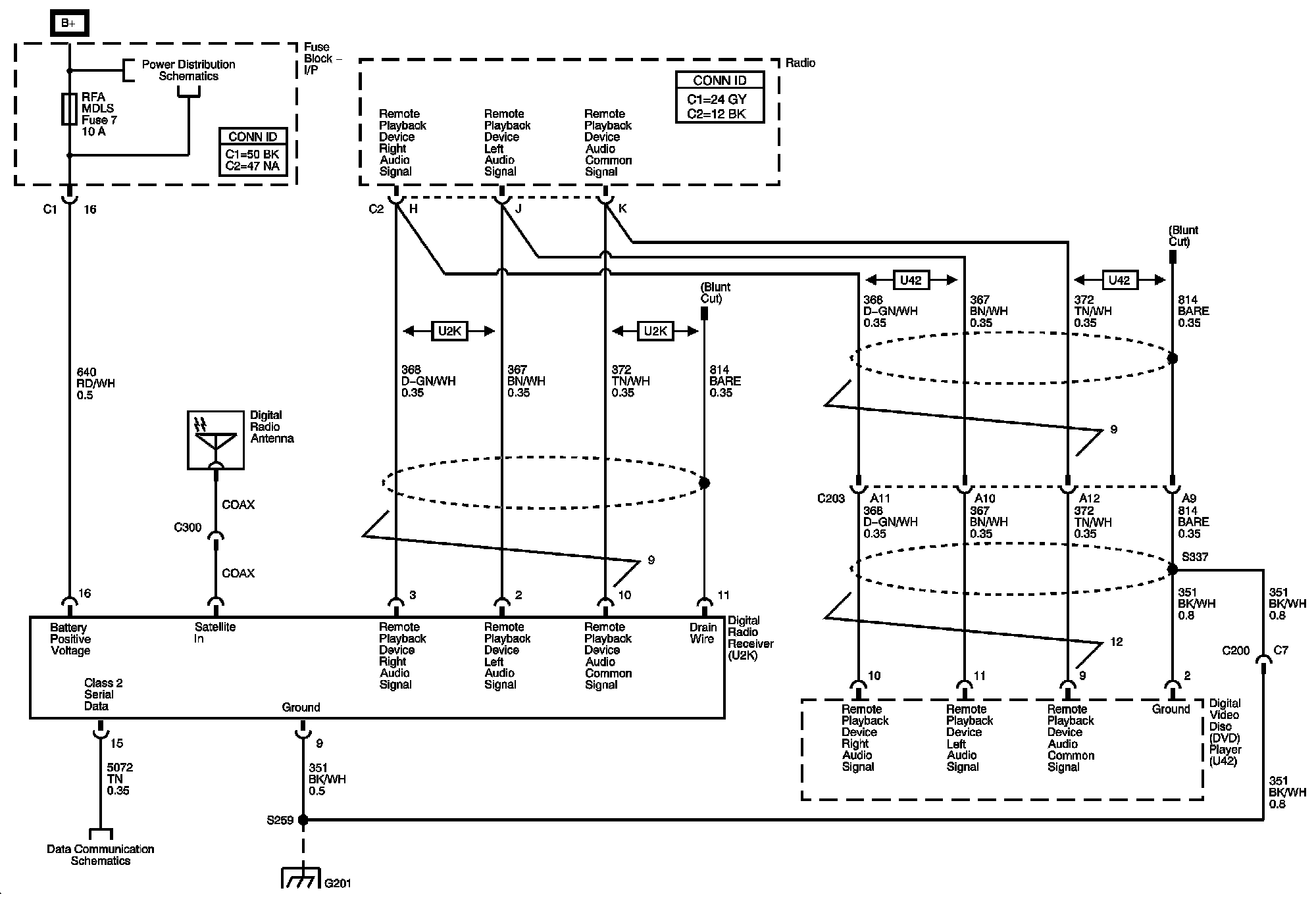

DVD and Satellite Audio Sources






Front Speakers

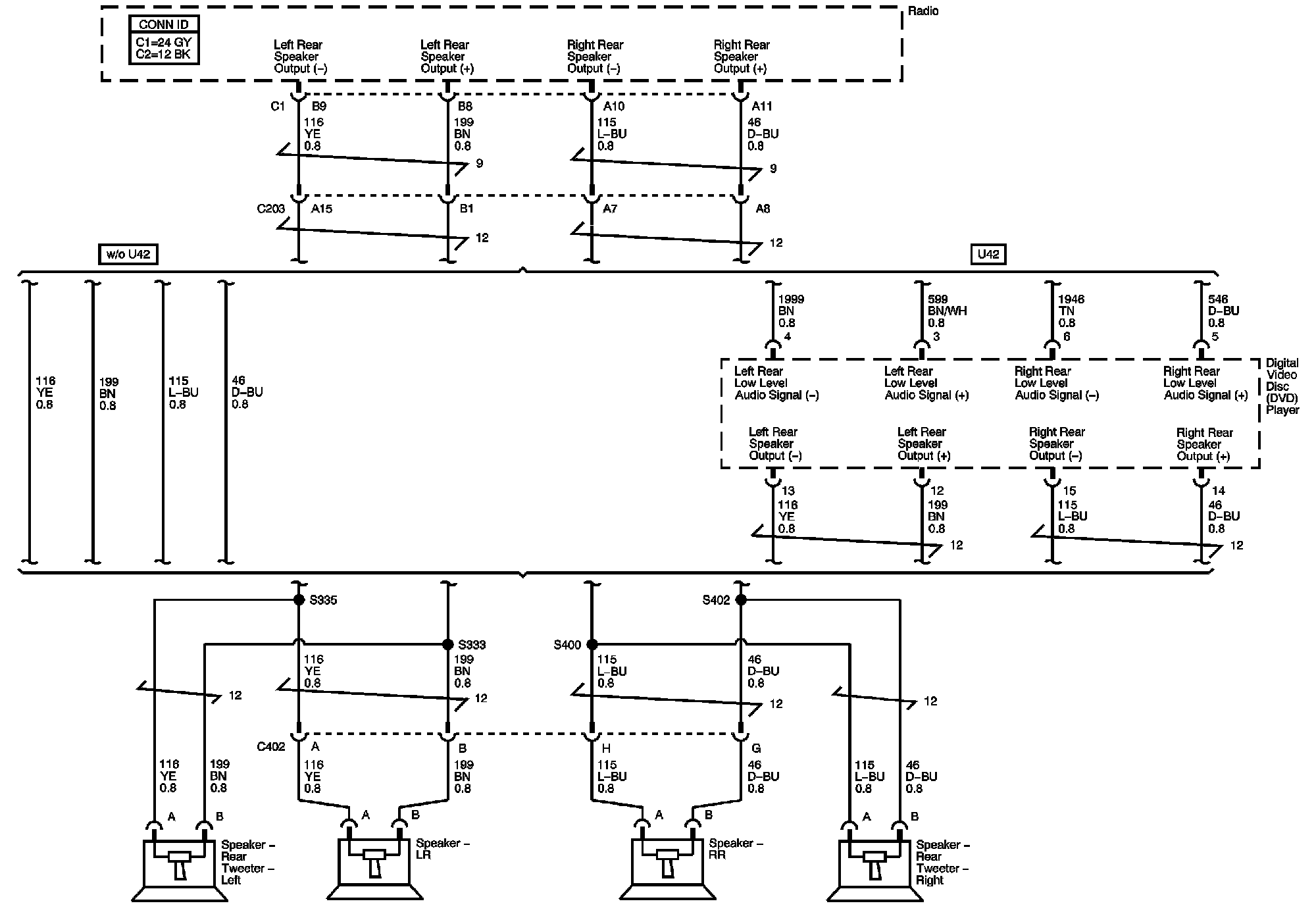

Rear Speakers

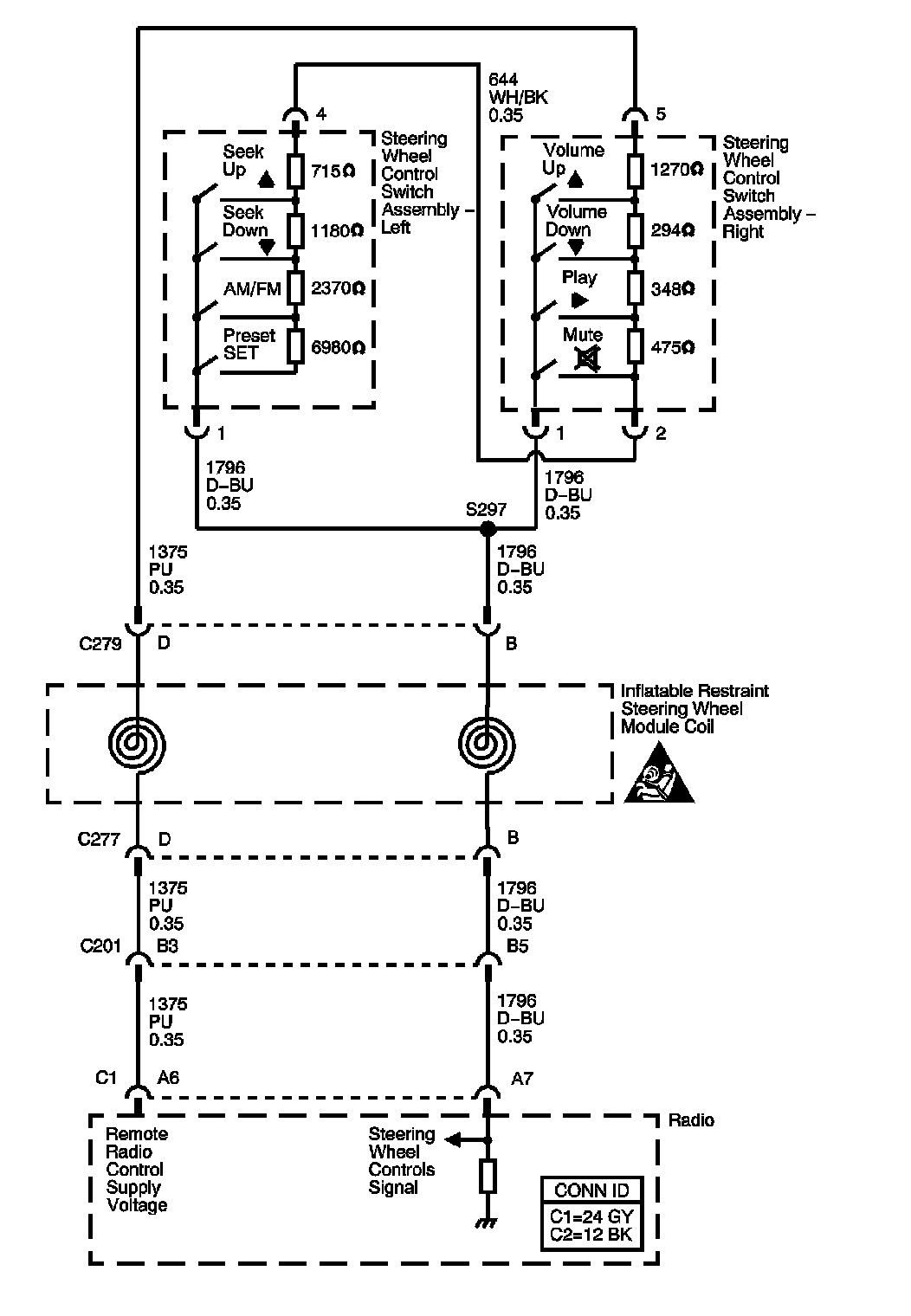

Steering Wheel Controls






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
