Theft Deterrent System Schematics



Theft Deterrent System Schematics

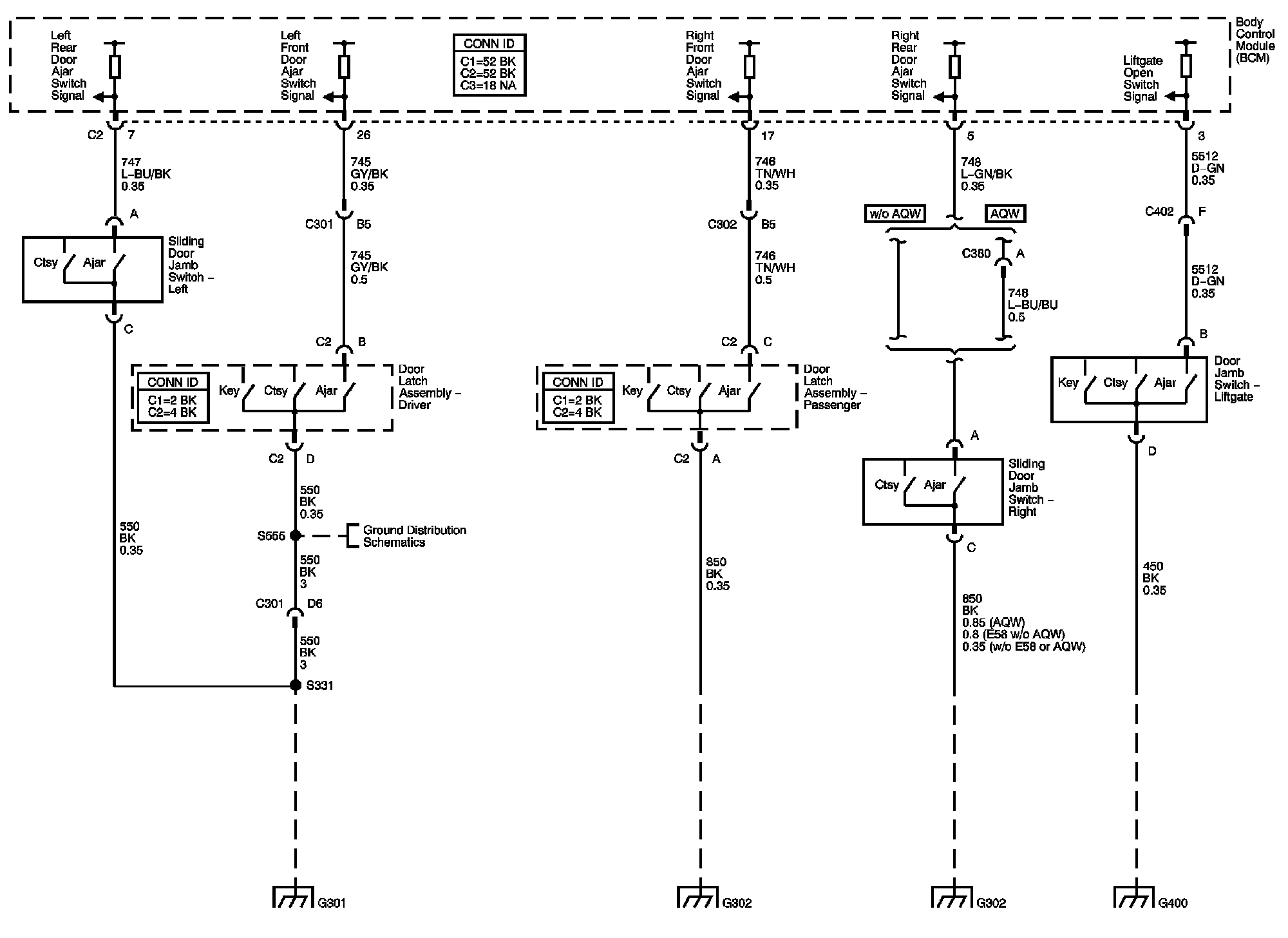

Ajar Switches

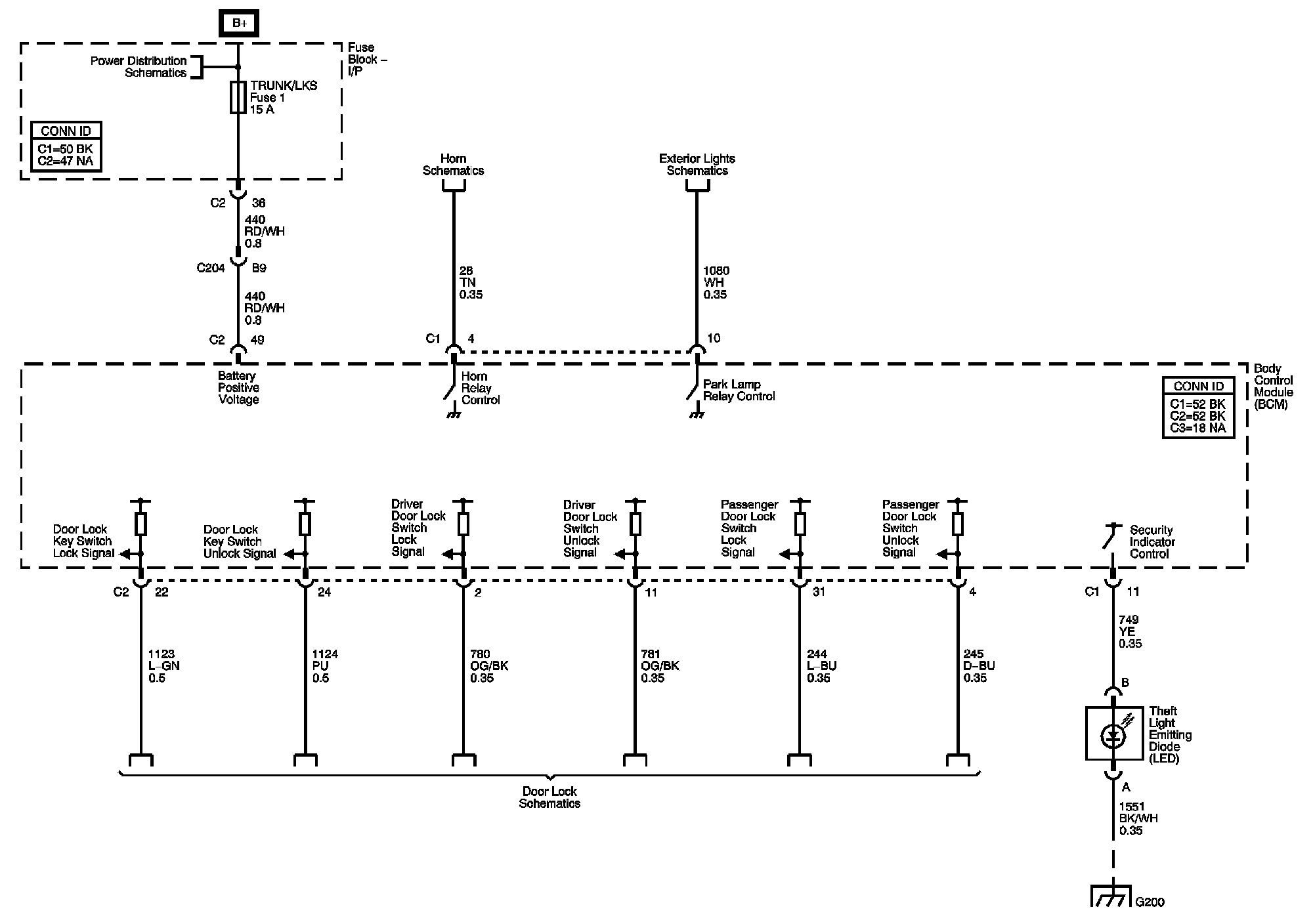

Arm, Disarm, and Warning






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
