C277
Inline Harness Connector End Views

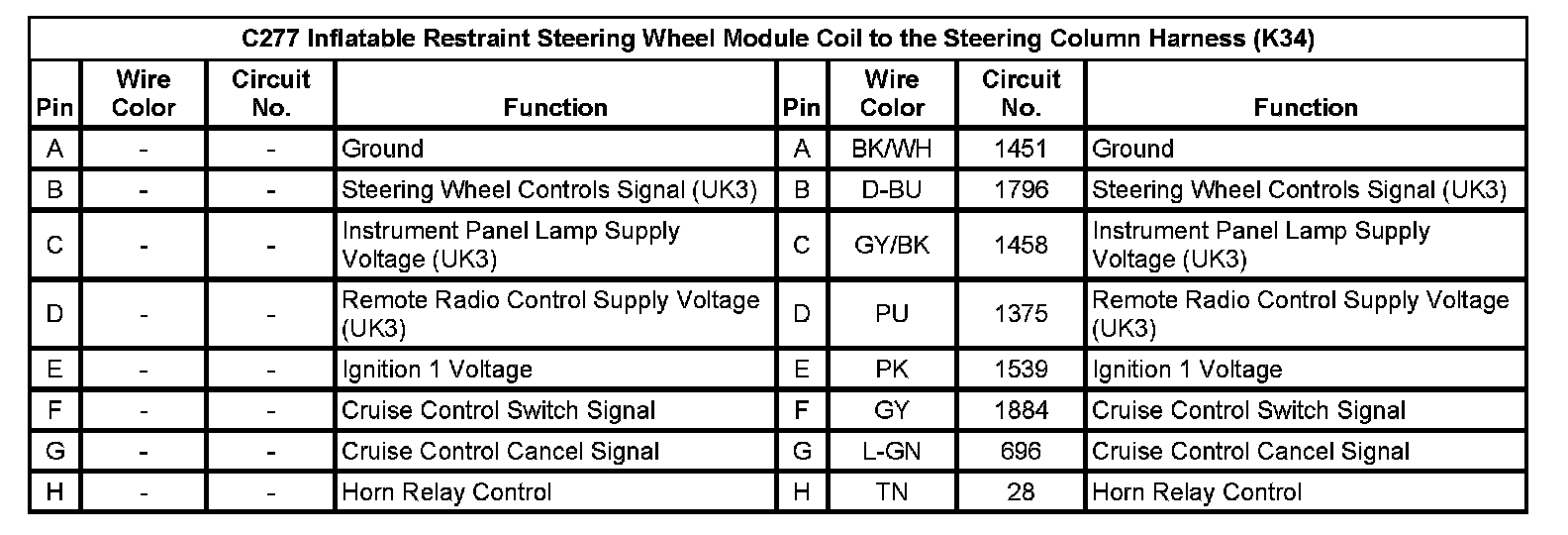

C277 Inflatable Restraint Steering Wheel Module Coil to the Steering Column Harness (K34)
C277 Inflatable Restraint Steering Wheel Module Coil to the Steering Column Harness (w/o K34)
Inline Harness Connector End Views
C277 Inflatable Restraint Steering Wheel Module Coil to the Steering Column Harness (K34)
C277 Inflatable Restraint Steering Wheel Module Coil to the Steering Column Harness (w/o K34)
