Vehicle, Engine and Transmission ID and VIN Location, Derivative and Usage

Vehicle, Engine and Transmission ID and VIN Location, Derivative and Usage

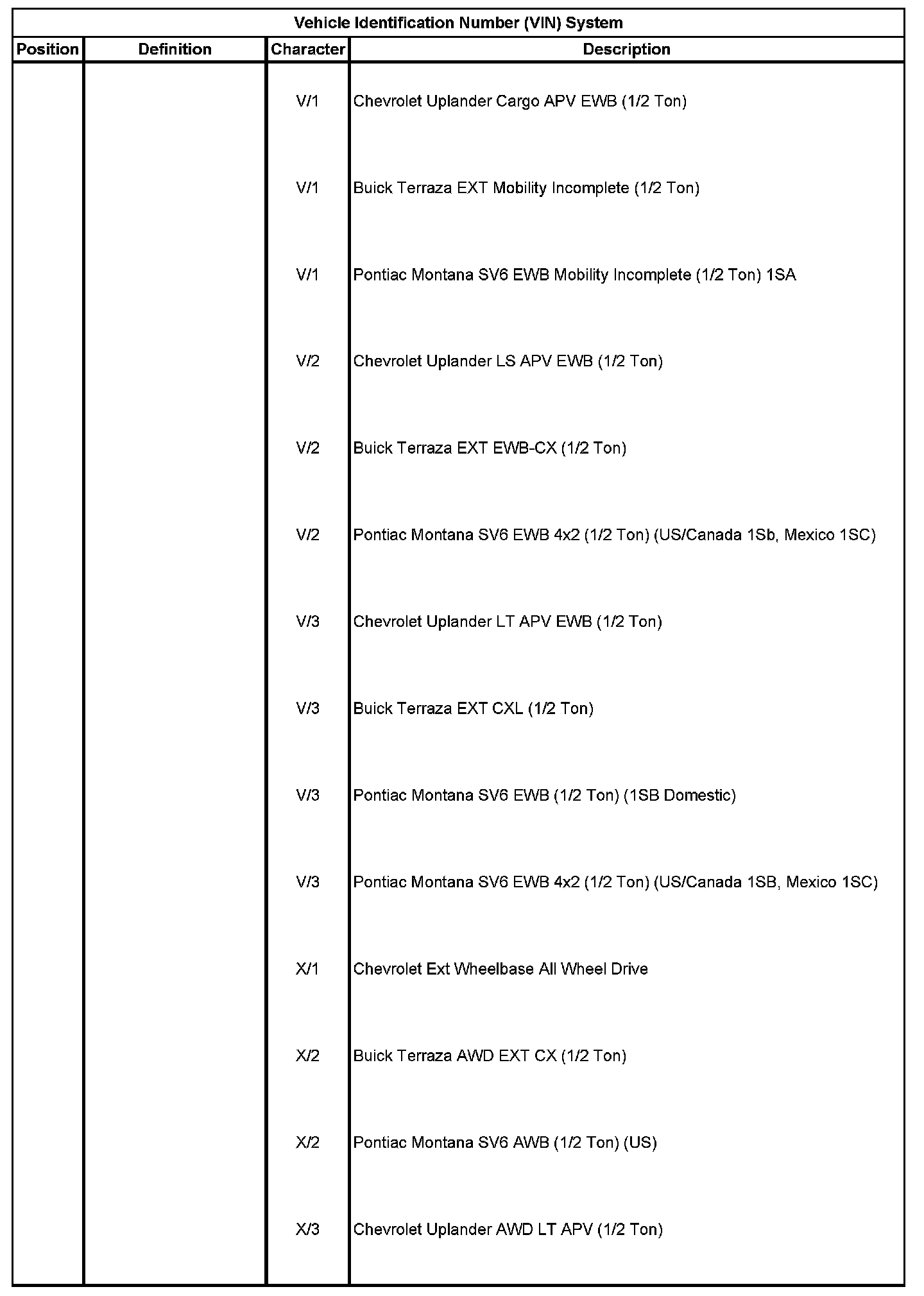

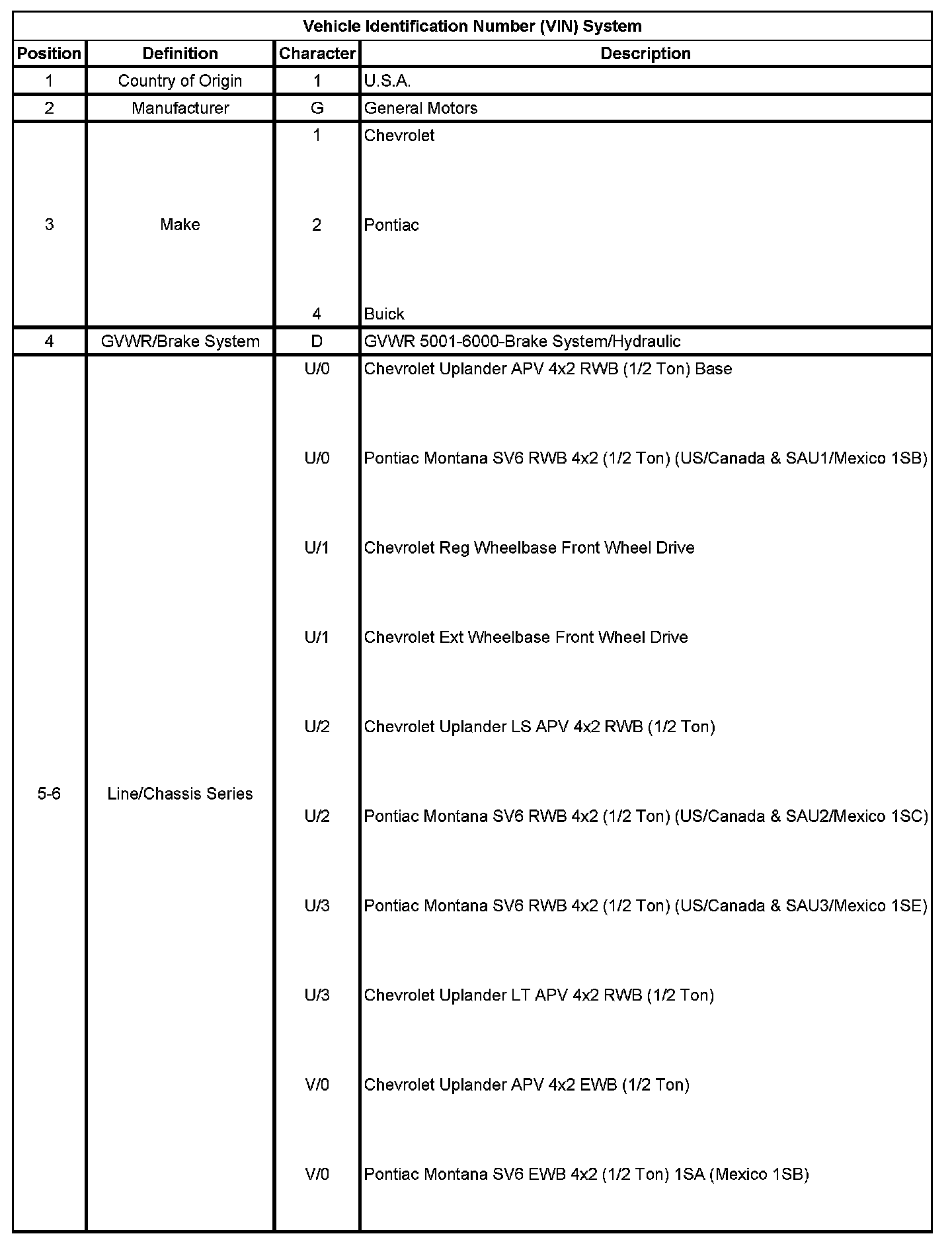

The vehicle identification number (VIN) plate is the legal identifier of the vehicle. The VIN plate (1) is located on the upper LH corner of the instrument panel (I/P) and can be seen through the windshield from the outside of the vehicle.












3.9L (LZ9) Engine ID and VIN Derivative

Refer to Engine Identification Information.

4T65-E Transmission ID and VIN Derivative

Refer to Transmission Identification Information.
