Turn Signal Switch: Diagrams

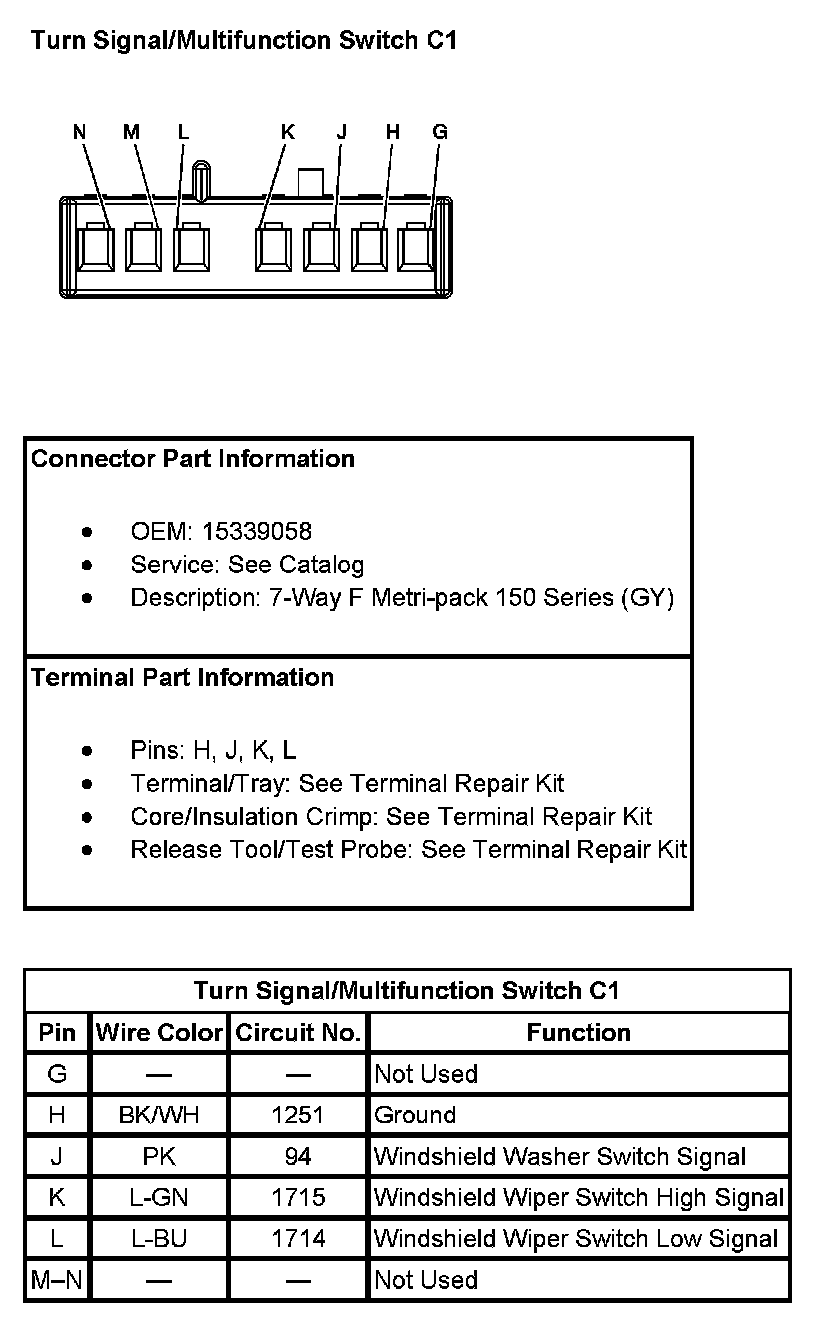

Turn Signal/Multifunction Switch C1:

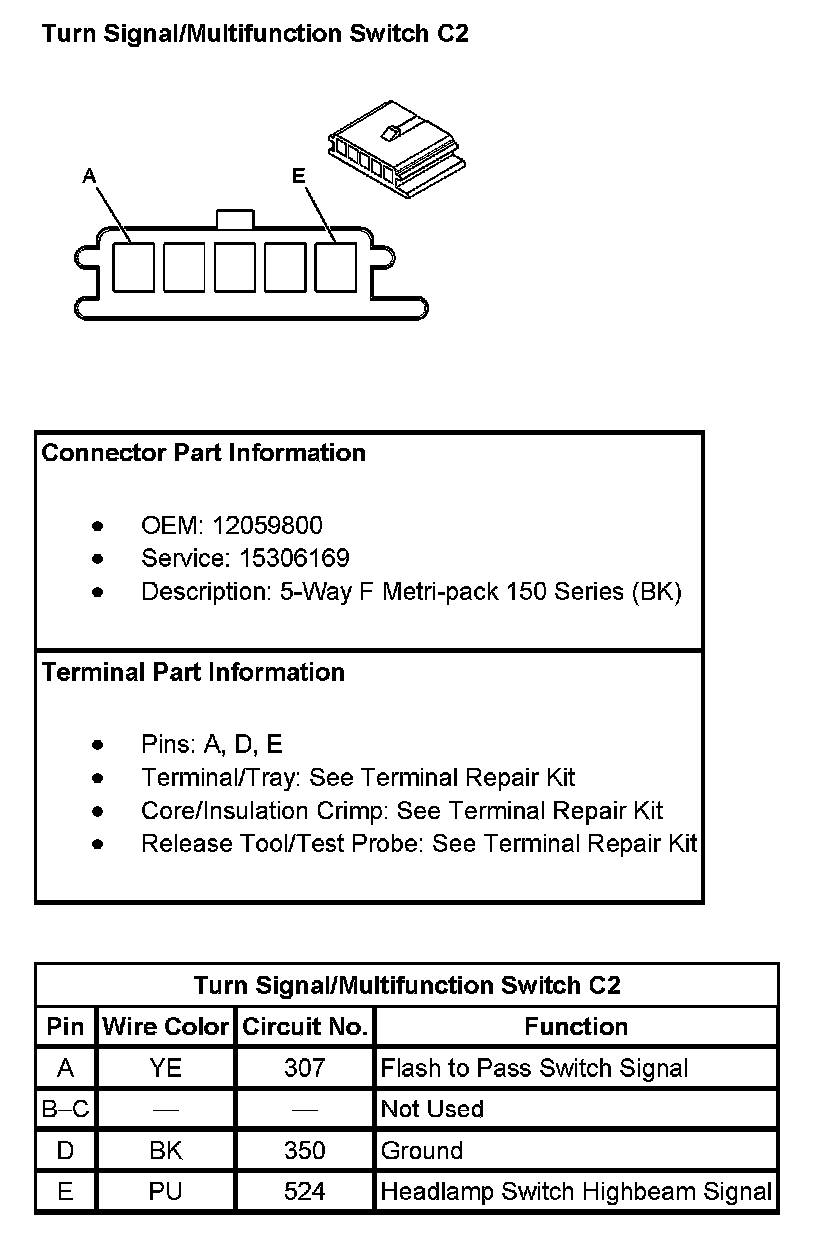

Turn Signal/Multifunction Switch C2:

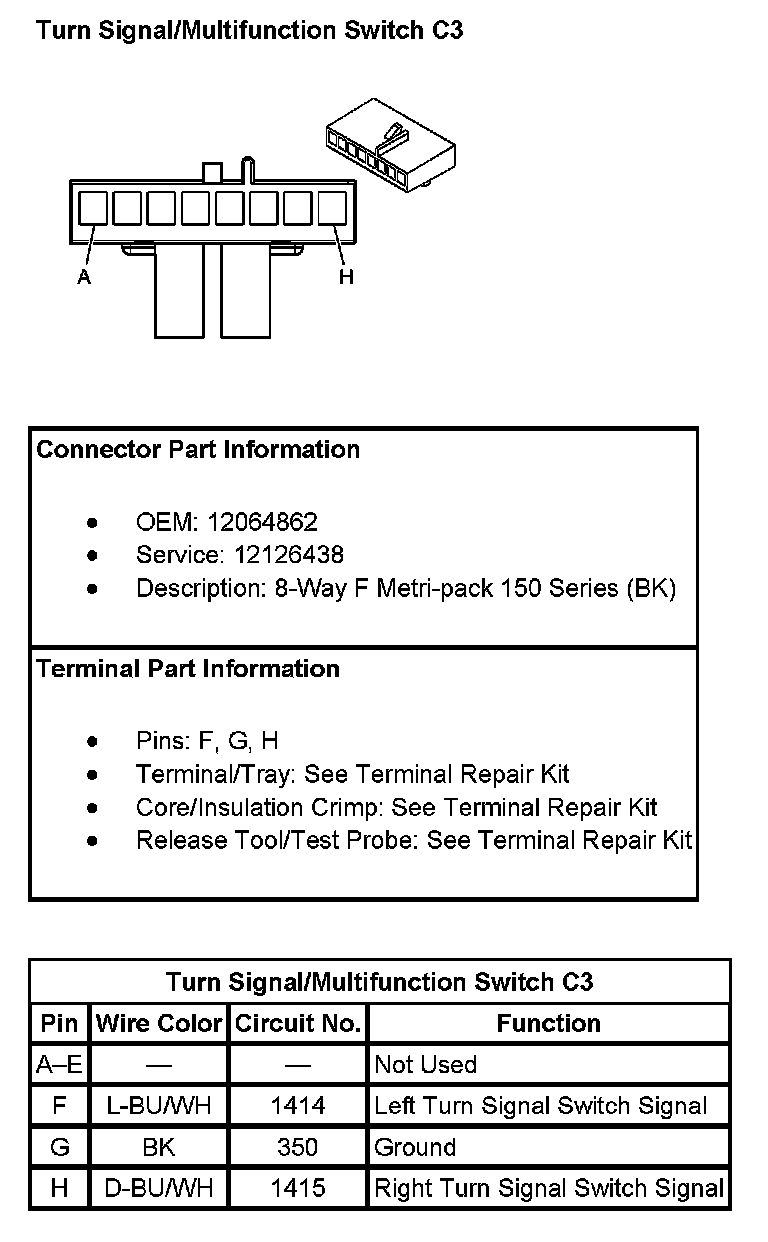

Turn Signal/Multifunction Switch C3:

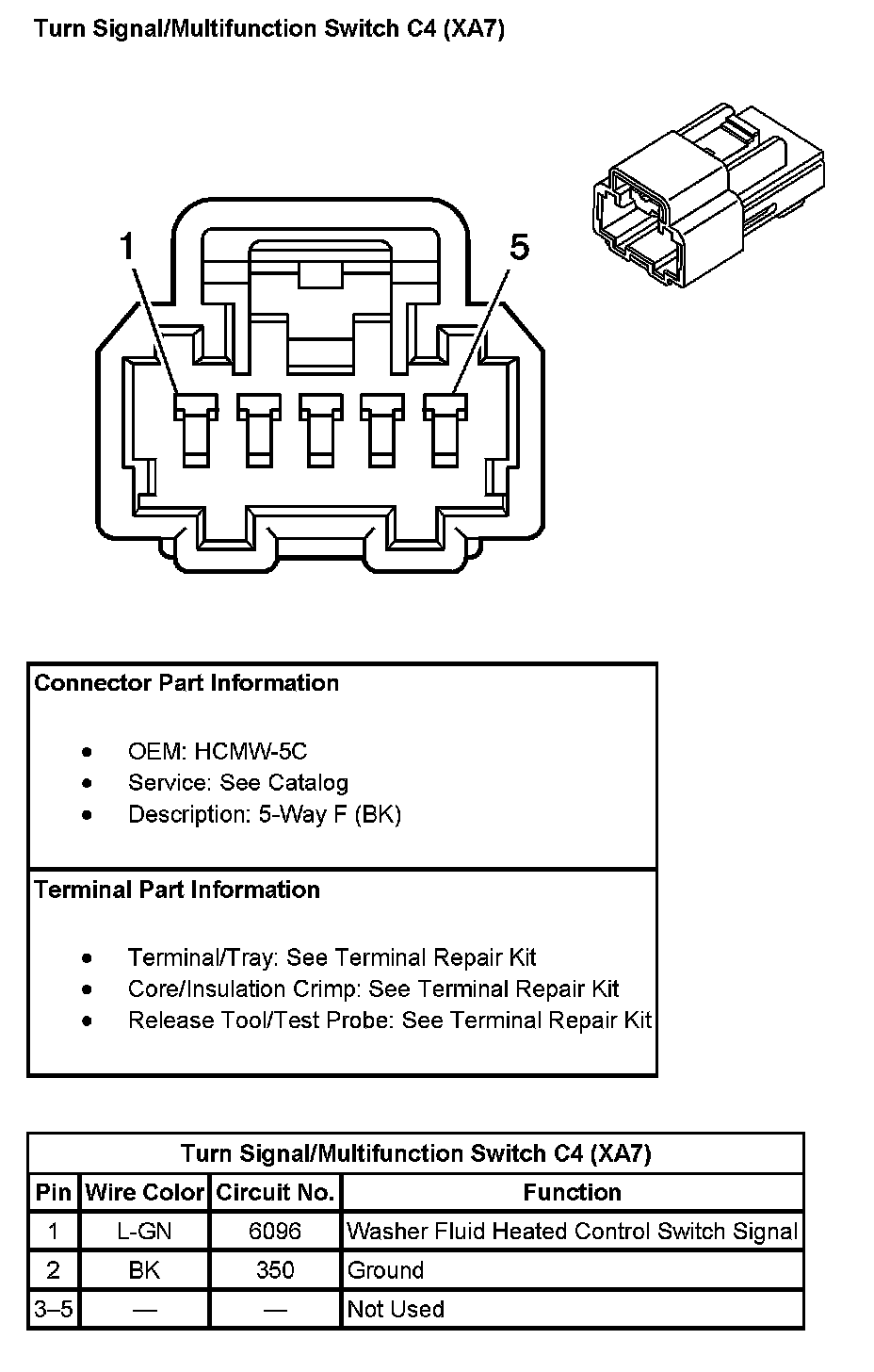

Turn Signal/Multifunction Switch C4 (With RPO Code XA7):
