Automatic Level Control Schematics

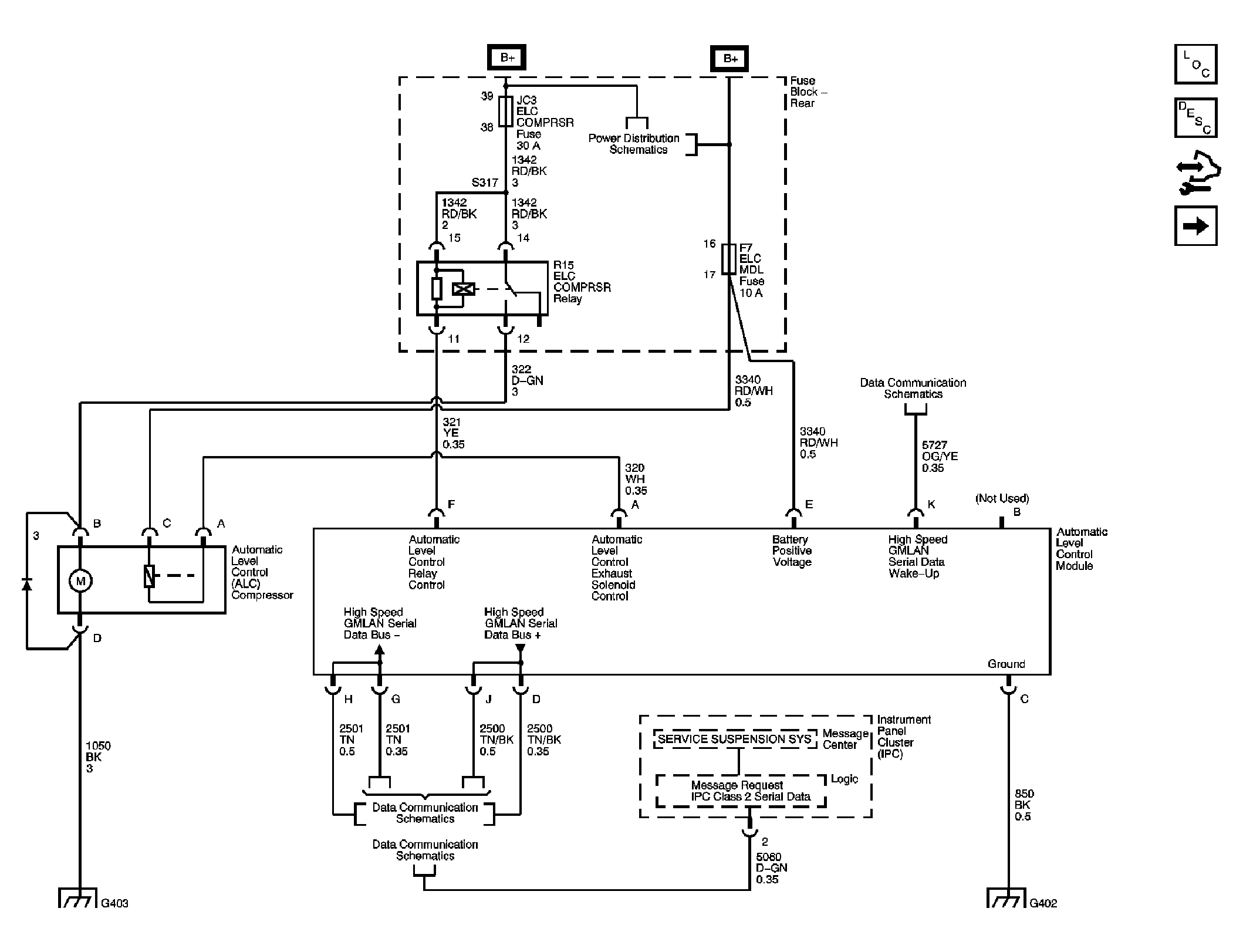

Fig 1: Automatic Level Control - FE1, FE3, F41

GM1790151

Courtesy of GENERAL MOTORS CORP.

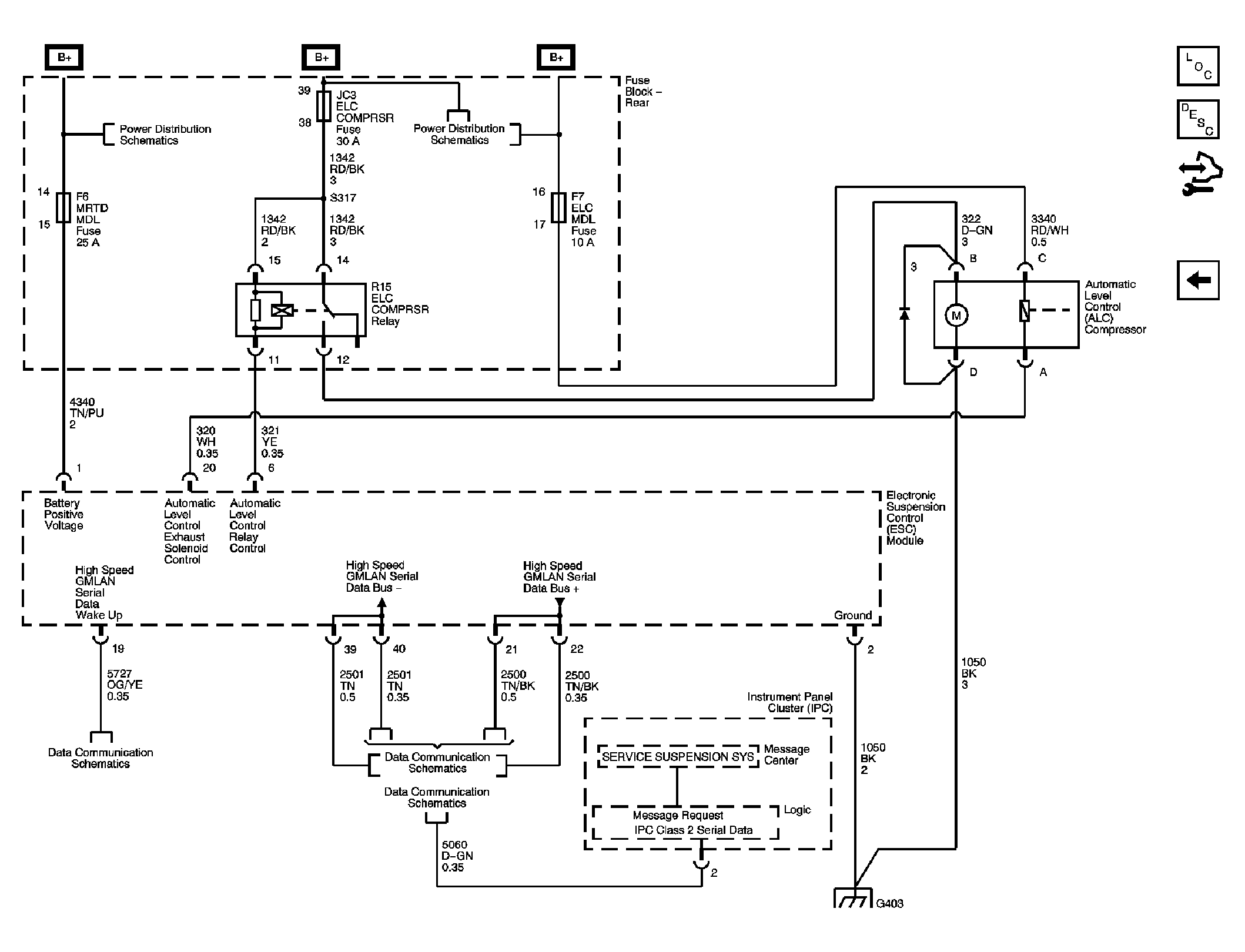

Fig 2: Automatic Level Control - w/ F55

GM1790159

Courtesy of GENERAL MOTORS CORP.
