Automatic Level Control Component Views

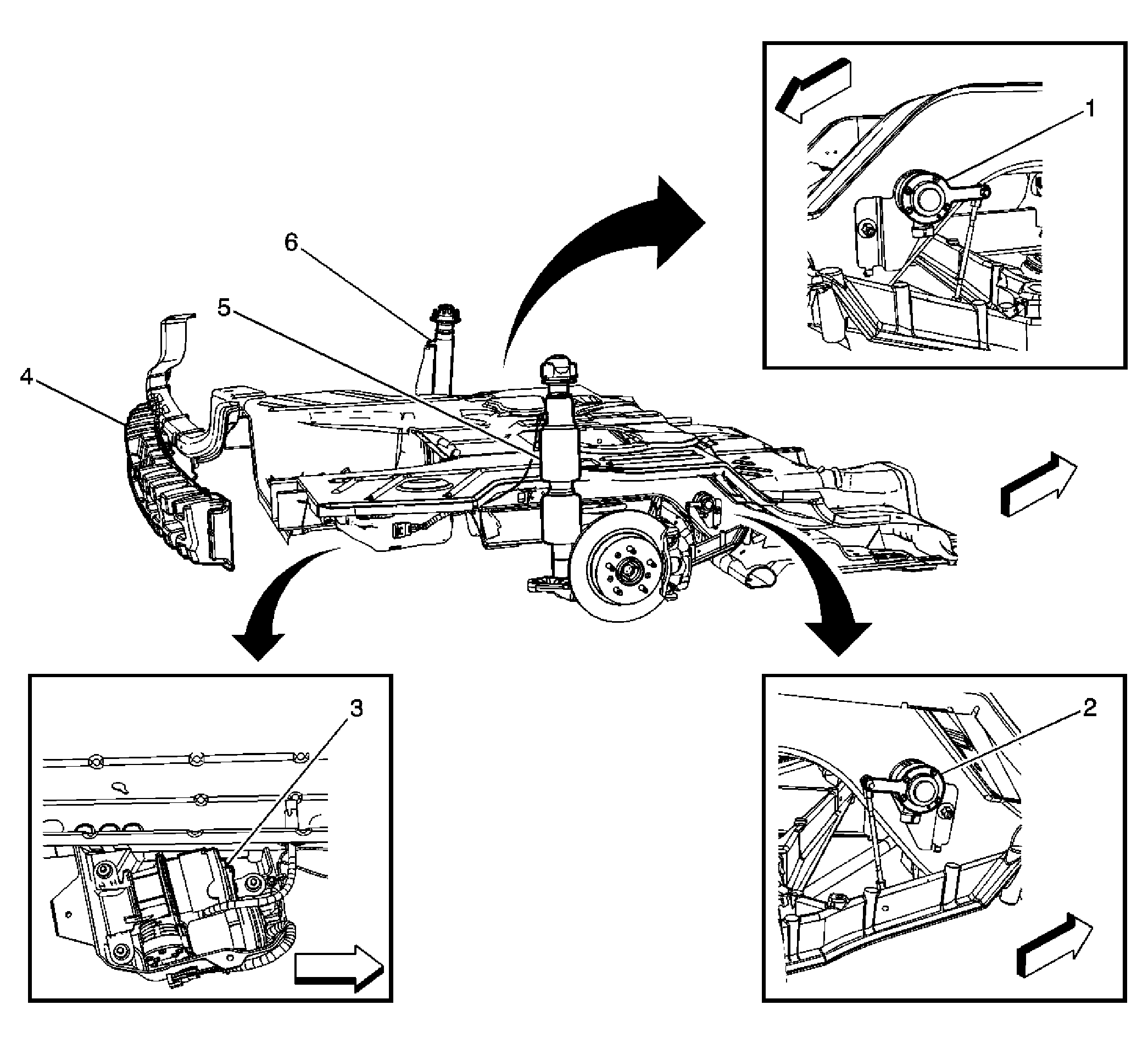

Fig 1: Rear Suspension Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Position Sensor - LR (F55)
2	Suspension Position Sensor - RR (F55)
3	Automatic Level Control (ALC) Compressor
4	Rear Bumper
5	Suspension Damper - RR (F55)
6	Suspension Damper - LR (F55)

Fig 2: Rear Axle Area

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Position Sensor - RR (F55)
2	Wheel Speed Sensor - RR
3	Body Harness
4	Wheel Speed Sensor - LR
5	Suspension Position Sensor - LR (F55), Automatic Level Control Module (FE1, FE3, F41)
6	C308 Rear Wheel Speed Harness to Chassis Harness
7	Rear Wheel Speed Harness
