SIR Schematics

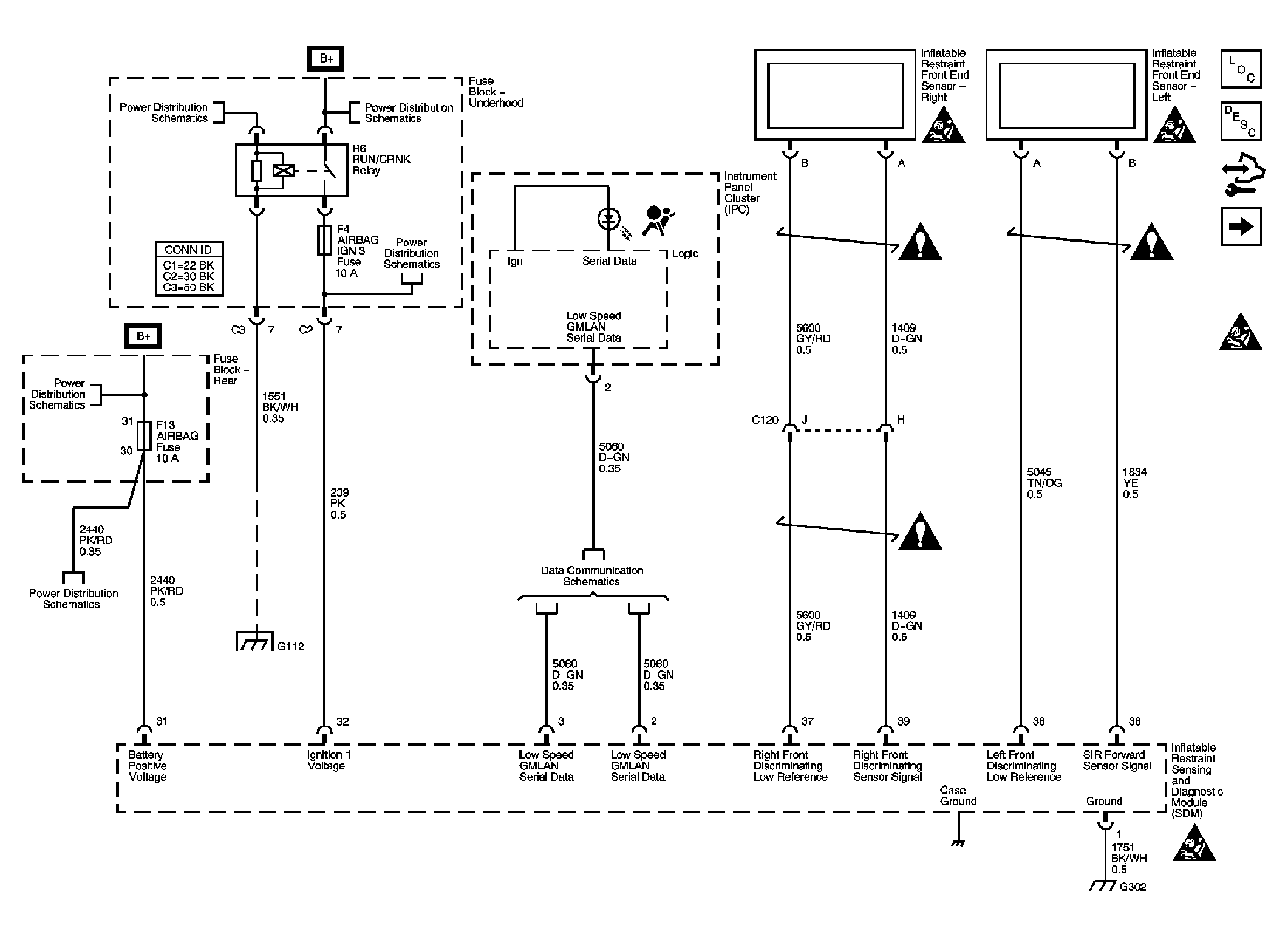

Fig 1: Indicators, Power, Ground, Front End Sensors
GM1792464Courtesy of GENERAL MOTORS CORP.

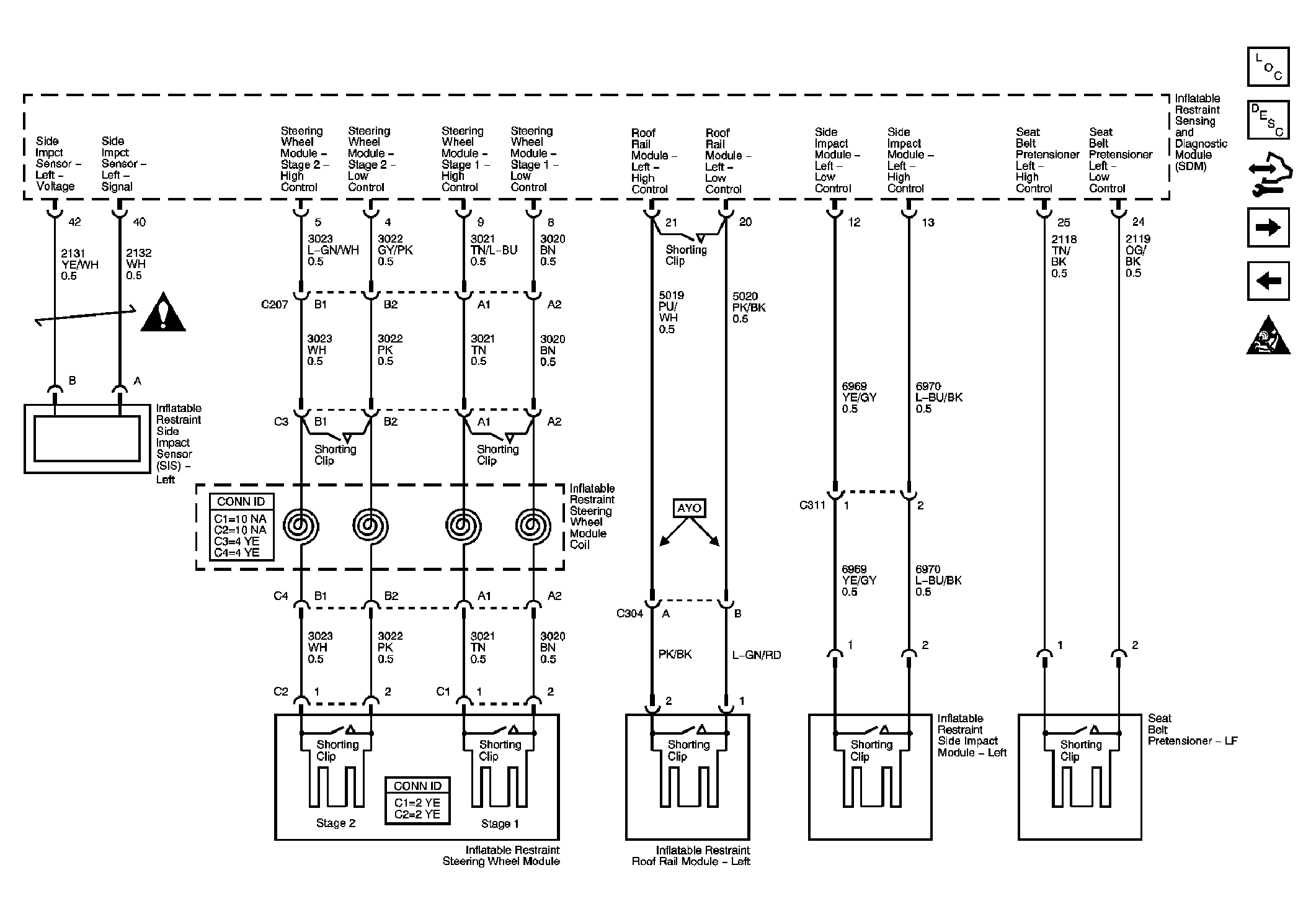

Fig 2: Left Side Impact Sensor and Module, Roof Rail Module, Steering Module, Pretensioner
GM1792475Courtesy of GENERAL MOTORS CORP.

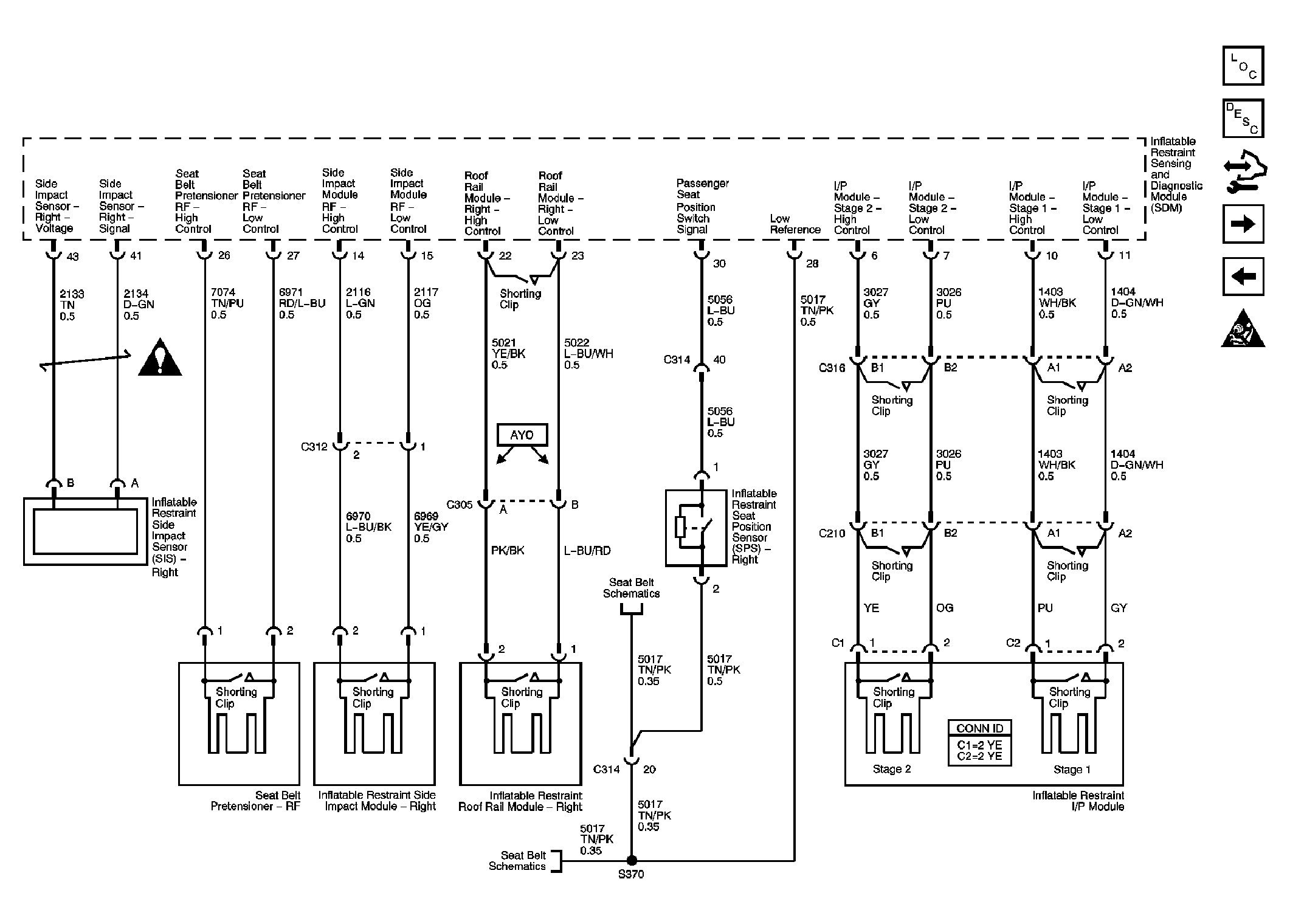

Fig 3: Right Side Impact Sensor and Module, Roof Rail Module, I/P Module, Pretensioner
GM1792479Courtesy of GENERAL MOTORS CORP.

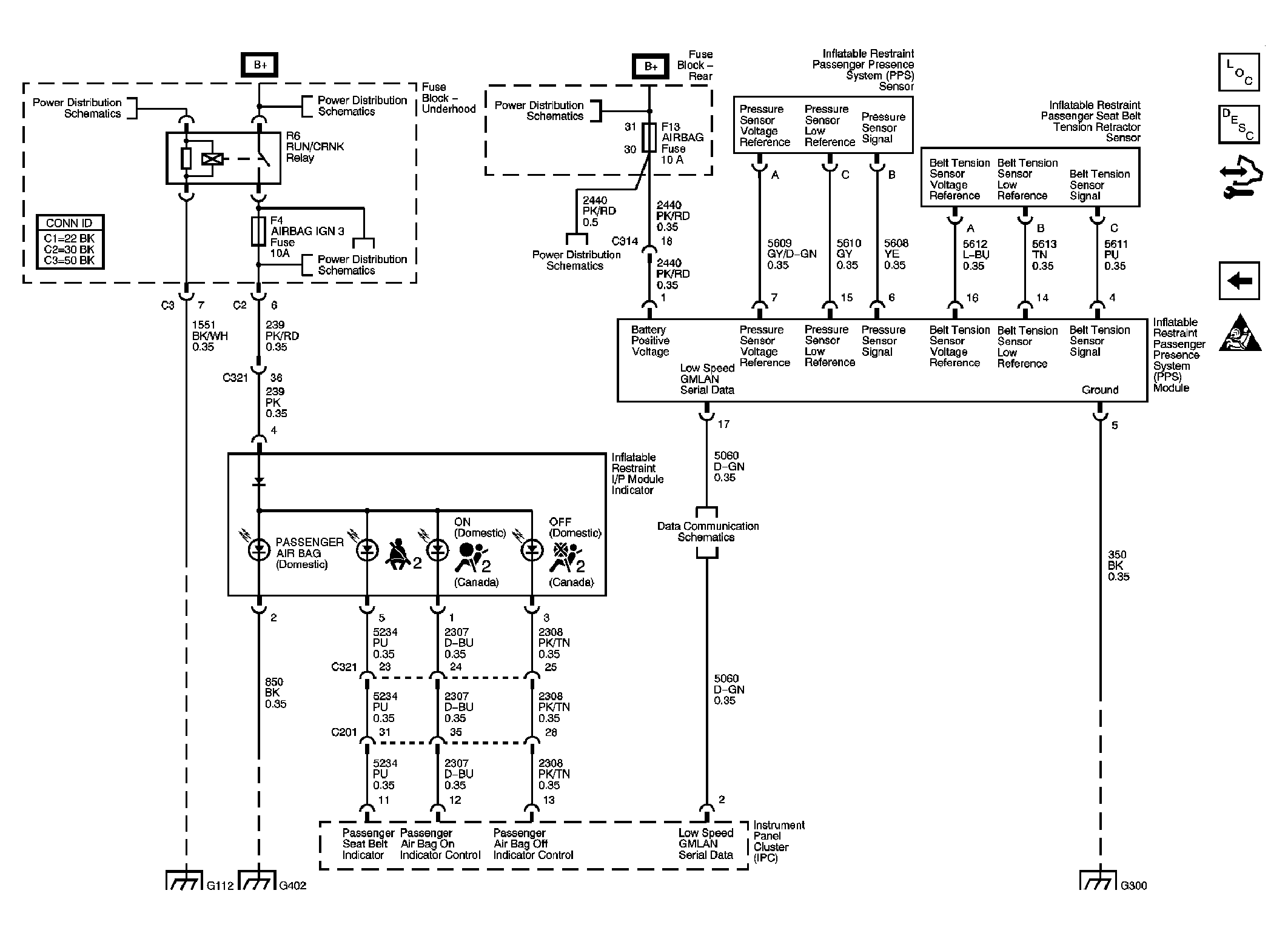

Fig 4: Passenger Presence System (PPS)
GM1792483Courtesy of GENERAL MOTORS CORP.
