SIR Component Views

Fig 1: Front of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Left
2	Cooling Fan - Left
3	Cooling Fan - Right
4	Inflatable Restraint Front End Sensor - Right

Fig 2: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Steering Wheel Control Switch-Left
2	Horn Switches
3	Steering Wheel Control Switch-Right
4	Horn Switches
5	Ignition Switch
6	Theft Deterrent Module (TDM)
7	Ignition Lock Cylinder Solenoid (A51)
8	Steering Angle Sensor (JL4)
9	Inflatable Restraint Steering Wheel Module Coil
10	Turn Signal/Multifunction Switch

Fig 3: Locating Air Bags

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Roof Rail Module - Left (AY0)
2	Inflatable Restraint I/P Module
3	Inflatable Restraint Roof Rail Module - Right (AY0)
4	Inflatable Restraint Steering Wheel Module

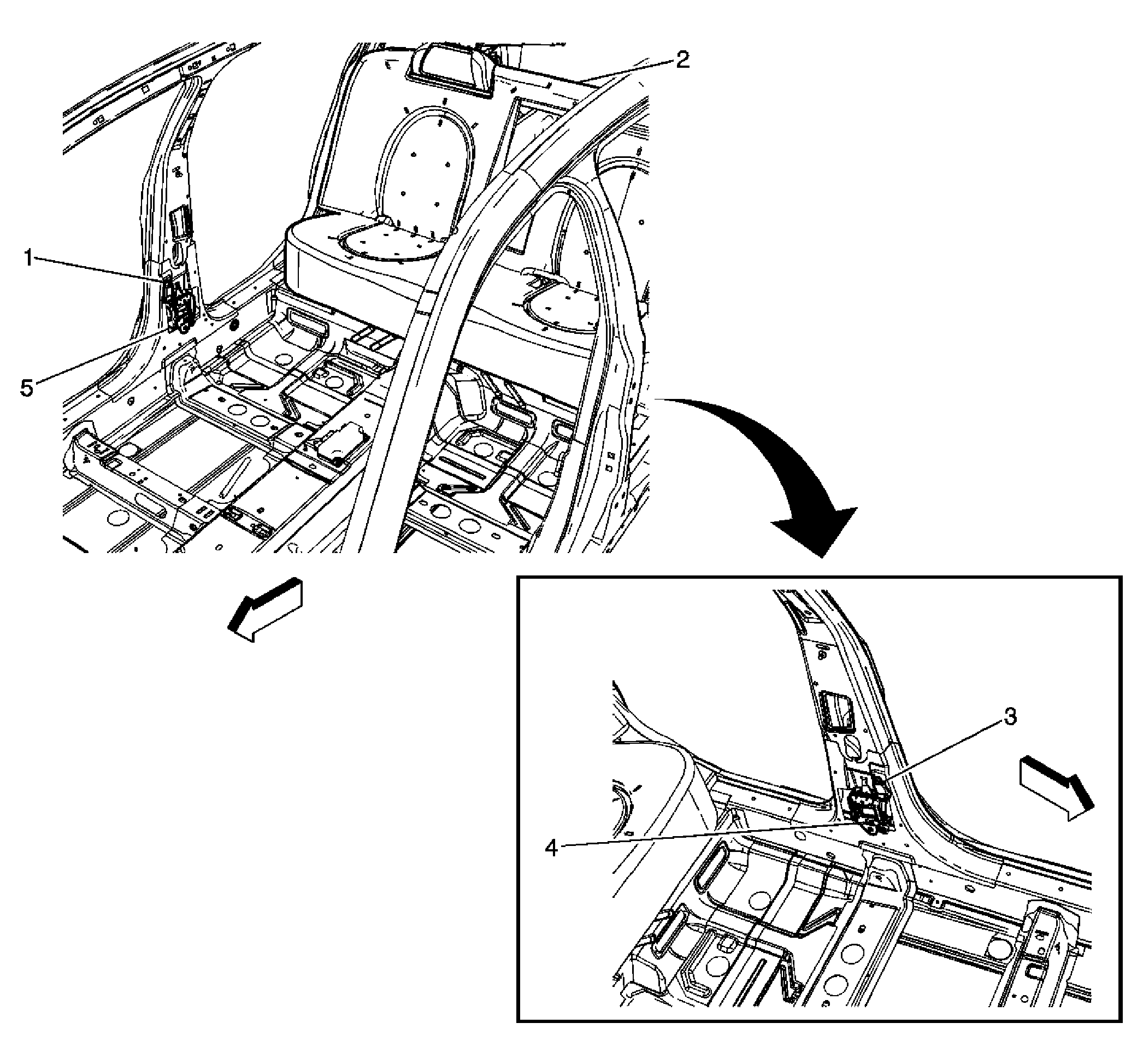

Fig 4: View Of Bottom Of B-Pillars

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Sensor - Right
2	Rear Seat
3	Inflatable Restraint Side Impact Sensor - Left
4	Seat Belt Pretensioner - LF
5	Seat Belt Pretensioner - RF

Fig 5: Overhead Console and Inside Rearview Mirror Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch-Open/Close (CF5)
2	Cellular Microphone (UE1, U3U)
3	Garage Door Opener Buttons (UG1)
4	Cellular Microphone (UE1, U3U)
5	Sunroof Switch-Vent (CF5)
6	Courtesy Lamp-Overhead Console-Right
7	Inside Rearview Mirror
8	Courtesy Lamp Switch-Right
9	Cellular Microphone (UE1, U3U)
10	Garage Door Opener Transmitter (UG1)
11	Cellular Microphone (UE1, U3U)
12	Courtesy Lamp Switch-Left
13	Onstar Button Assembly
14	Inflatable Restraint I/P Module Indicator
15	Courtesy Lamp Overhead Console-Left

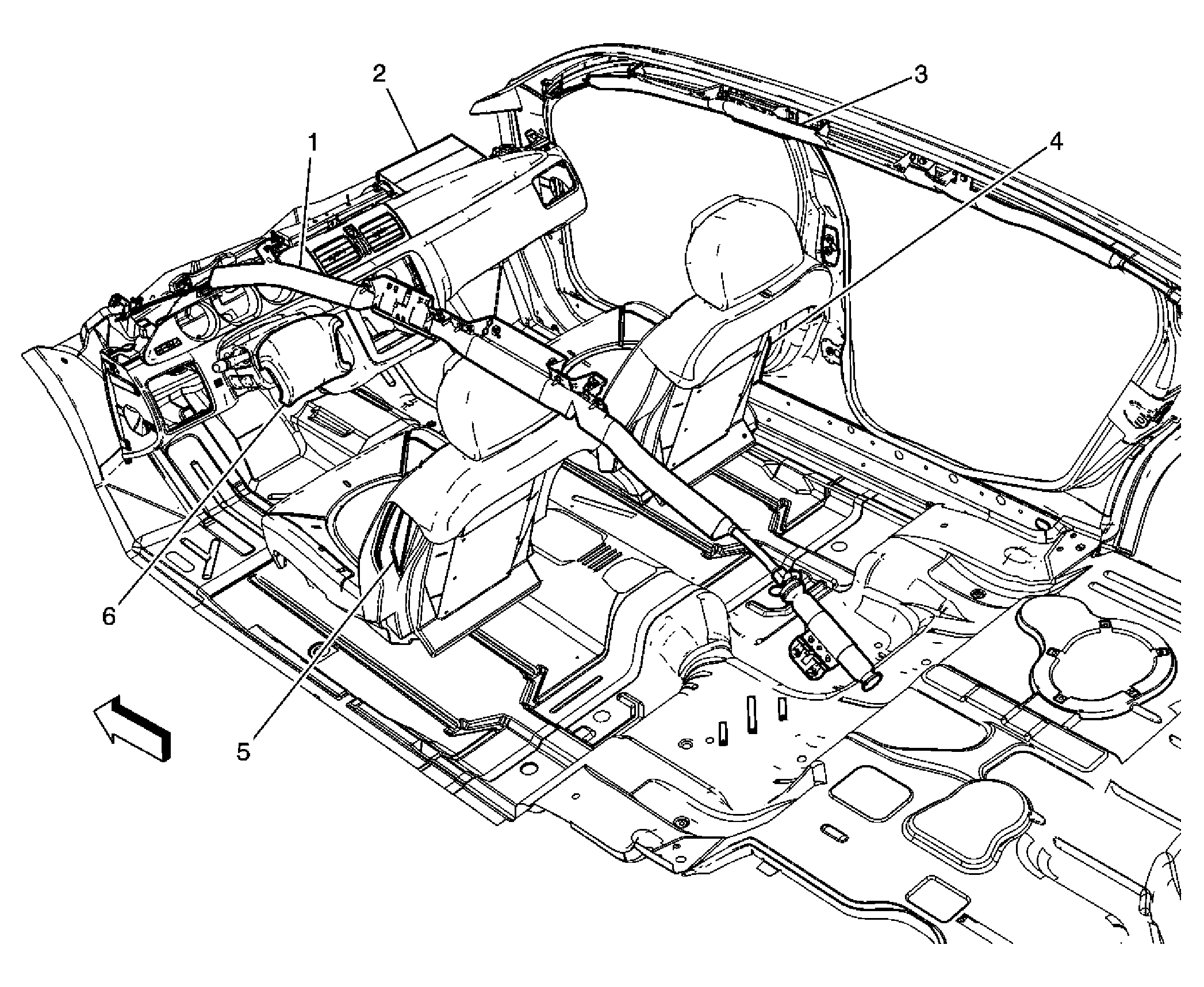

Fig 6: Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Right
2	Inflatable Restraint Passenger Presence System (PPS) Module
3	Inflatable Restraint Seat Position Sensor (SPS)-Right
4	Seat Adjuster Motor Assembly - Front Passenger (AH8)
5	Seat Adjuster Switch - Passenger (AG2, AH8)
6	Inflatable Restraint Passenger Presence System (PPS) Sensor

Fig 7: Drivers Seat (KB6)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Back Ventilation Heat & Cool Module - Driver (KB6)
2	Inflatable Restraint Side Impact Module - Left
3	Seat Lumbar Massage Motor - Driver (AM3)
4	Lumbar Adjuster Switch - Driver (AE8, A45)
5	Seat Adjuster Switch - Driver (AE8, A45)
6	Seat Adjuster Motor Assembly - Driver (AE8, A45)
7	Memory Seat Module (MSM)
8	Auxiliary Power Outlet
9	Seat Cushion Ventilation Heat & Cool Module - Driver (KB6)
10	Seat Recline Motor - Driver (AE8, A45)
11	Seat Lumbar Motor - Driver (AE8)
