Air Outlet Replacement - Side Window

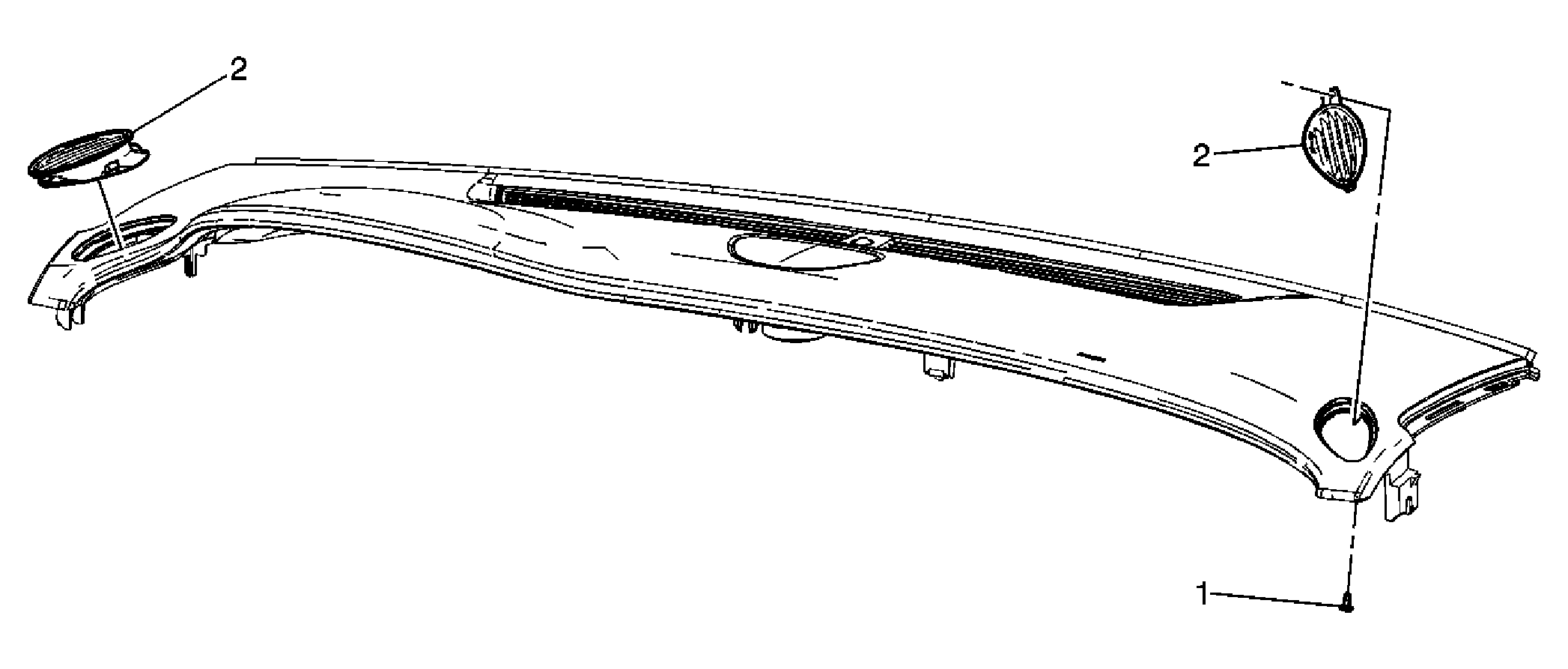

Fig 1: Identifying Side Window Air Outlet
GM1676245Courtesy of GENERAL MOTORS CORP.
Air Outlet Replacement - Side Window

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications
Preliminary Procedure:
Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Pad Replacement .
1 Grille Side Window Defogger Outlet Screw

Tighten:  1.0 N.m (9 lb in)
2 Grille Side Window Defogger Outlet
