Air Outlet Replacement - Instrument Panel - Right

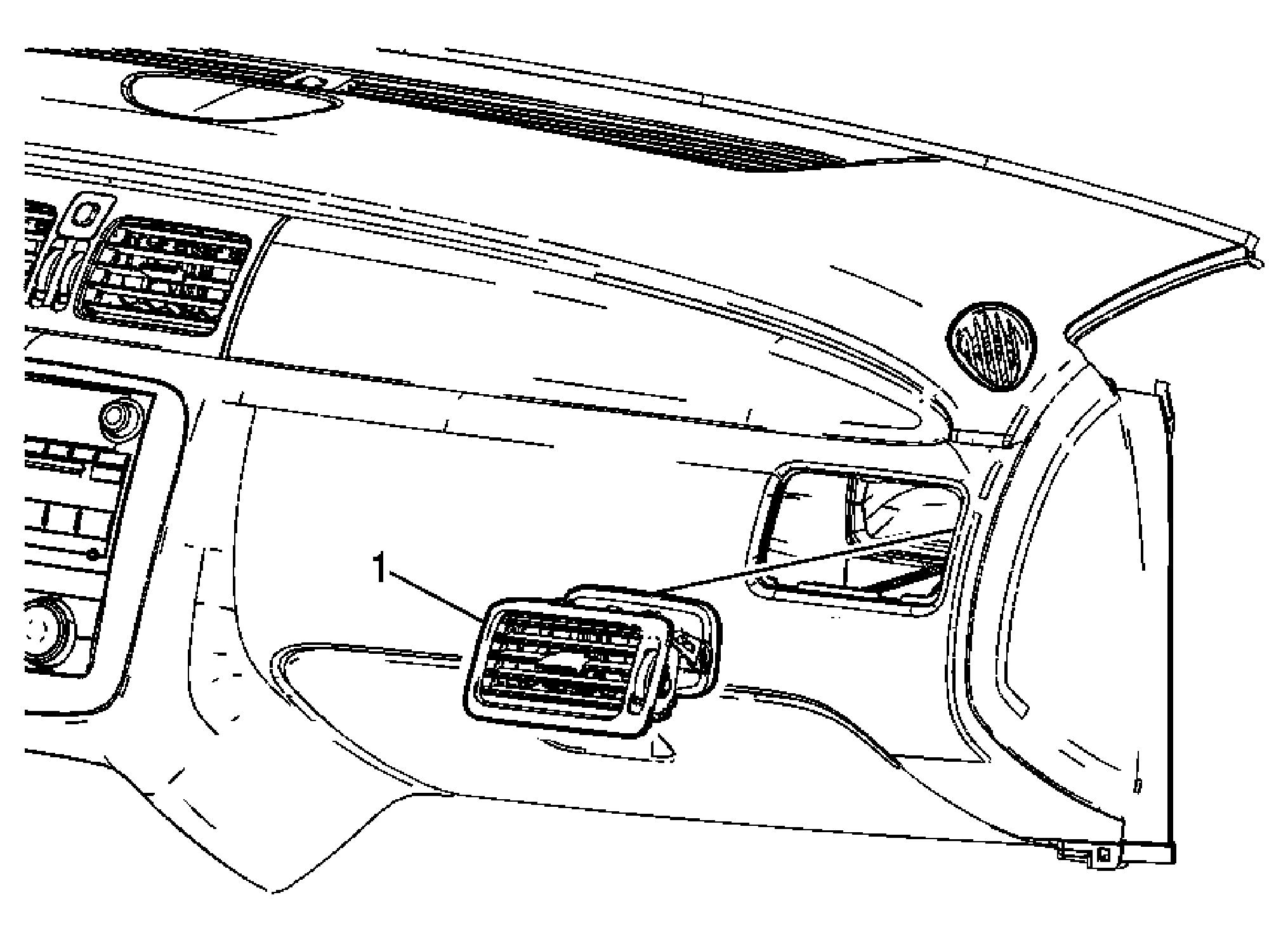

Fig 1: Identifying Instrument Panel Outer Air Outlet - Right Side

Courtesy of GENERAL MOTORS CORP.

Air Outlet Replacement - Instrument Panel - Right

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications
1	Instrument Panel Outer Air Outlet - Right Tip:  Using a flat-bladed tool release, the outer air outlet from the instrument panel.
