Air Conditioning (A/C) Refrigerant Pressure Sensor Replacement (L26)

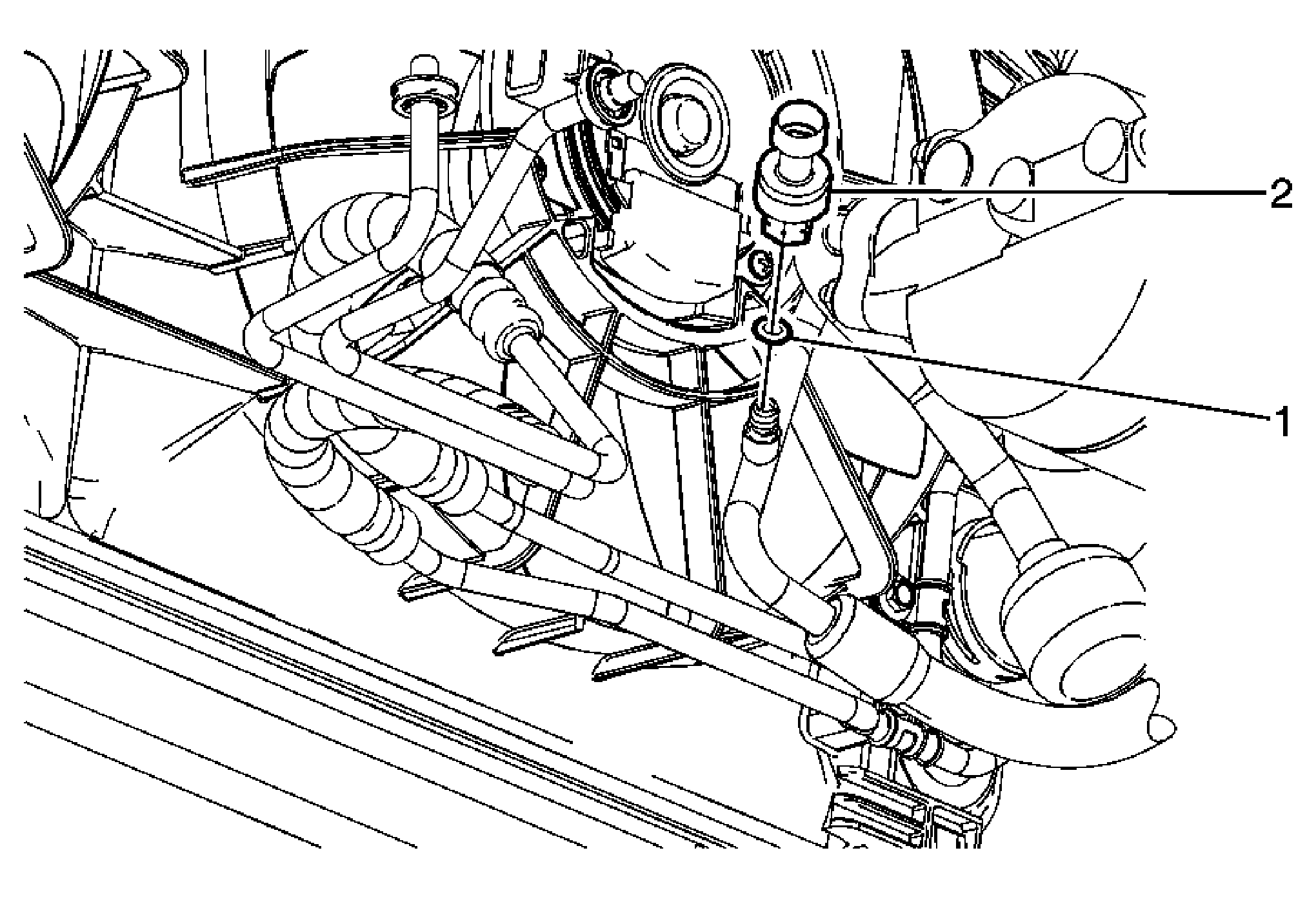

Fig 1: Locating Air Conditioning (A/C) Refrigerant Pressure Sensor (L26)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice Fastener Tightening Specifications: Refer to Fastener Tightening Specifications Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle Remove the front air deflector. Refer to Front Air Deflector Replacement Disconnect the A/C pressure sensor electrical connector.
1	O-ring Tip: Remove and discard the O-ring. Refer to O-Ring Replacement
2	A/C Refrigerant Pressure Sensor Tighten: 5 N.m (44 lb in)

Callout

Component Name

NOTE: Refer to Fastener Notice

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications

Preliminary Procedure

O-ring
Tip: Remove and discard the O-ring. Refer to O-Ring Replacement

A/C Refrigerant Pressure Sensor

Tighten: 5 N.m (44 lb in)
