HVAC Schematics

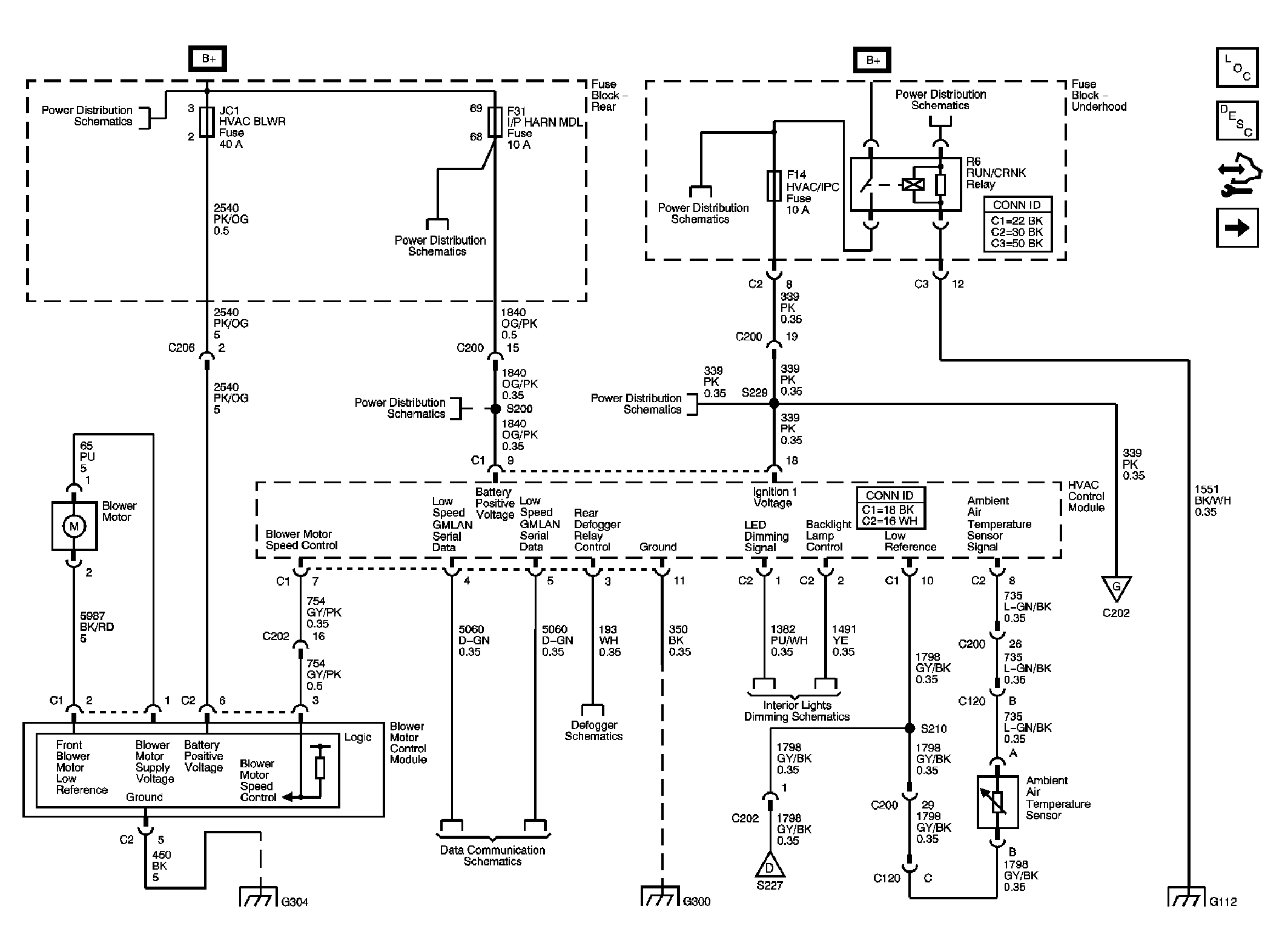

Fig 1: Power, Ground, Blower Motor Controls
GM1789816Courtesy of GENERAL MOTORS CORP.

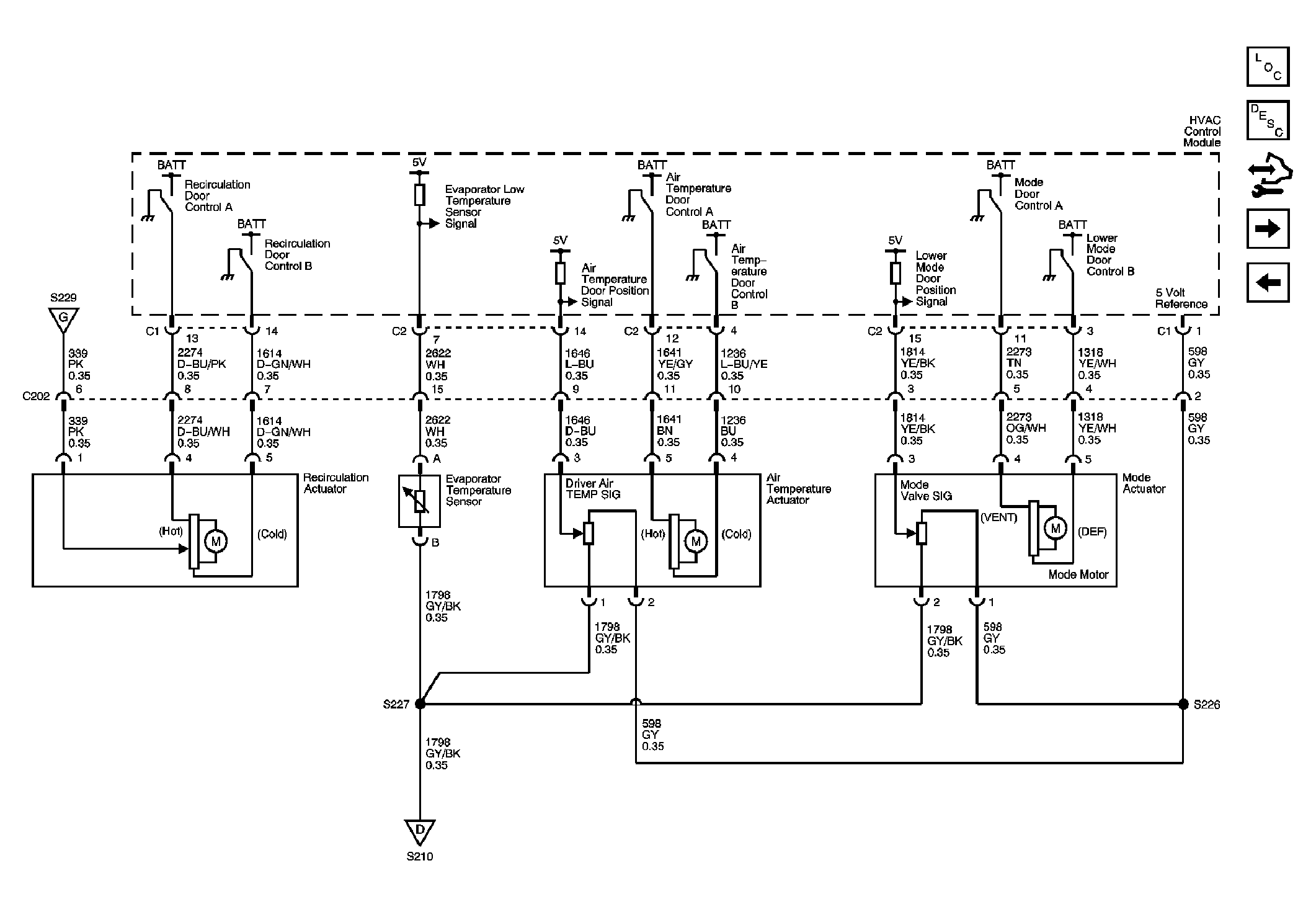

Fig 2: Mode and Air Temperature Controls
GM1789830Courtesy of GENERAL MOTORS CORP.

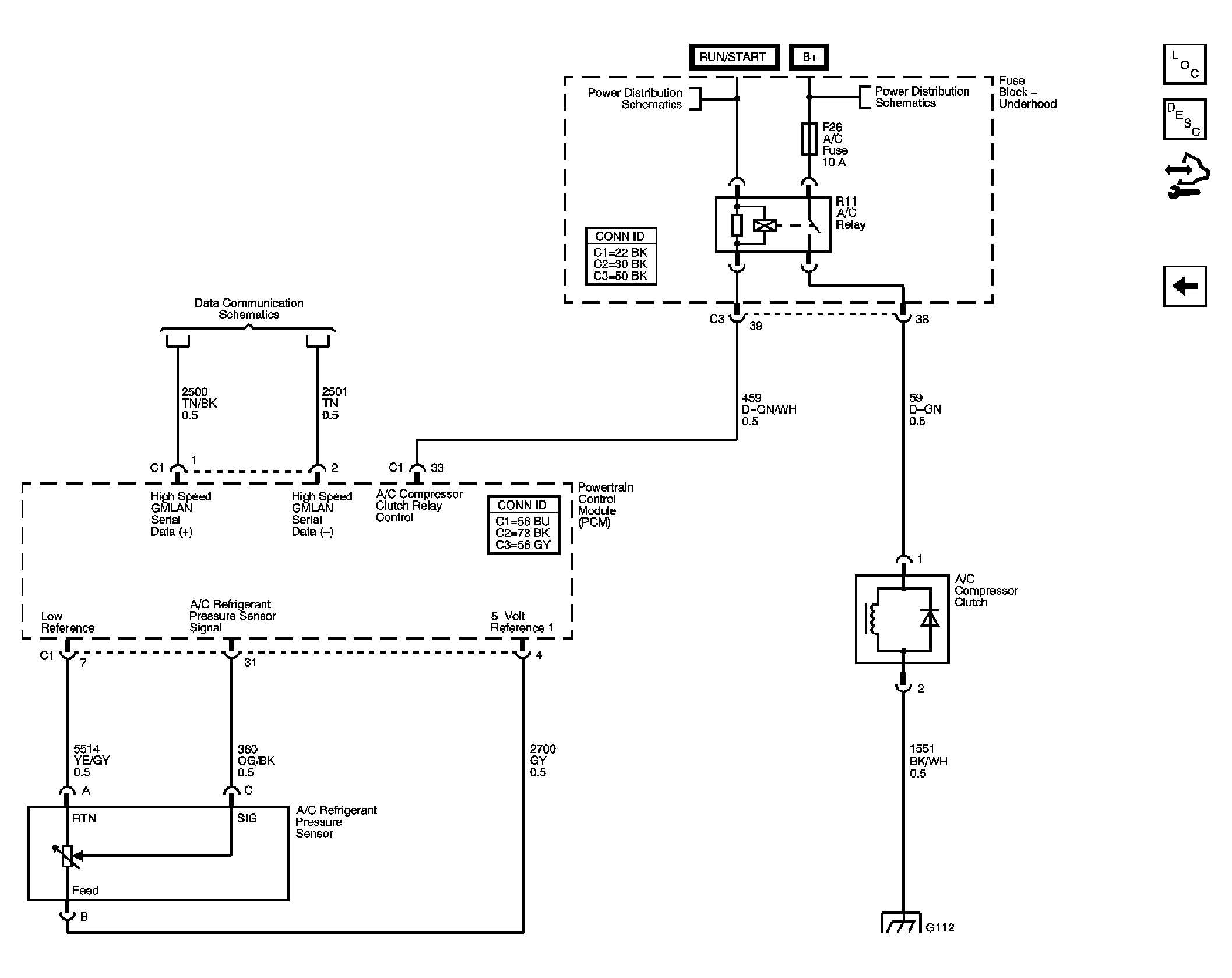

Fig 3: Compressor Controls
GM1789854Courtesy of GENERAL MOTORS CORP.
