HVAC Schematics

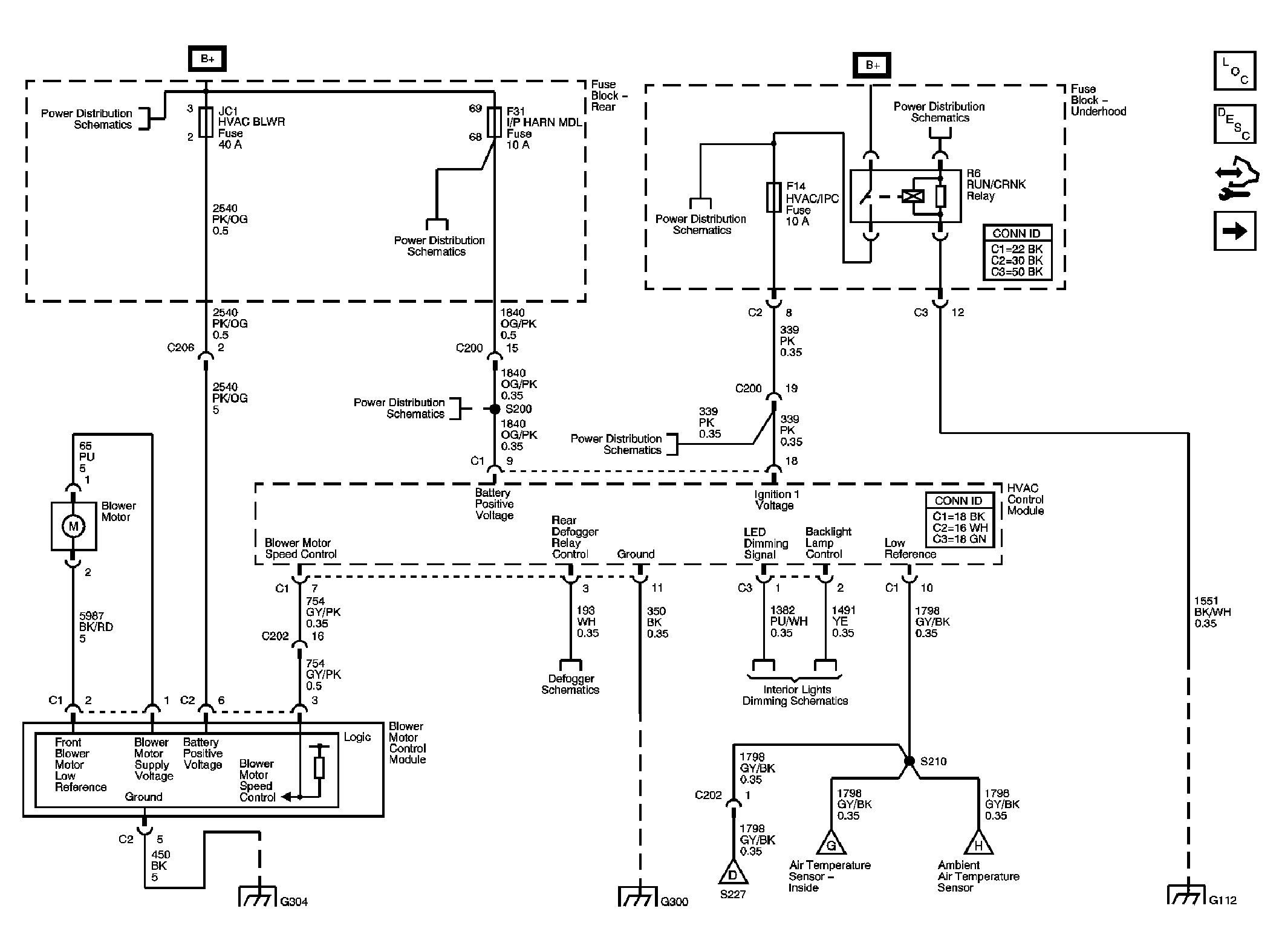

Fig 1: Power, Ground, Blower Motor Controls
GM1790017Courtesy of GENERAL MOTORS CORP.

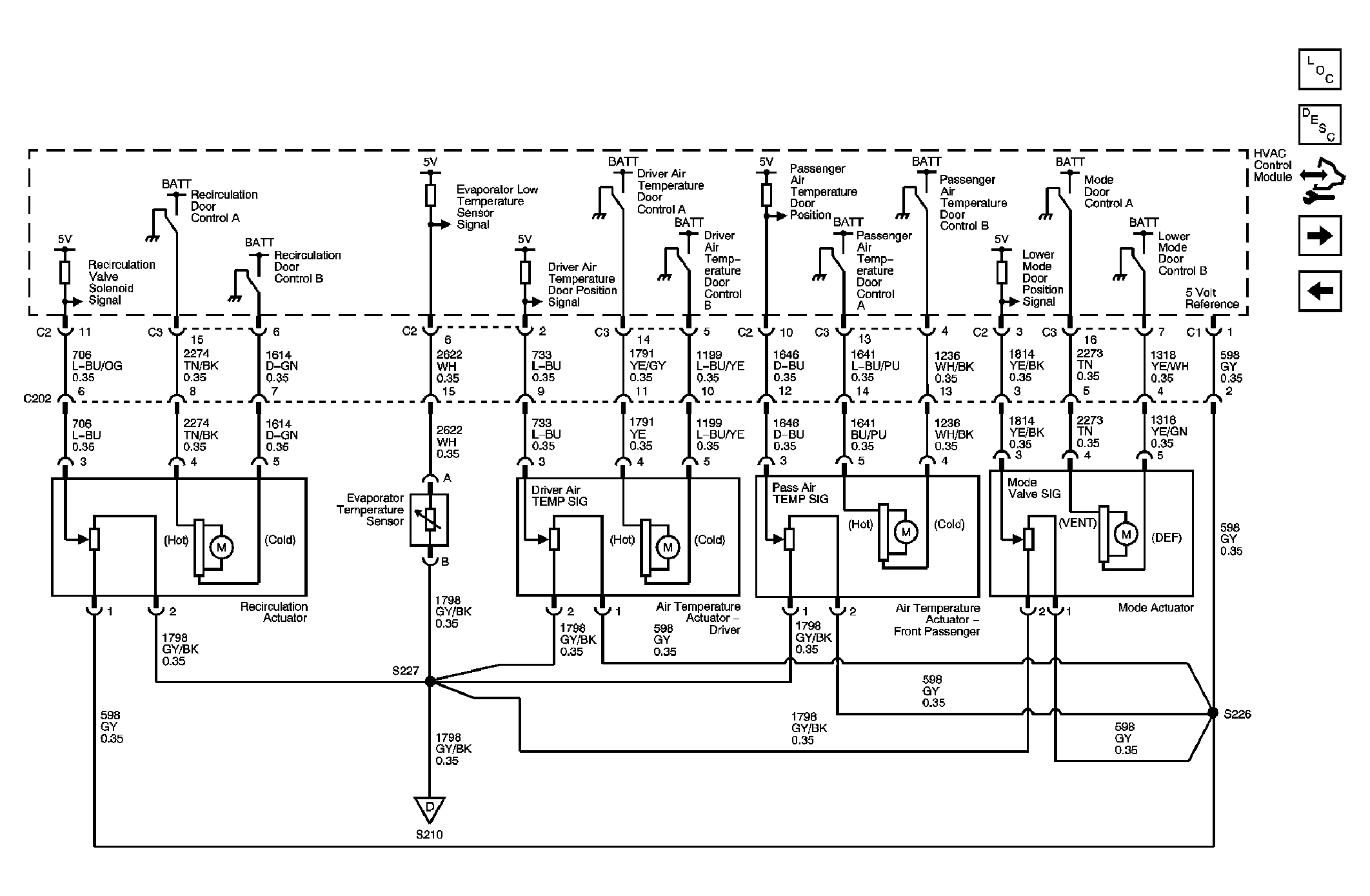

Fig 2: Mode and Air Temperature Controls
GM1790032Courtesy of GENERAL MOTORS CORP.

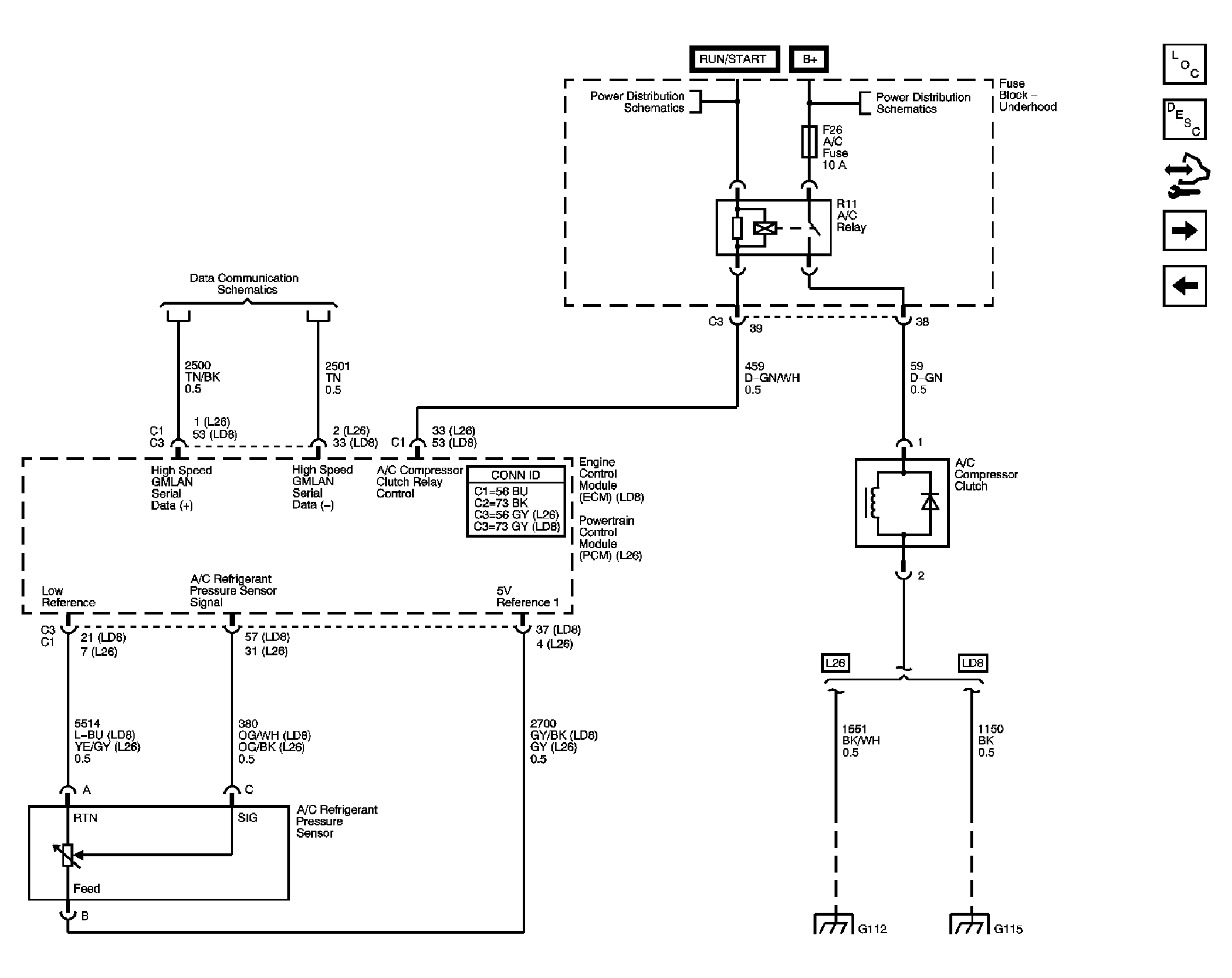

Fig 3: Compressor Controls
GM1790038Courtesy of GENERAL MOTORS CORP.

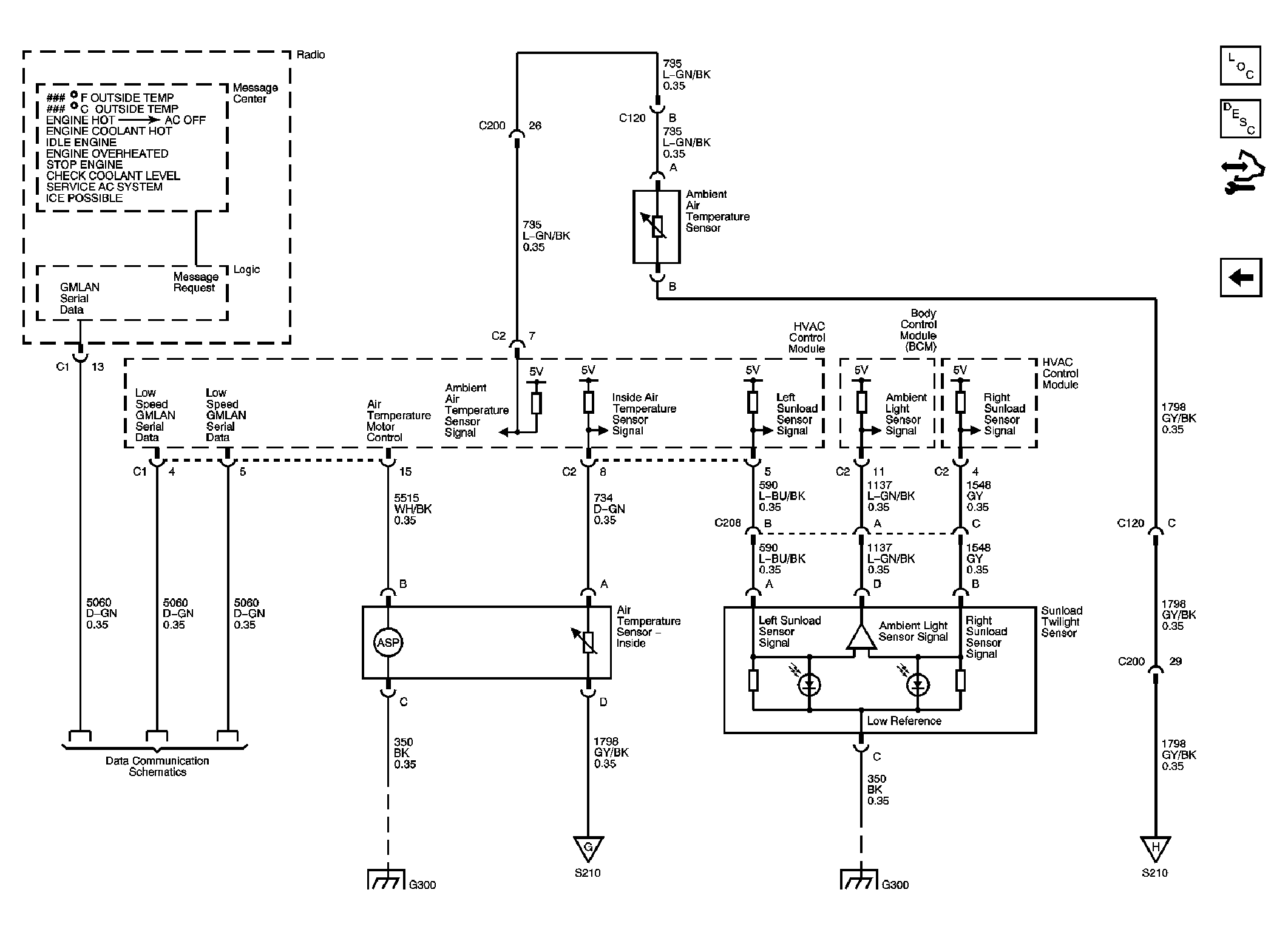

Fig 4: Air Temperature Sensors
GM1790078Courtesy of GENERAL MOTORS CORP.
